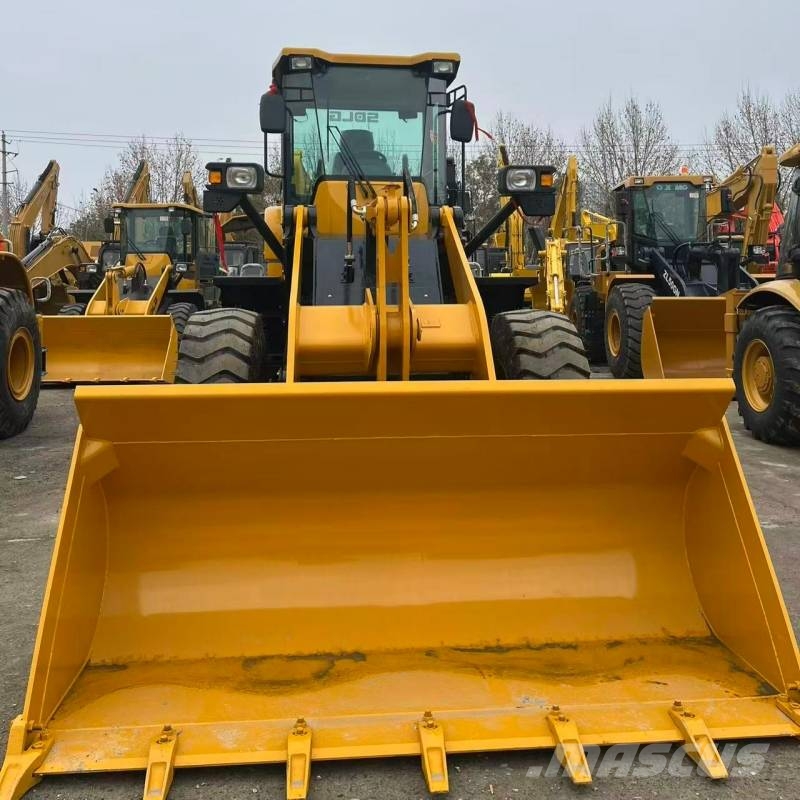

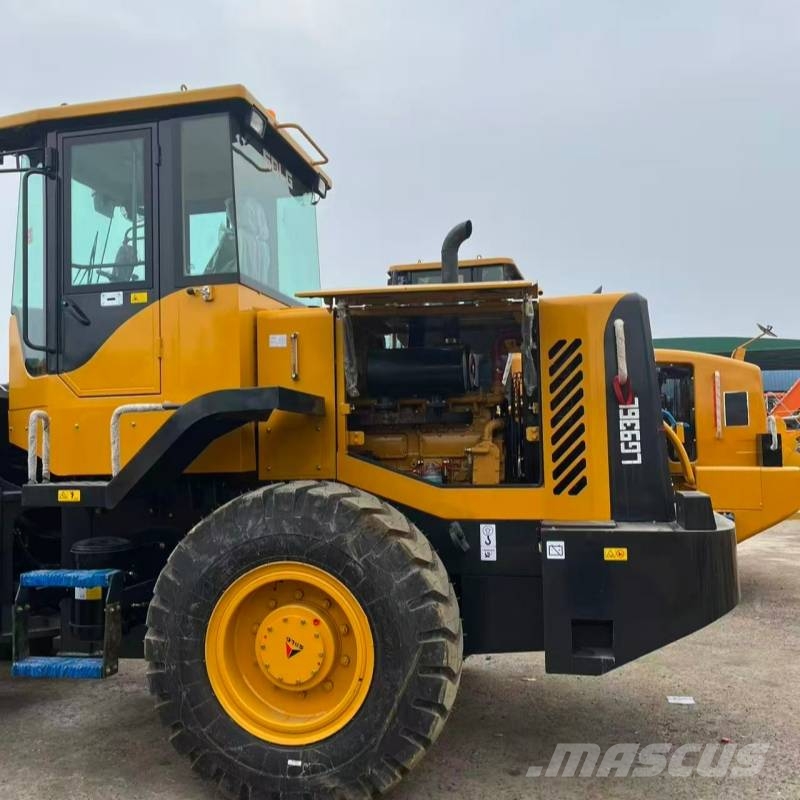

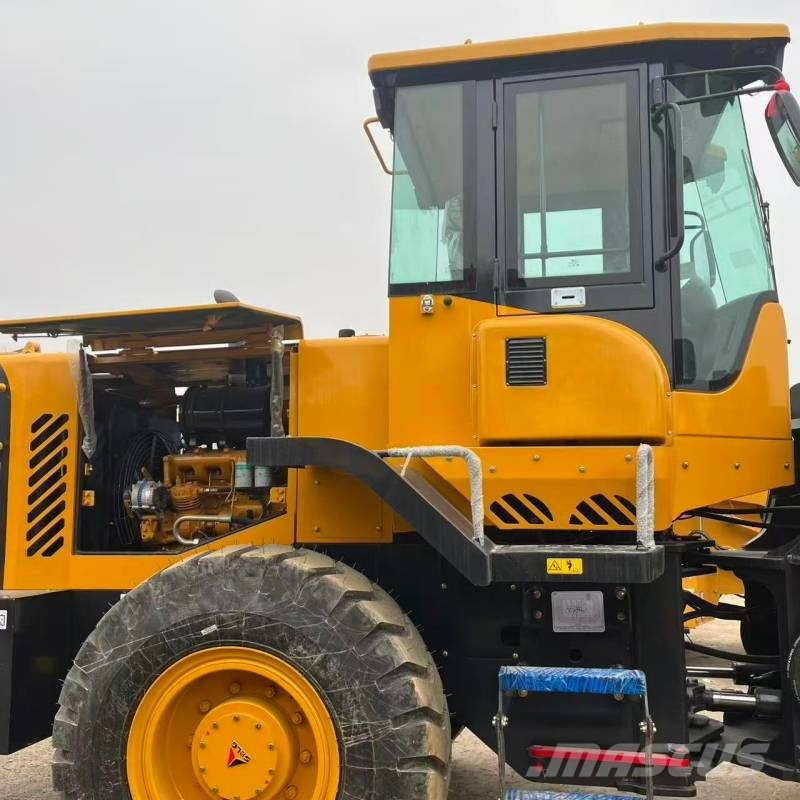

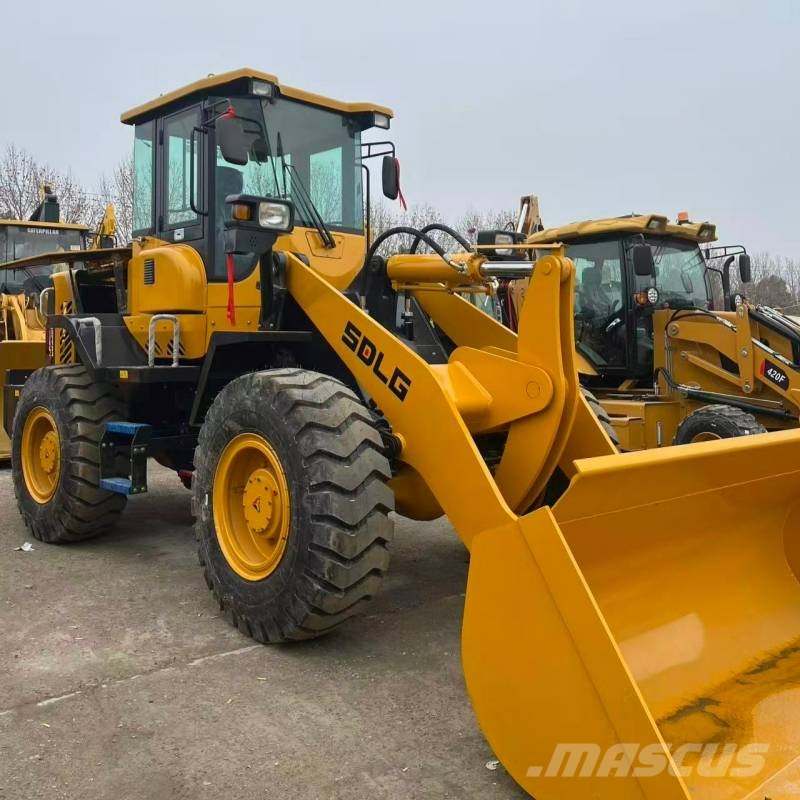

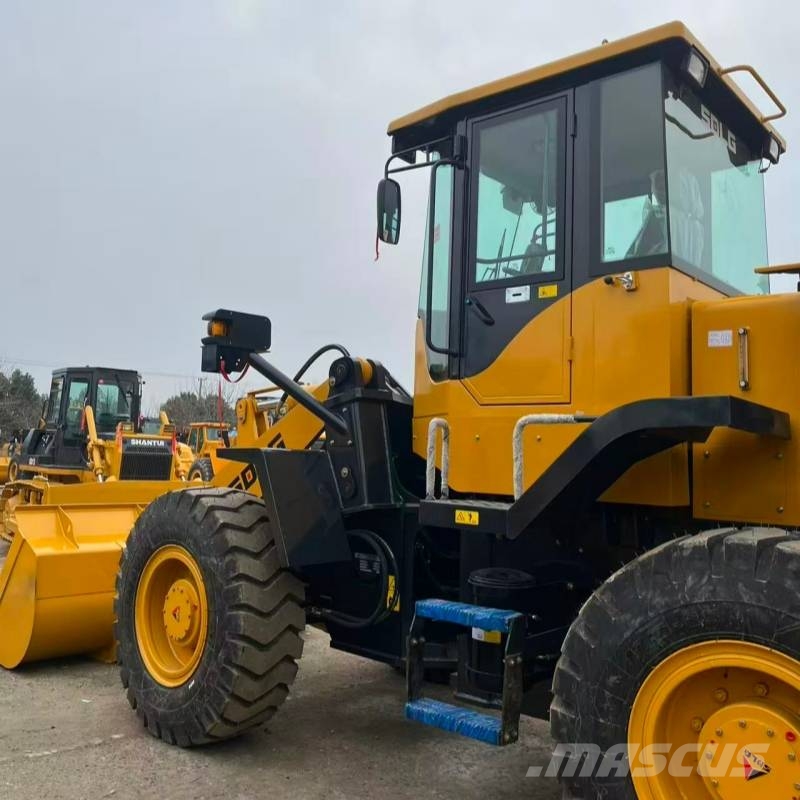

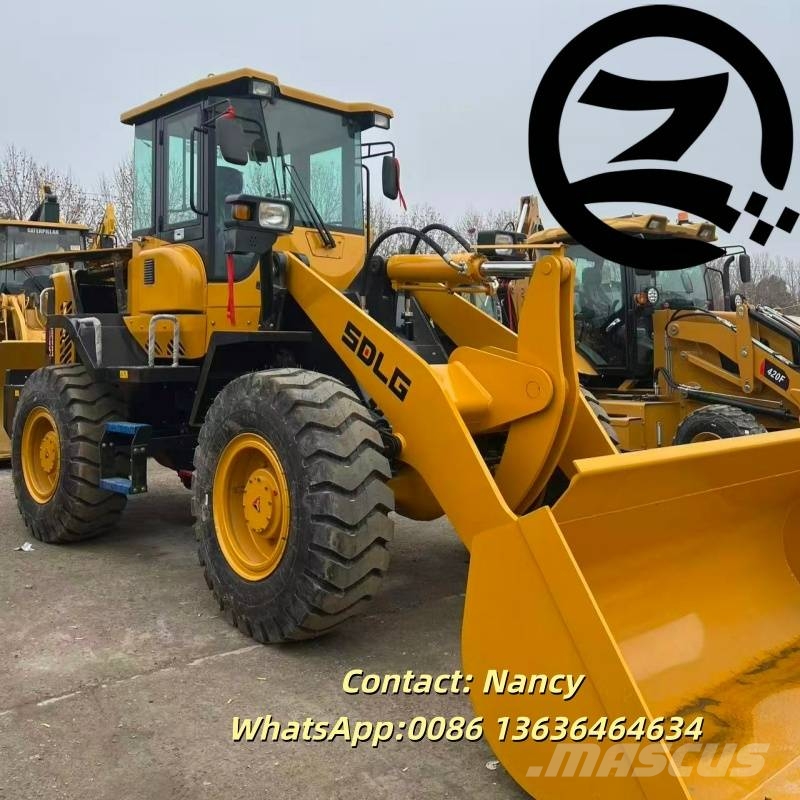

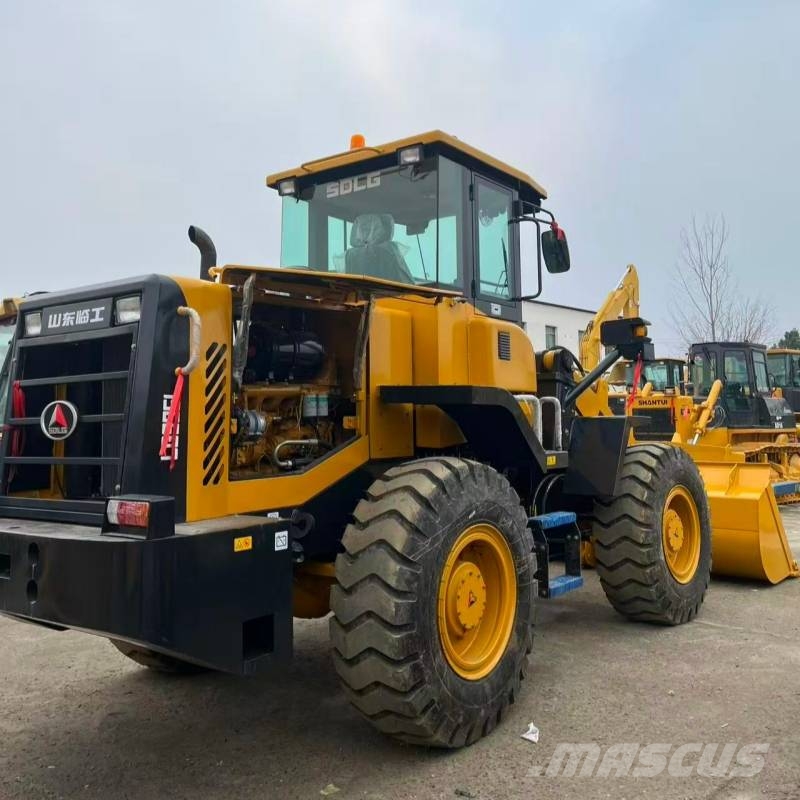

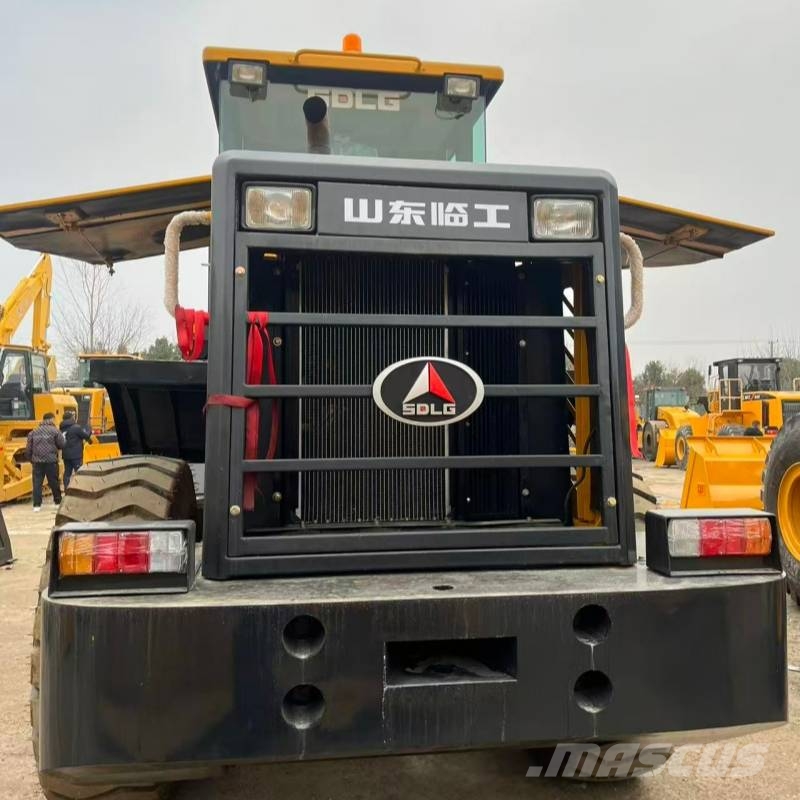

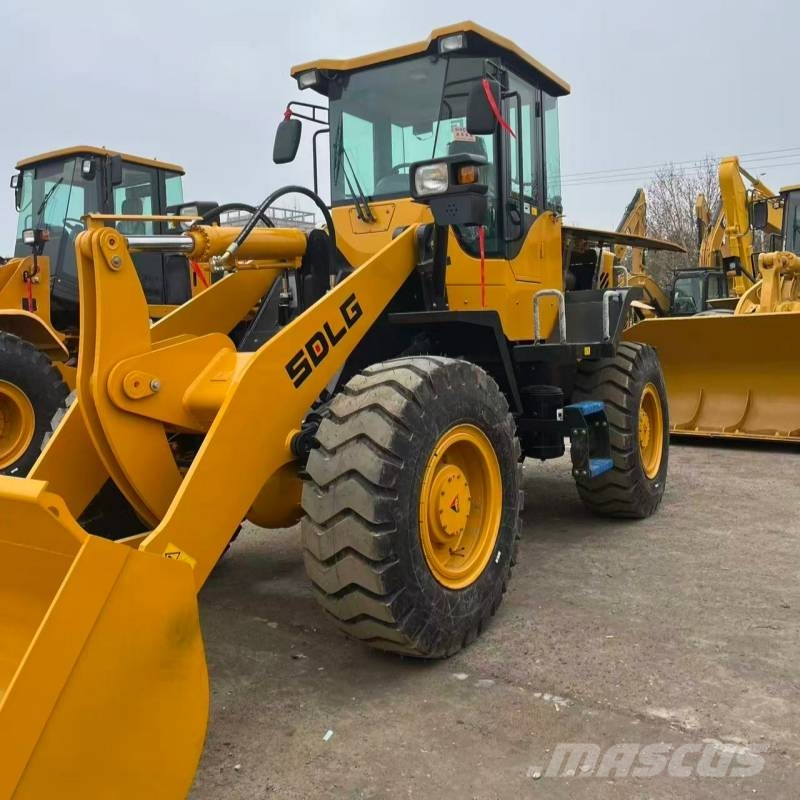

SDLG LG936L

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

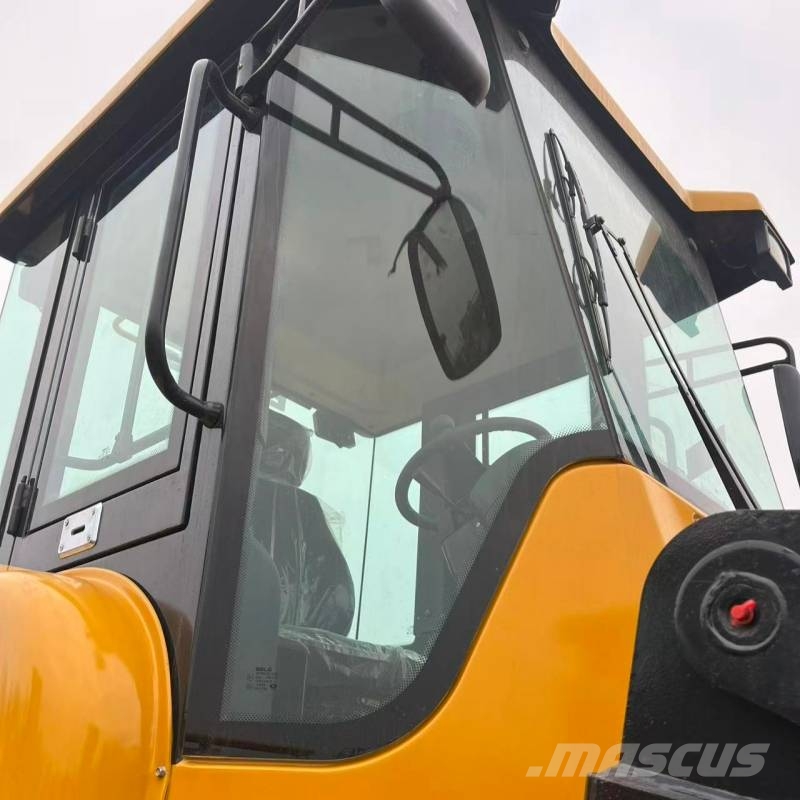

## Specifications - Operating weight: **10700 kg** - Rated load capacity: **3000 kg (3 ton)** - Standard bucket capacity: **1.8 m³** (Optional: 1.4–3.0 m³ bucket, log grapple, 4-in-1 bucket, pallet fork) - Engine: **Weichai Deutz WP6G125E22**, inline 6-cylinder turbocharged - Rated power: **92kW (97kW optional)** @2200rpm, Max torque 500 N·m - Transmission: Fixed-shaft power shift, 2 forward / 1 reverse gears - Max travel speed: Forward 38 km/h, Reverse 17 km/h - Max breakout force: **96 kN** - Max traction force: ≥105 kN - Total cycle time: ≤9.2 s, Single-lever pilot control - Tire size: **17.5-25** - Fuel tank: 140 L; Hydraulic tank: 128 L ## Overall Dimensions (with standard bucket) - Overall length: 7100 mm - Overall width: 2310 mm (Bucket width: 2510 mm) - Overall height: 3170 mm - Wheelbase: 2850 mm; Track width: 1865 mm - Min ground clearance: 370 mm - Dump height: 2950 mm - Dump reach: 1050 mm - Turning radius (outer rear wheel): 5381 mm ## Configuration - Brake: Dry disc service brake + dry disc parking brake - Frame: Articulated box structure - Cabin: Panoramic glass, suspension seat; Air conditioner & heater optional - Hydraulic: Load-sensing steering, double-seal hydraulic fittings, low leakage - Application: Quarry, construction site, farm, grain depot, municipal works, batching plant feeding
