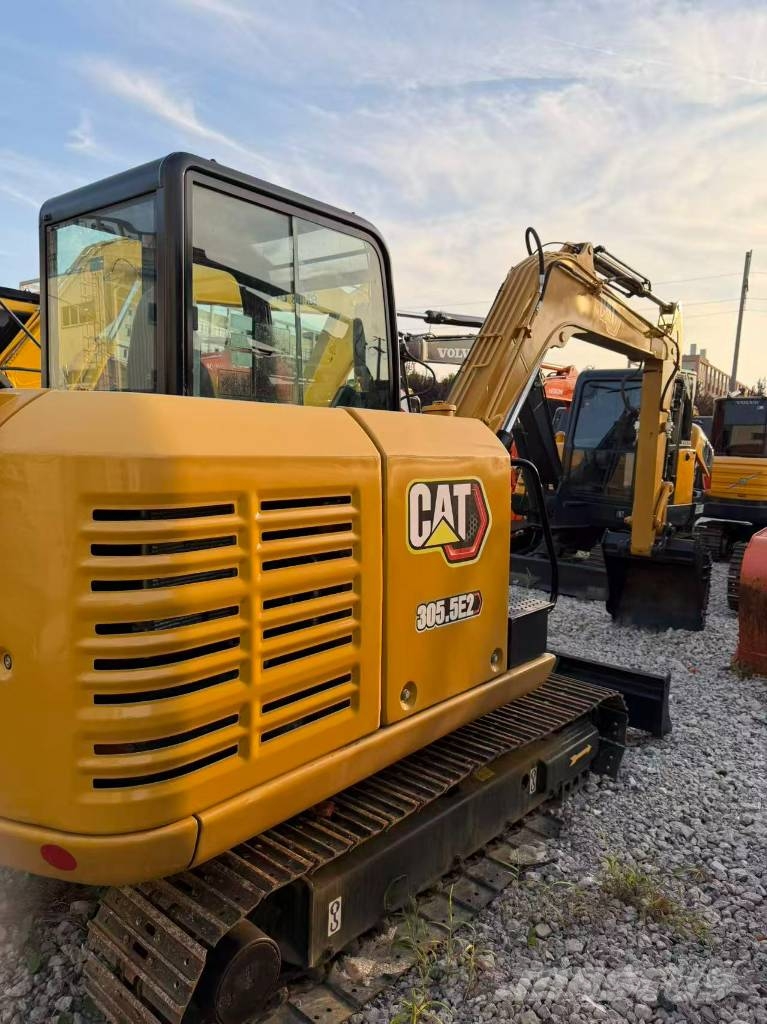

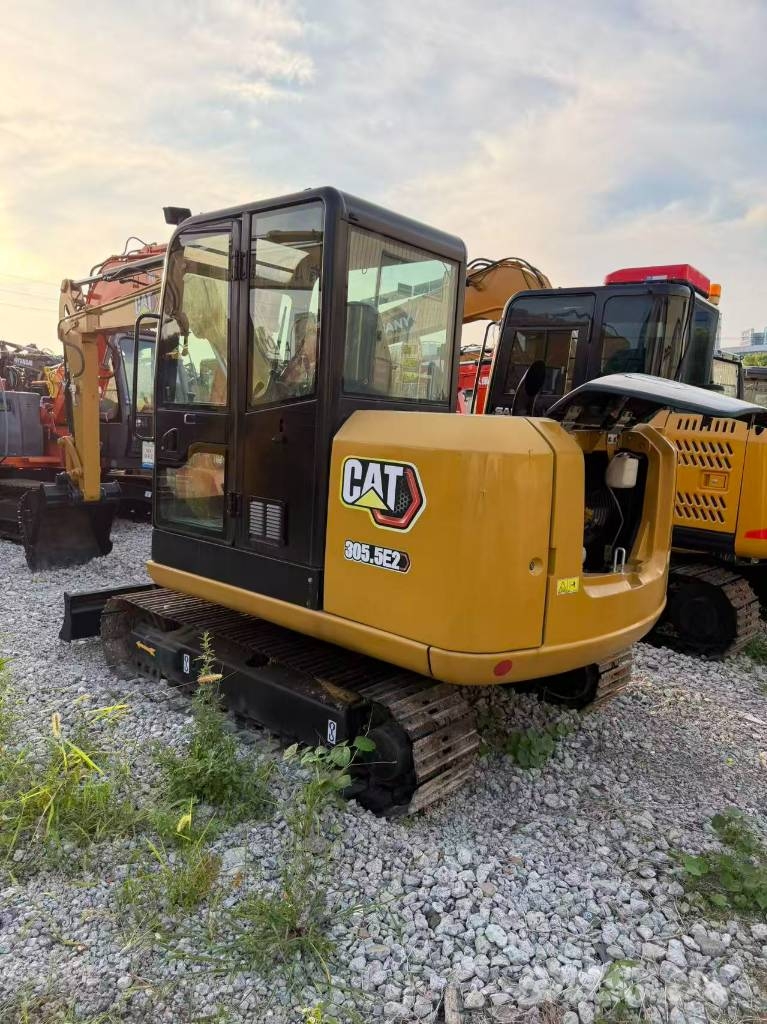

CAT 305.5E 2

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

## 🔧 Engine - Model: **Cat C2.4 DI** direct injection diesel engine - Net rated power: 31.1 kW (41.7 hp) @2400 rpm - Gross power: 34.1 kW (45.7 hp) @2400 rpm - Displacement: 2.4 L, Bore × Stroke: 87 mm × 102.4 mm - Emission: China Stage III / EU Stage IIIA; **EU version without DPF**. North America Tier4F version equipped with DOC+DPF. ## ⚖️ Weight & Counterweight - Operating weight with cab, standard bucket and steel tracks: **5400 kg** - Canopy version approx. 5217 kg - Integrated low-position counterweight for improved lateral stability ## 📐 Transport Dimensions - Overall transport length: 5765 mm - Overall transport width: 1950 mm - Overall transport height: 2540 mm - Tail swing radius: 1580 mm - Track gauge: 1920 mm ## 🦾 Front Working Equipment - Boom length: 3200 mm - Standard stick: 1500 mm; long stick optional - Bucket capacity: **0.22 m³**, bucket width 766 mm - Max digging depth: 3720 mm - Bucket digging force: 50.9 kN; stick digging force: 27.2 kN ## 🧪 Hydraulic System - System: Load-sensing variable piston pump - Main pump flow: 140 L/min @2400 rpm - Main system pressure: 250 bar - **Auxiliary hydraulic (optional lines)**: 1st & 2nd circuits - 1st auxiliary max flow: 80 L/min - 2nd auxiliary max flow: 25 L/min - Swing pressure: 216 bar ## 🛢️ Tank Capacities - Fuel tank: 78 L - Engine oil: 9.5 L - Cooling system: 9.8 L - Hydraulic tank: 58 L; total hydraulic system volume: 85 L ## 🚜 Travel System - Max travel speed: 3.8 km/h (high), 2.8 km/h (low) - Max drawbar pull: 41.5 kN - Gradeability: 30° - Ground pressure: 32.2 kPa
