Tennant 525
부가세 제외가격
12
2
즐겨찾기
공유
검색 저장출력
INFO
제품군
청소 트럭
제작사/모델
Tennant 525
장비위치
Fontana, California
국가
미국
일반 등급
1
2
3
4
5
마스쿠스 ID
5E7F0407
가격
화폐 선택
세부정보
재고번호
2021021
엔진 출력
23.0 kW (31.3 마력)
엔진 배치
1120 cm3
엔진 제조사
Kubota
제품 국가
미국
기타 정보

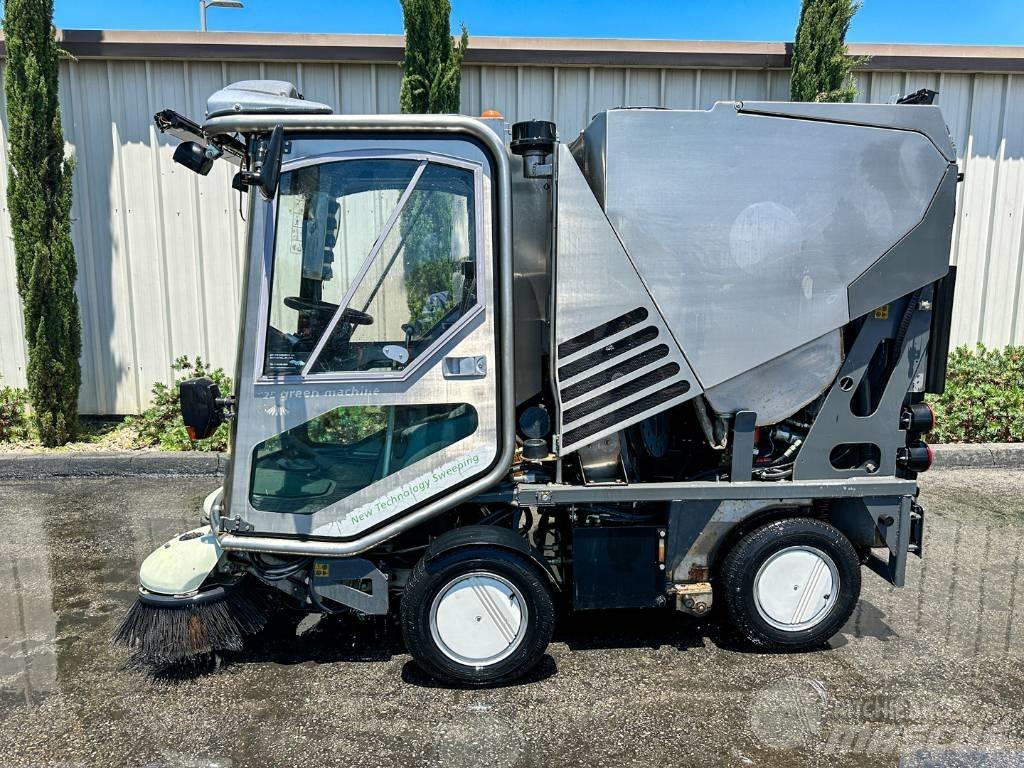

Tennant Green Machine 525 HS Ride-On Sweeter, Kubota Turbo Diesel Engine, Water Cooled, Hydrostatic Drive, Great Condition, Ready to Work!
Features:
-Great for sweeping streets, parking lots, garages, sidewalks, alleys, and more.
-Comes equipped with an economical Kubota Turbodiesel engine.
-Stainless steel hopper and frame for great durability.
-Noise level compliant for a comfortable ride.
-Designed for ease of use.
Dimensions:
-Length – overall (including brushes): 123 in.
-Length – over body: 108 in.
-Width – over body: 43.3 in.
-Width – over wheels with track extended: 52.8 in.
-Height – (excl. folding beacon): 78 in.
-Wheelbase: 47.2 in.
-Front wheel track is variable: 37.4 in to 46.9 in.
Weight:
-Curb Weight: 3,390 lb
-Payload: 992 lb
-Gross Vehicle Weight: 4,382 lb
Engine:
-Make: Kubota
-Model: DD1105T
-Cylinders: 3
-Cooling: Water Cooled
-Induction: Turbo
-RPM: 2400 - 2800
-HP: 31.3
-Displacement: 1,123cc
-Engine Oil Capacity: 5.1L (15W40 API CF4/ACEA 2)
-Engine Coolant: 10L (50/50 mix of Ethylene Glycol Permanent)
-Fuel: Diesel
-Fuel Grade: 45 minimum cetane rating. Low Sulphur (below 0.05%)
-Fuel Tank Capacity: 9.5 gal
Speed Modes:
-Transit Mode: 20 mph
-Sweeping Mode: 8 mph
-Reverse: 4 mph
Noise:
-Complies with in-cab noise levels in accordance with 98/37EC and the sound power measurement to 200/14/EC is 107dBLwa.
Suction System:
-High flow, through fan suction system with cyclonic dust separation. Twin contra-rotating floating brushes with in-cab adjustment of height, and independent joystick control of brush swept path width.
Dust Suppression System:
-Electric Pump: 12V, 5L/min
-Twin Water Tank Capacity: 45 gal
-Mesh Filtration System with fast-dump drain.
Brushes:
-Diameter: 23.6 in
-Min. Swept Track: 47.2 in.
-Max. Swept Track: 70.9 in.
Wheels & Tires:
-Tire Size: 145R12*8 Ply Tires
-Wheels: 4.55
-Inflation Pressure: 65 psi (Fitted with thorn guard anti-puncture liners)
-Wheel nut tightening torque:74 to 77 lb. Ft
Hopper:
-198 gal
-Clearance for tipping: 55 in.더 보기
ReQuip Corporation
16516 Washington Dr 92335 Fontana California 미국
