PM 100024

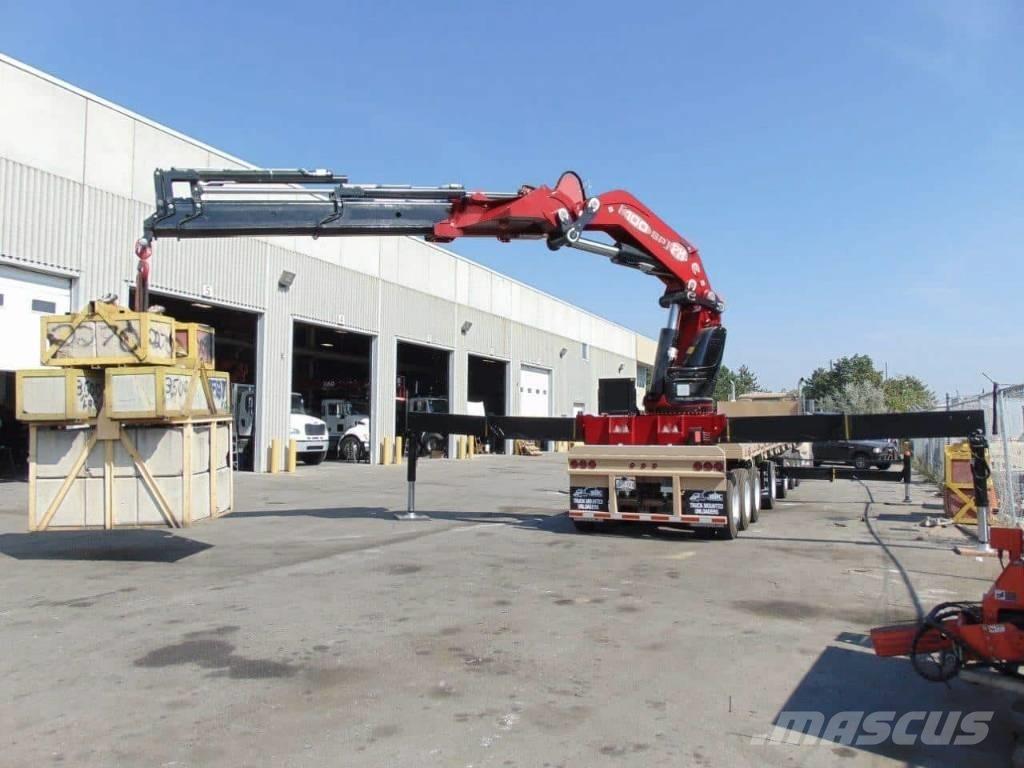

Boom Details New – PM 100024S Knuckle Boom 4 Hydraulic extentions to 37’ 5” horizontal reach (49’ vertical) Main Boom Horizontal Capacity: 42,400 lb @ 14’ 32,100 lb @ 19’ 24,010 lb @ 25’ 3” 20,600 lb @ 30’ 6” 16,250 lb @ 37’ 5” PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation Double pilot operated on slewing and pilot operated check valves on all cylinders 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – 360 degree full load chart stability Front Auxilary Stabilizers Extra wide type – 25’ span – installed under trailer near front Hydraulic Oil Cooler, high pressure return filter DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with back up cord Radio Remote includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode PM Power Tronics Electronic monitoring allowing maximized uptime and ease of maintenance 4-ton single line winch with ability to three-art line to handle 24,000 lb with winch Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified 24/7 Crane-Tech Support by BIK – 1-Yr. part & labor warranty on entire boom, 3-Yr. on Structural Components Mounted end of frame mount on trailer, with hydraulic and electric connections for tractor wet-line operation Deck Details New 5-axle Michigan Trailer Tri-Dem (3) axles air ride or spring at rear (2) – 20k air lift axles 9’ spread between 1st axle of tri’s & lift Wood flooring on 12” centers We will need customer owned tractor with its own at end of install to set up pressures on boom Available Options: Lifting winch up to 4-part line cable to handle 24,000 lb lifts Aluminum Stabilizer Pads (2x) with holders installed (1) 36” Aluminum Tool Box under deck
