커민스 ISF3.8s3168
부가세 제외가격
POA
출력
INFO
제품군
엔진
제작사/모델
커민스 ISF3.8s3168
제작년도
2015
컨디션
새제품
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
4542CAB6
세부정보
서비스 내역 전체
예
실린더
4사이클
제품 국가
미국
바디 옵션
터보
기타 정보

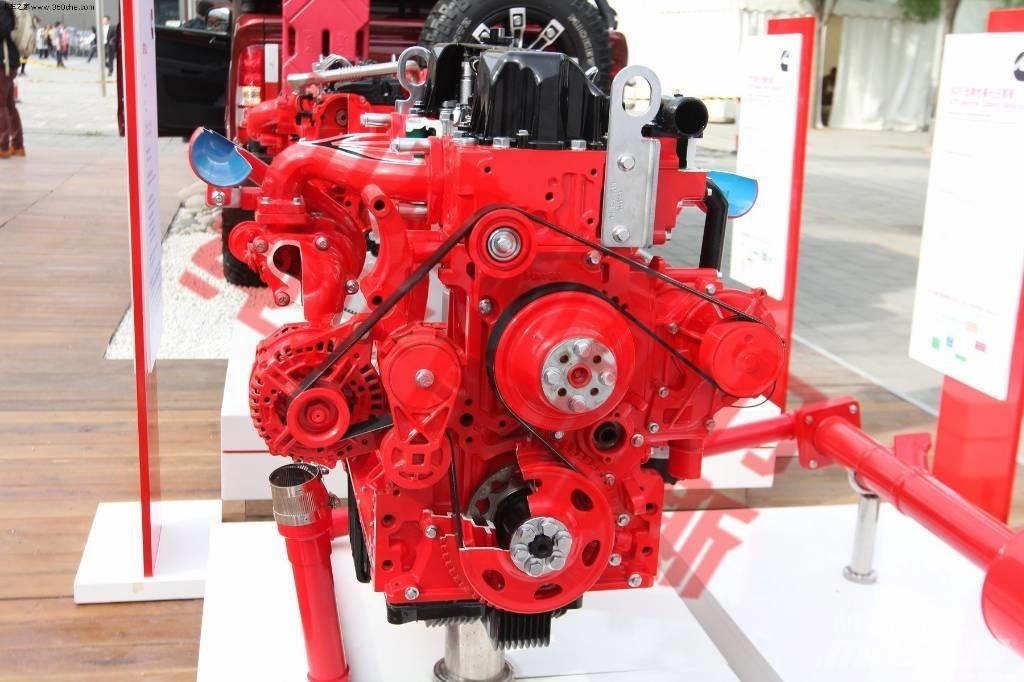

Engine model ISF3.8s3168 cummins engine ISF3.8s3168
Engine type 4 Cylinders, in Line
Displacement 3.76 L
Rated Power (KW@RPM) 168KW (125HP) @ 2600rpm
Peak Torque(Nm@RPM) 600N.m @ 1300-1700rpm
Emission Standard Euro 3
Cummins diesel engine ISF3.8s3168 technique specification
Bore*stroke 102mm * 115mm
Intake method Turbochager&Intercooled
Fuel systeme Direct Injection Pump
Cooling method Fluid Cooling 11.1 L
Governor Type Electronic Control
Compression Ratio 17.2:1
Fuel Consumption: 195 g/kW.h
Starting System Electrical Starting Motor 24V/750A
Lowest Starting Temp .(with/without auxiliary system) -10℃/-25℃
Cummins diesel engine ISF3.8s3168 trade information
Warranty time 1year or 1500h
Engine Size(L*W*H): 810mm*695mm*806mm
Packing size 1100mm*950mm*1100mm
Weight net 340 Kg
Weight gross 400 Kg
Delivary port Qingdao
Delivary time 15 working days
Trade termes FOB/CIF/CNP
Payement termes T/T,L/C
All the spare parts for Cummins ISF3.8s3168 are available;
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 중국
