Kuhn GMD 3123F
부가세 제외가격
27
즐겨찾기
공유
검색 저장출력
INFO
제품군
제초기
제작사/모델
Kuhn GMD 3123F
제작년도
2021
장비위치
Szabás, Somogy
국가
헝가리
마스쿠스 ID
55980E7D
가격
화폐 선택
세부정보
하부 외관
장착
기타 정보

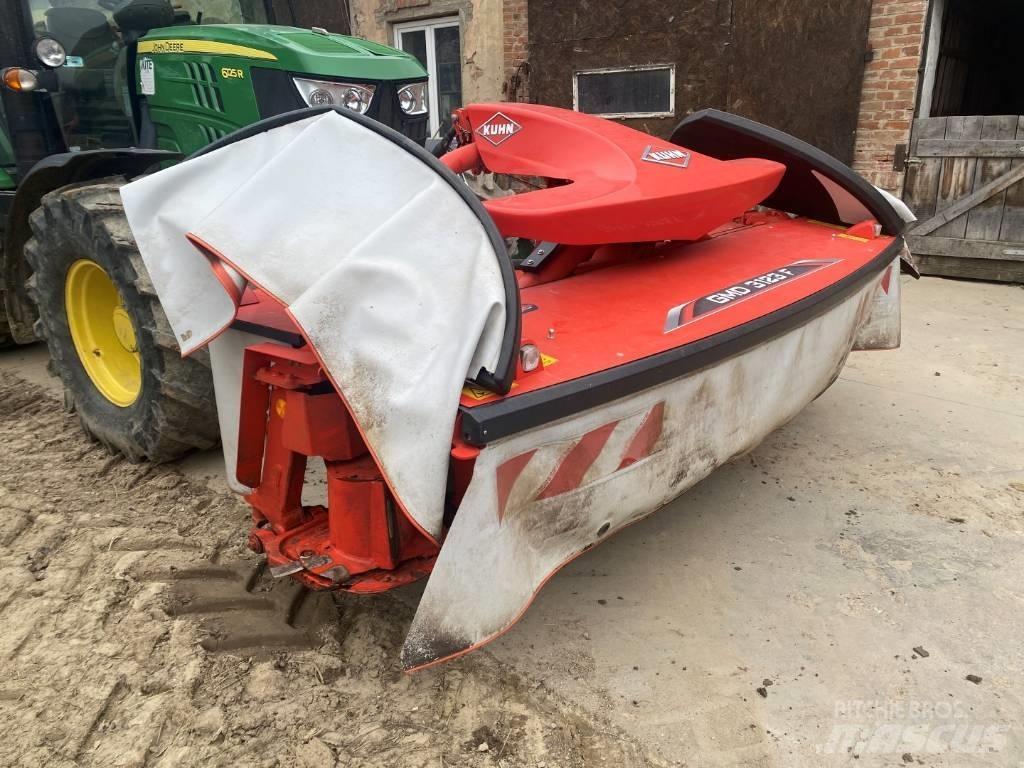

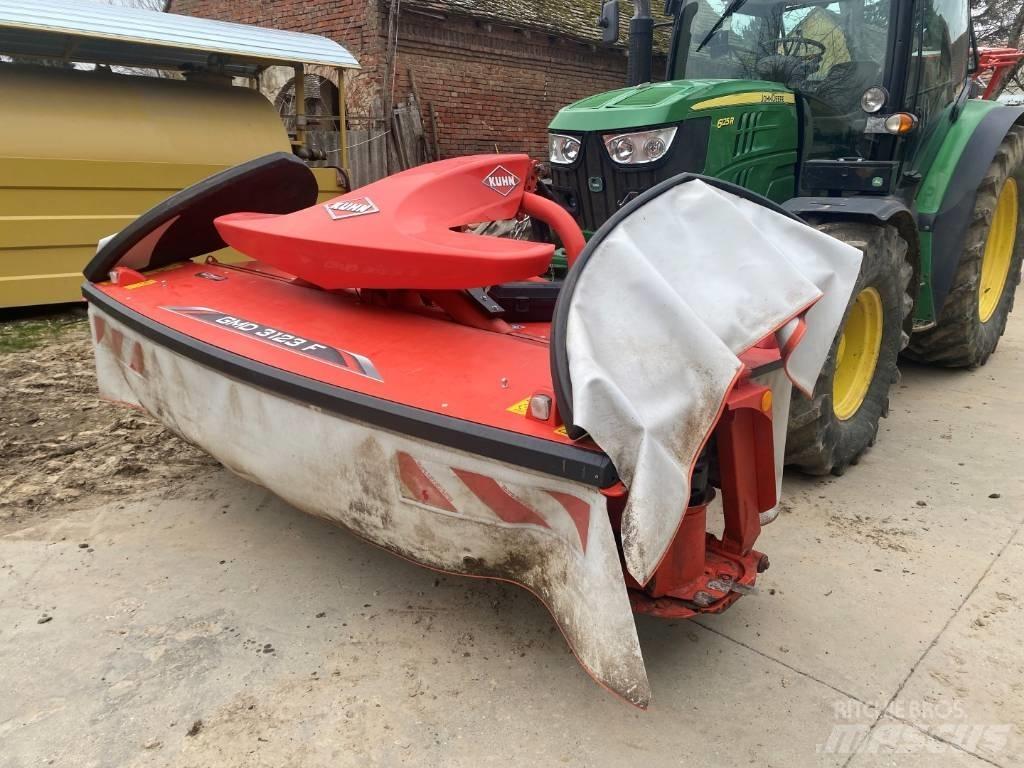

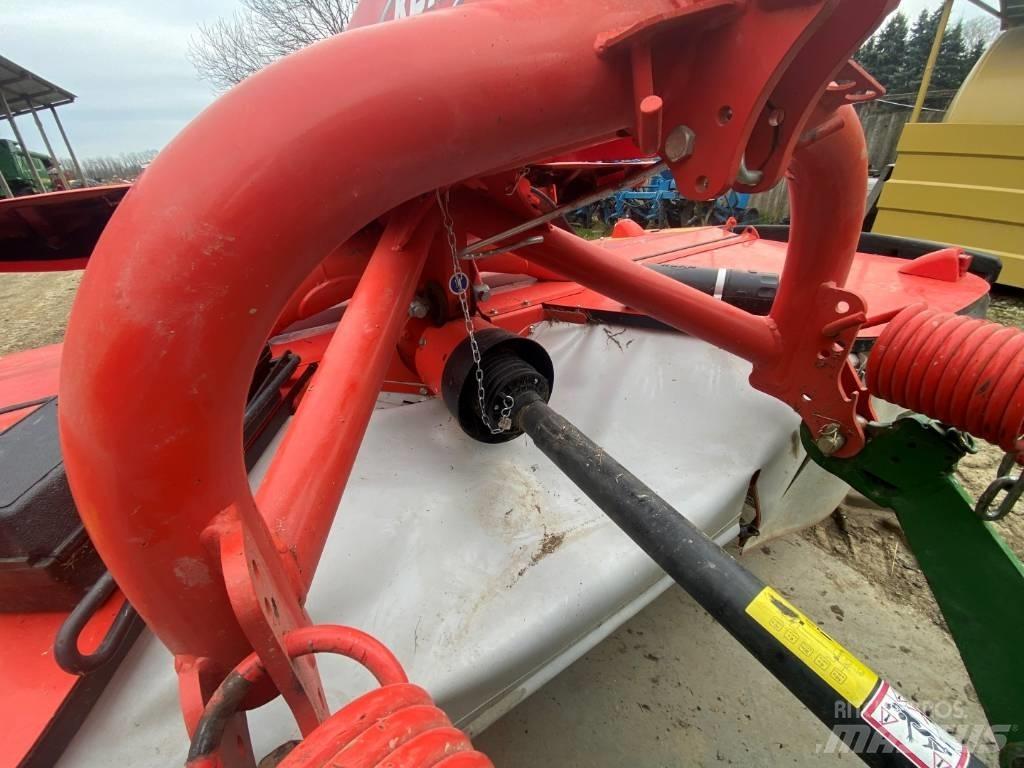

Kuhn GMD-3123F Mower
The GMD 3123 F front mowers are an ideal choice for farmers looking for a lighter machine, who have a tractor around 80 HP. Its compact design and lighter weight allow it to be used on flat fields as well as on hilly terrain. The mower unit effectively follows the ground surface thanks to its +/- 12° pendulum joint movement. It is equipped with two swath deflectors as standard, so the average swath width is between 1.2 and 1.4 meters.
The durability of the most important components of the mower bar is ensured by top-quality components: - Special disc bearings with double-row angular contact ball bearings; - Large-diameter, precision-machined forged steel gears with 3 teeth engaging simultaneously; - Forged and heat-treated discs on their entire surface; - Sliders made of hardened steel, with optional (screw-on) protective plate; - PROTECTADRIVE protection.
Kuhn 3123 F
Technical data:
Year: 2021
Working width per mowing unit (m) 3.10
Overlap of cutting area of front/rear units (cm) 29 - 44 - 55 (GMD 8730) 30 - 50 (GMD 9530)
Swath width (m)1.30 - 1.40
Swath formation 2 swath deflector discs
Hanging device 3-point - Cat. 2
Alfalfa inserts
PTO speed (rpm) Primary 1,000
PTO 1 3 / 8’’ - 6-rib, friction clutch
Freewheel Integrated in side transmission
Cutter bar OPTIDISC ELITE
Number of carbide skid discs 7
Drive protection PROTECTADRIVE system
Suspension Spring (mechanical)
Ground following Pendulum type articulated suspension
Transport width (m) 3.00
Side protection FLEXPROTECT flexible side protection
Storage position Horizontal
Lighting and indicator lights Standard
Minimum PTO power requirement (kW/HP) 32 / 43
Tractor electrical requirement 1 7-pin
Approximate weight (kg) 745
The machine was advertised by Agro Partner Magyarország Kft.
The description is for information only. We reserve the right to make changes, errors and misspellings.더 보기
