Kuhn GT 4731T
부가세 제외가격
32
즐겨찾기
공유
검색 저장출력
INFO
제품군
갈퀴 및 테더
제작사/모델
Kuhn GT 4731T
제작년도
2022
장비위치
Szabás, Somogy
국가
헝가리
마스쿠스 ID
752E0CC8
가격
화폐 선택
세부정보
하부 외관
트레일
작업폭
465 cm
기타 정보
Specification:
Year: 2022
Work done: approx. 100ha
KUHN rakes are designed to adapt perfectly to the harvesting process and ensure the quality and nutritional value of the forage is preserved. Single-rotor rakes are a simple and efficient solution for raking. The KUHN range includes both mounted and trailed models, with working widths ranging from 3.20 to 5.00 metres.
The MASTERDRIVE GIII transmission has been designed to cope with the increasing demands on the drive train, which are mainly due to: Increasing working widths and rotor diameters, and the handling of larger crops such as silage, hay, straw and hay.
The GA 4431 and GA 4731 models are mounted, single-rotor rakes. They work in working widths of 4.40 to 5.00 metres. With the MASTERDRIVE GIII transmission, they are just as reliable as their larger counterparts. Their tooth-holding arms make changing teeth very easy.
• Important parts have been reinforced to ensure that the rotors maintain their robust design despite their reduced weight:
• Aluminum housings.
• Optimized cam track to reduce roller load.
• Large diameter rollers to reduce rotational speed and reduce pressure on the cam track.
• Tine arms with large diameter bearings.
• Stronger articulated tine arm shaft.
• Reinforced main shaft.
• Stronger attachment of the tine arms to the tine holders (bolted).

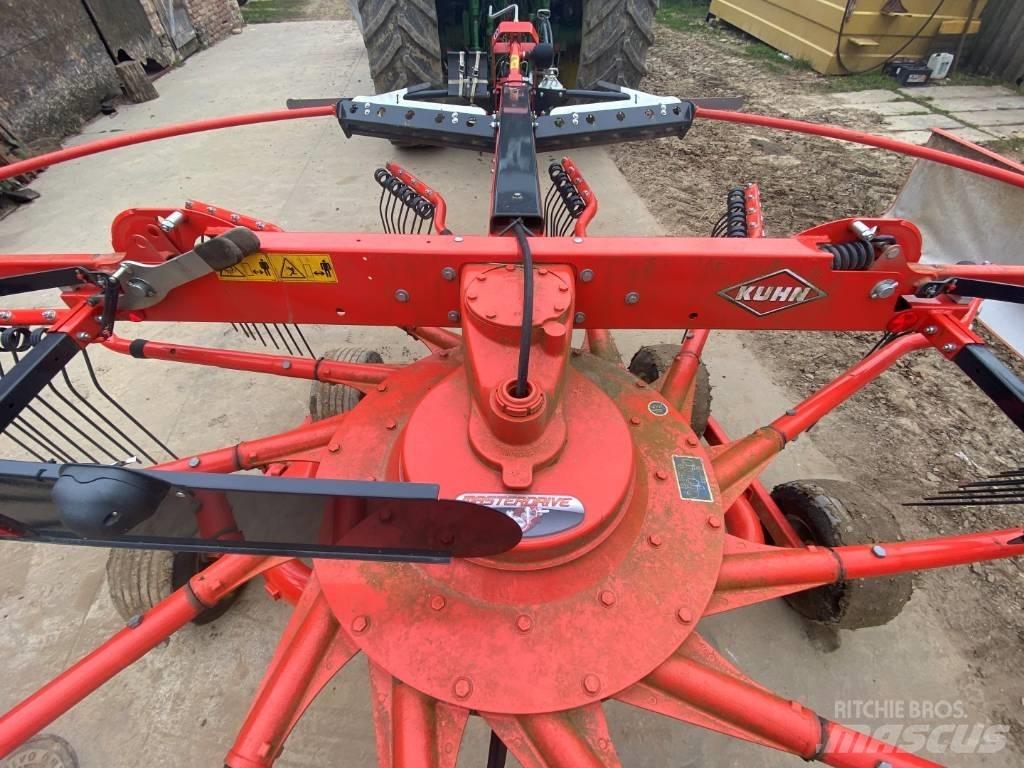

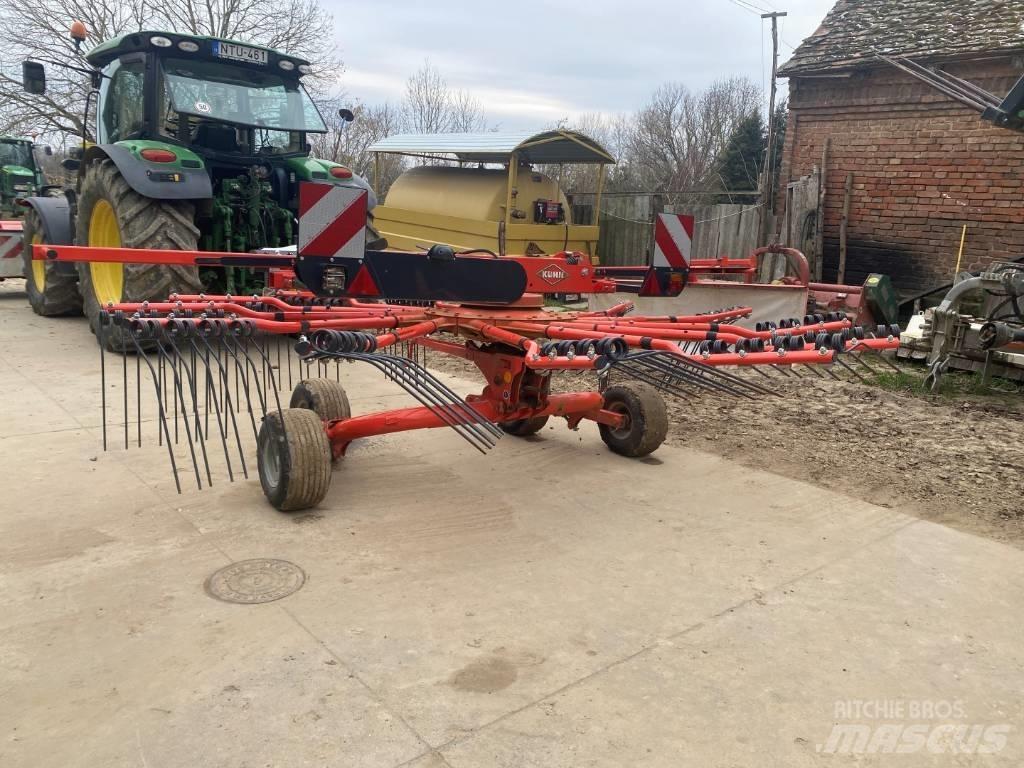

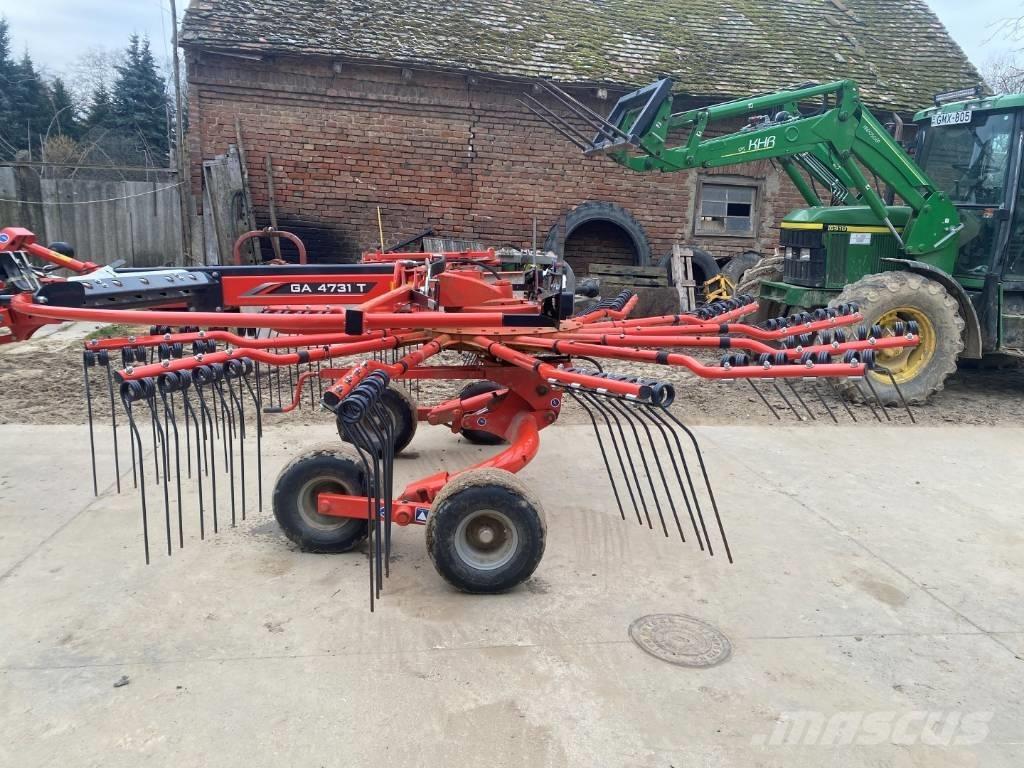

Kuhn GA 4731T rake
Technical parameters
Working width (m) 4.65
Average swath width (m) 0.70-1.50
Swath width with arms disconnected/connected (m) 2.45/4.00
Lowering and closing of protective barriers:Manual as standard
Operation of swath boundary tarpaulin:Manual as standard
Number of rotors / rotor diameter (m) 1/3.65
Number of teeth per rotor / Number of teeth per tine arm:13-4
Tine arms:Removable
Drivetrain:Fully enclosed double reduction Master Drive GIII
Turntable axles:Standard
Wheel size:Fixed
Working height adjustment:With crank handle
All rubber tires rotor:16x6.50-8
Drive to rotors:Mechanical with integrated freewheel
Hitch:3-point-Cat.2
Hitch:Articulated
Hitch stabilizers:Standard
Theoretical tractor power requirement (kW/HP) 26/35
Road lighting and markings:Yes
Approximate weight (kg) 750
The machine was advertised by Agro Partner Magyarország Kft.
The description is for information only. We reserve the right to make changes, errors and misspellings.더 보기
