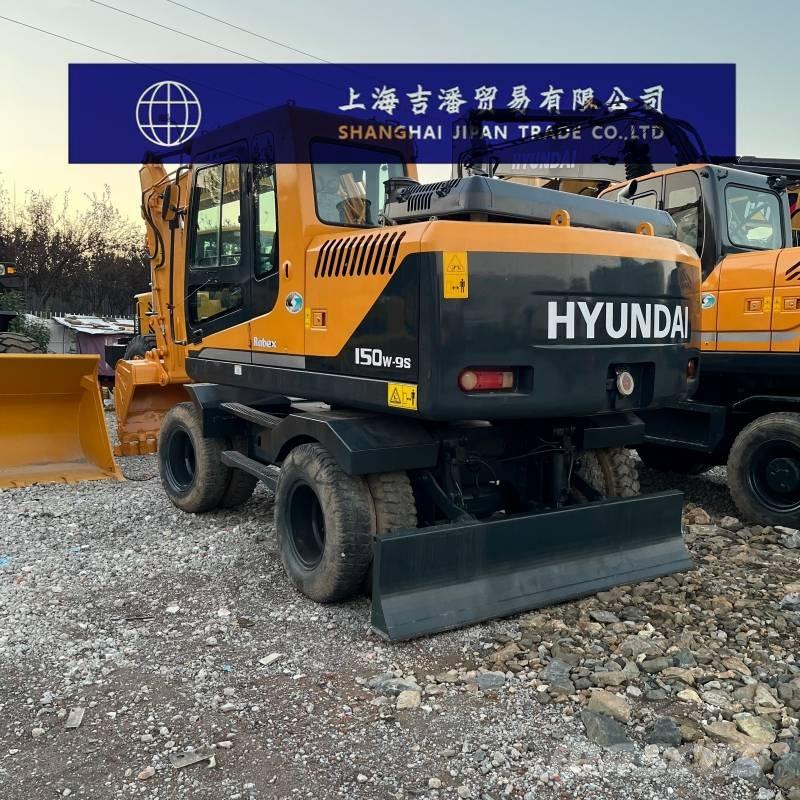

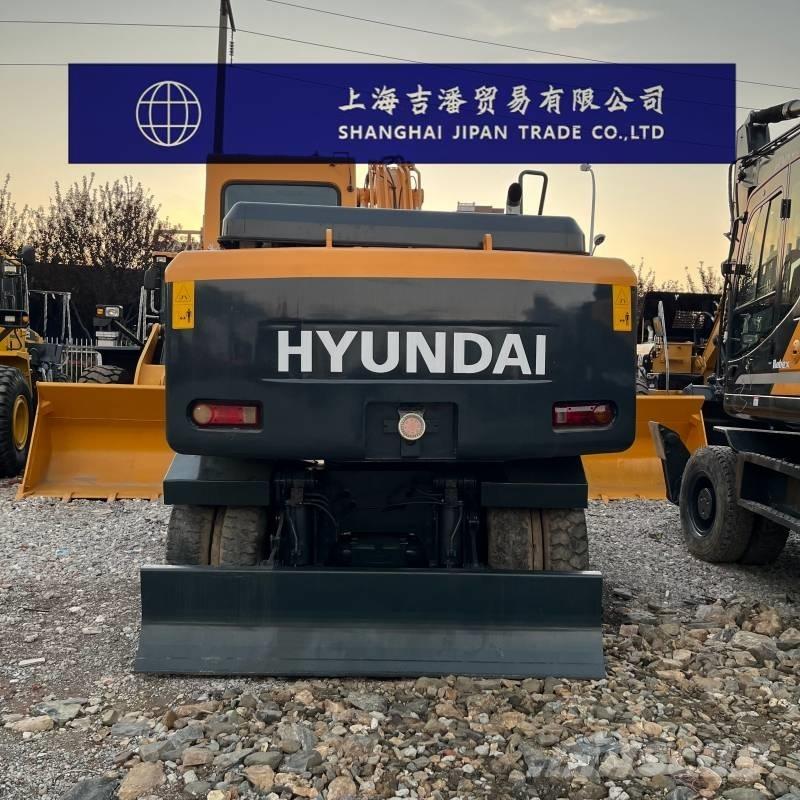

현대 R 150 W

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel. If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter configuration of Hyundai R150W-9 excavator Specification Tonnage (tons)15 The working weight of the entire machine (kg) is 13,700 Bucket capacity (m³):0.71 Boom length (mm):4600 The length of the boom (mm) is 2100 Performance Drive form: Hydraulic motor Forward speed (Km/h)37 Rotational speed (rpm)13 Climbing ability:35% Bucket digging force (kN):101.9 The digging force of the bucket arm (kN) is 65.6 The maximum traction force (kN) is 83.3 Power system Engine model: Cummins B5.9-C Rated power (kw/h;rpm)112kw;1950rpm Maximum torque (N.m):613.48 Total displacement (L)5.9 Number of cylinders:6 The cooling method is water cooling Note: Six-cylinder four-stroke turbocharged direct injection engine Hydraulic system The main pump type is a variable swash plate plunger pump The main overflow set pressure (Mpa) is 350 The maximum flow rate of the main pump (l/min) is 2×168 Quantitative swash plate type piston motor for working hydraulic circuit (Mpa) The type of rotary hydraulic motor is a variable swash plate piston motor Oil capacity Fuel tank (L)270 Hydraulic oil tank (L)126 Main body size The total length of transportation (mm) is 7,760 The total transportation width (mm) is 2500 The total transportation height (mm) is 3500 The total height of the cab (mm) is 3137 The width of the vehicle (mm) is 2500 Wheelbase (mm):2800 Track (mm):1944 The width of a single tire (mm) is 900×20-14PR The total width of the outer side of the tire (mm) is 2495 The ground clearance of the counterweight (mm) is 1233 Minimum ground clearance (mm):365 Scope of work Maximum excavation radius (mm):7920 The maximum ground excavation radius (mm) is 7,700 Maximum excavation depth (mm):4850 The maximum vertical excavation depth (mm) is 4460 Maximum excavation height (mm):8470 Maximum unloading height (mm):6040 Minimum turning radius (mm):2670 The width × height (mm) of the bulldozer board is 2490×559
