Haas

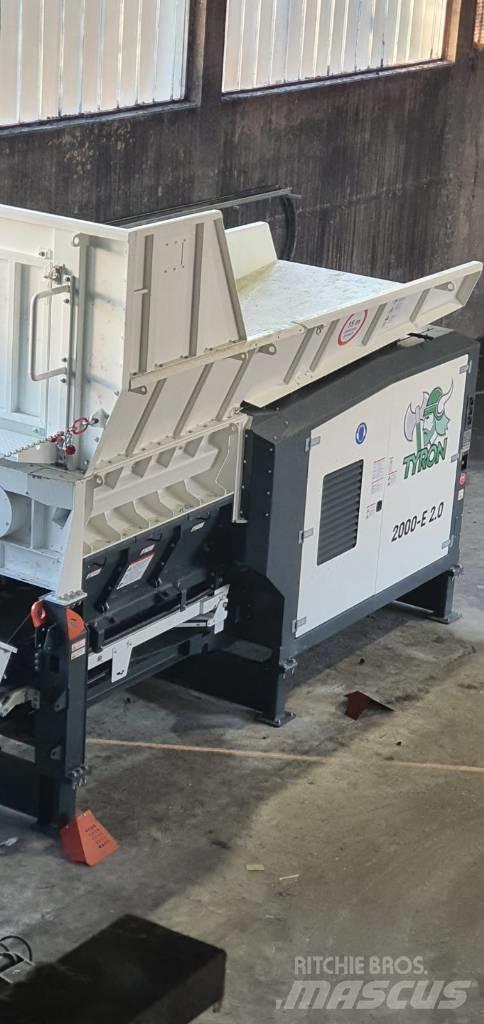

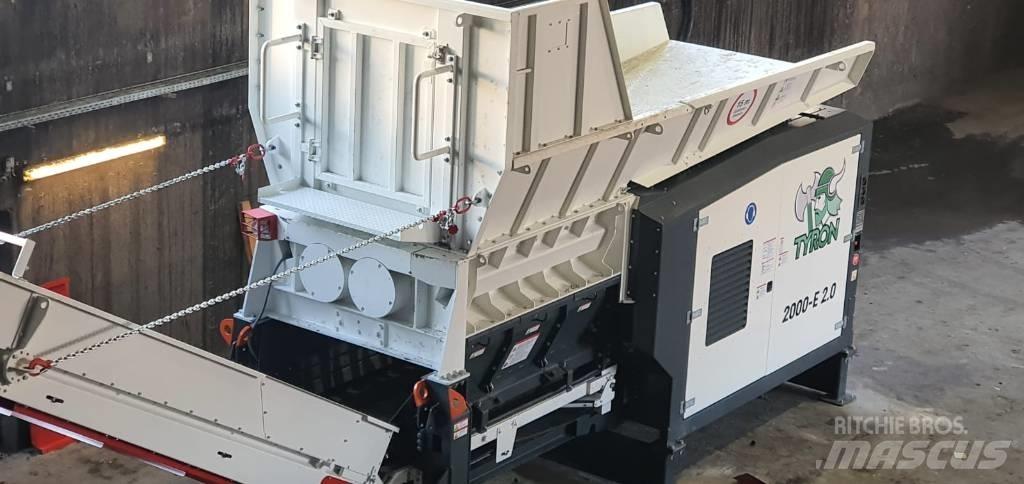

Haas 2000 E-XL
부가세 제외가격
POA
15
즐겨찾기
공유
검색 저장
출력
INFO
제품군
폐기물 분쇄기
제작사/모델
Haas 2000 E-XL
제작년도
2020

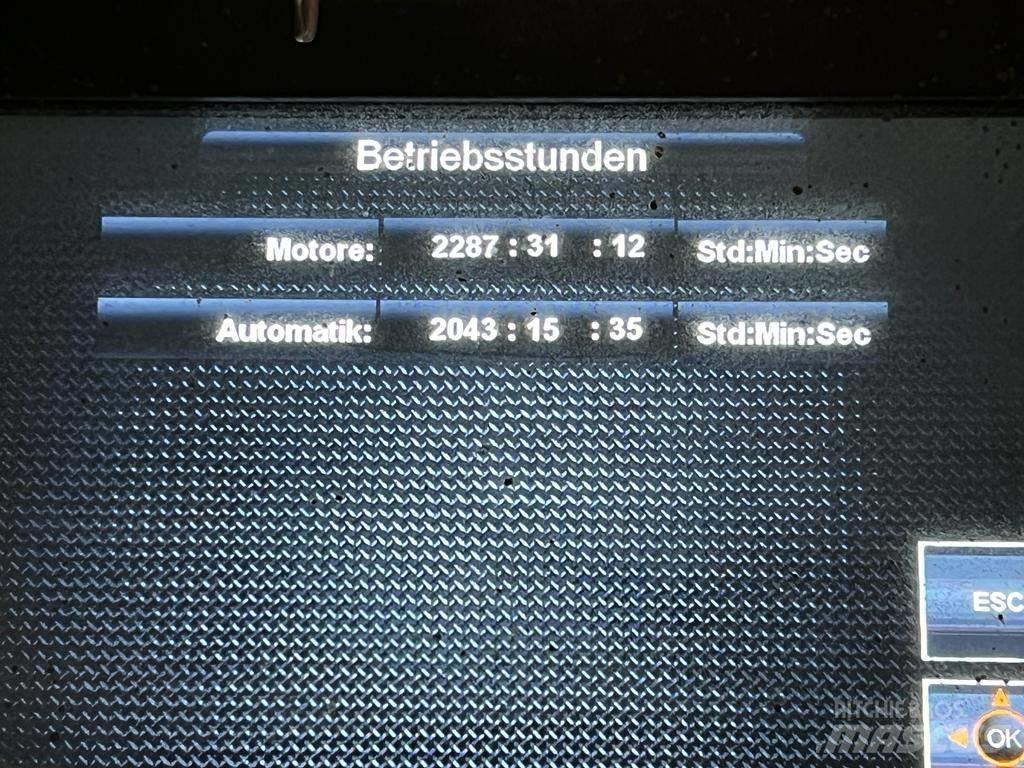

사용시간
2000 시간
장비위치
Llangyfelach
국가
영국
마스쿠스 ID
15B26170
세부정보
재고번호
PC2024-0002
문서
S-99-101-EN-Specification.pdf
기타 정보
Double shaft primary shredder electric drive version Crusher – rotor length/working length (mm): 2,000 / 1,790 – rotor diameter (circle) (mm): 700 – rotor speed (min. / max. rpm): 0 – 41 – tool carrier (pieces): 12 – pocket filler: half occupied – blades (pieces): 48 – breaking bar: yes – counter comb tooth type: narrow – volume funnel (cbm): 5.5 Discharge belt – Discharge height (m): 4.99 – Drive: Bevel gear motor (NORD) Electric Motor Type 2 x WEG-IE 3 (kW): 132 Oil cooler – Type: hydraulic oil (ADAM) – Drive: three-phase motor (VEM or ADAM) Main pumps – type: axial piston pump (Bosch-Rexroth) Boost pressure compensation, type diaphragm accumulator (Bosch-Rexroth) Main Gear – Type: Planetary Gear (HAAS) Hydraulic motors – type: axial piston motor (Bosch-Rexroth) Auxiliary function pump – type: external gear pump (Bosch-Rexroth/ Vivolo) Pump for return suction filter – Type: vane pump (Bosch-Rexroth) – Drive: three-phase motor (Bosch-Rexroth) PLC control – Type: IFM 5.2.2 Special accessories – pressure sensors – GPS/GSM modem
