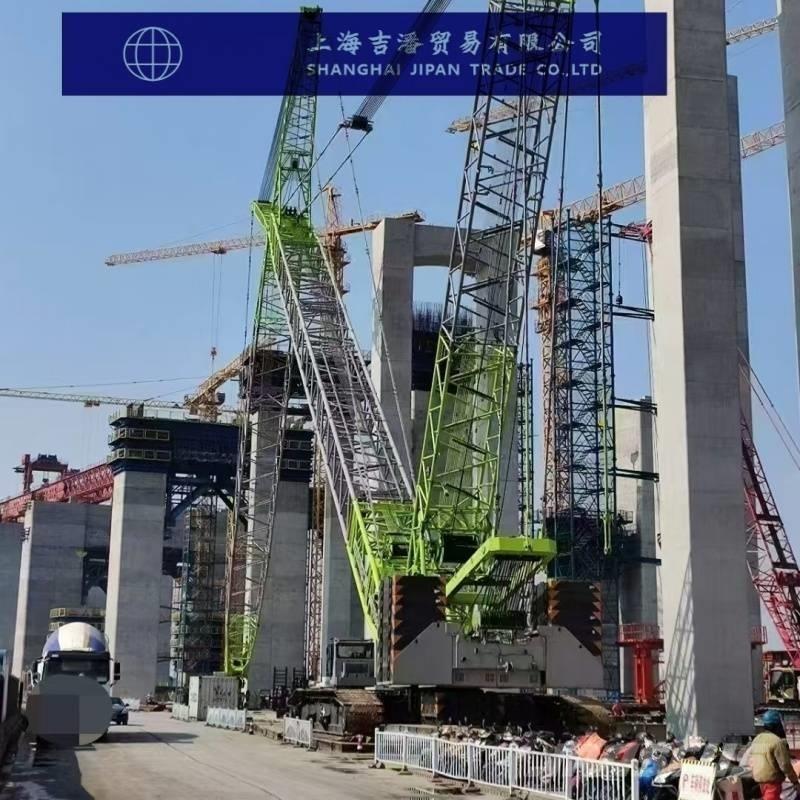

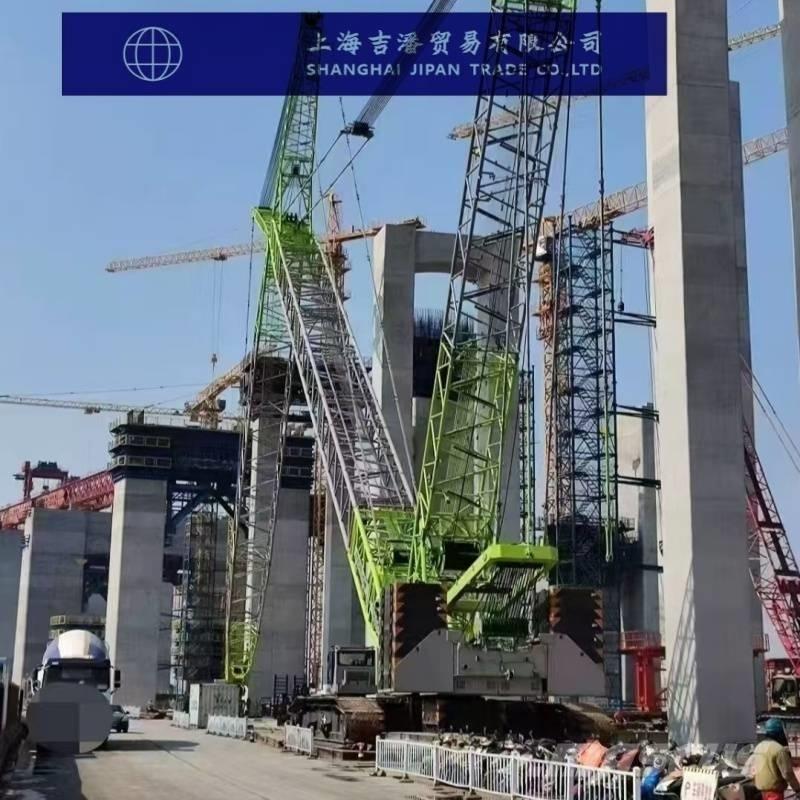

Zoomlion ZCC5000
부가세 제외가격
POA
7
즐겨찾기
공유
검색 저장출력
INFO
제품군
트랙 크레인
제작사/모델
Zoomlion ZCC5000
제작년도
2018
사용시간
15864 시간
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
FE065233
세부정보
붐 종류
격자 모양
최근검사
2025-09-12
기존 차주 수
1
총 중량
37000 kg
인양력
500 ton
지브 끝 쪽의 최대 리프팅 용량
500 ton
붐 길이
14 미터
매연 등급
Stage V / Tier V
최소 붐 길이
15 미터
최소 러핑 지브
14 미터
루핑 집
14 미터
크레인 지브 길이
14 미터
인양 높이
91 미터
크레인 후크 높이 - 수평 지브
15 미터
크레인 후크 높이 - 러핑 지브
15 미터
크레인 종류
유압 지브
오리지널 컬러
original
장비크기
12000 x 3000 x 3500 mm
엔진 제조사
original
캐리어 유형
바퀴식
상태 정보/보증
1 year
앞 타이어 잔존수명
98%
뒷 타이어 잔존수명
2
운송 조건
FCA, FOB, CIF, EXW
증명서
미국 환경 보호국(EPA), 유럽 위원회(CE)
어태치먼트
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs
부속품
훅 블록
기타 정보
Item Parameter
Maximum rated lifting weight 500t
Maximum lifting moment 6320t·m
Maximum lifting weight/radius (standard) 500×6t·m
Maximum lifting weight/radius (superlift) 500×12t·m
Heavy main boom length (standard) 24～90m
Heavy main boom length (superlift) 36～96m
Light main boom length (standard) 48～108m
Light main boom length (superlift) 78～126m
Self-weight with basic boom 370t
Luffing jib length 24～84m
Maximum lifting weight of luffing jib (standard) 190×13t·m
Maximum lifting weight of luffing jib (superlift) 235×16t·m
Working angle of main boom in luffing jib configuration 65°, 75°, 85°
Longest main boom + longest luffing jib (standard) 60 + 72m
Longest main boom + longest luffing jib (superlift) 84 + 84m
Wind power boom length in standard configuration 84～108m
Maximum lifting weight of wind power boom 126×16t·m
Main hoisting speed 0～137m/min
Auxiliary hoisting speed 0～137m/min
Luffing speed 0～50m/min
Jib luffing speed 0～123m/min
Superlift luffing speed 0～143m/min
鹅头起升速度 0～109m/min
Slewing speed 0～1.0rpm
Travel speed 0～1.0km/h
Maximum climbing capacity with basic main boom 30%
Average ground pressure with basic boom 0.139MPa
Transport dimensions of main unit (L×W×H) 12180×3345×3205mm (excluding mast)
Maximum transport weight per unit 48.6t
Engine power/speed 360kW/1800rpm
Engine torque/speed 2200Nm/1300rpm
Emission standard EU Stage 3A
Track gauge × ground contact length × track shoe width 8000×9800×1350mm
