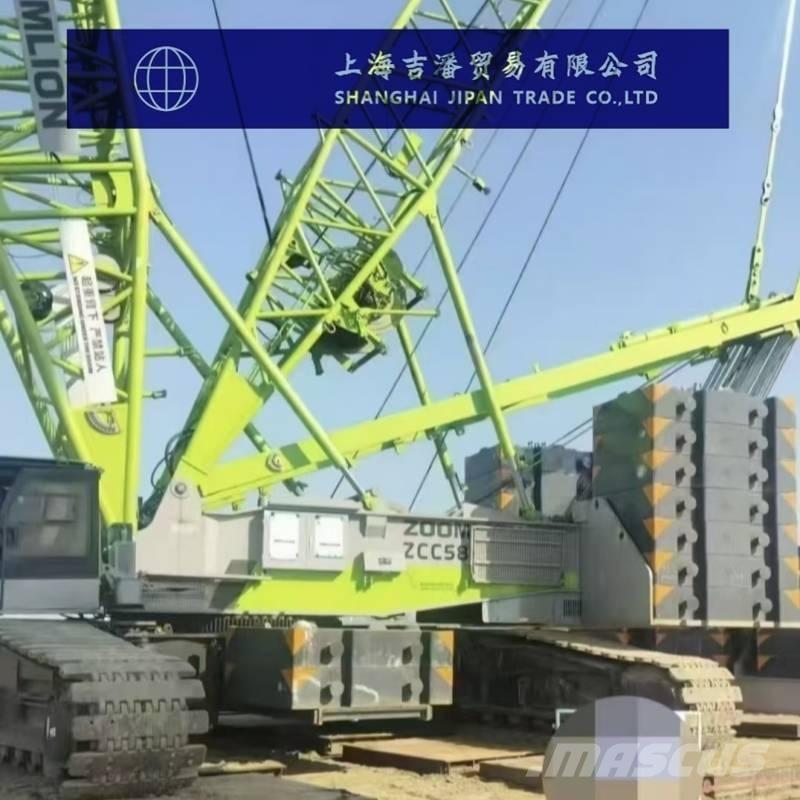

Zoomlion ZCC 5000

Fly Jib,Hook,Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Lifting capacity Maximum lifting capacity/amplitude: Standard 500×6 t×m, extra 500×12 t×m. The maximum lifting capacity of the luffing boom: standard 195×13 t×m, super 260×18 t×m. Arm length parameter Heavy-duty main boom: Standard 24 to 90 meters, super lift 36 to 96 meters. Lightweight main boom: Standard 48-108 meters, super lift 78-126 meters. The length of the luffing auxiliary arm is 24 to 84 meters. The longest main boom + the longest luffing auxiliary boom: standard 60+72 meters, super lift 84+84 meters. Standard working condition wind turbine boom main boom:84-108 meters, wind turbine boom 7 meters. Working speed Main lifting:0-137m/min. Secondary lifting:0-137m/min. Amplitude variation:0-50m/min. Auxiliary arm amplitude variation:0-123m/min. Super starting amplitude:0-143m/min. Goose head lifting:0-109m/min. Rotational speed:0 to 1.0rpm. Walking speed:0-1.0km/h. Overall machine parameters Self-weight with basic arm:378 tons. Maximum climbing capacity with basic main arm:30%. Average ground pressure with basic arm:0.139MPa. Mainframe transportation dimensions:12180×3345×3205mm (excluding mast). Maximum single piece transportation weight:48.6 tons. Engine parameters Power/Speed:360/1800kW/rpm. Torque/Speed:2200/1300Nm/rpm. Emission standard: EU Stufe 3A. Track parameters Track gauge × grounding length × track plate width:8000×9800×1350mm.
