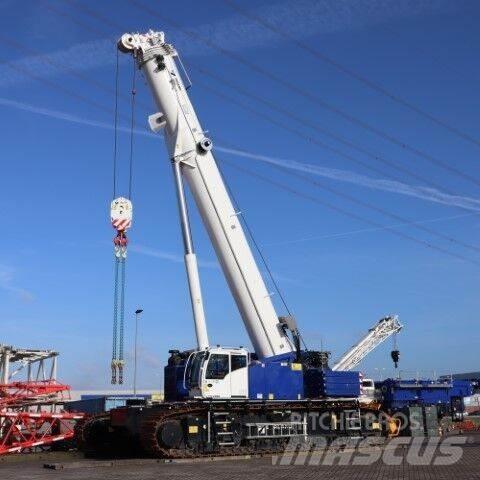

타다노 GTC-2000

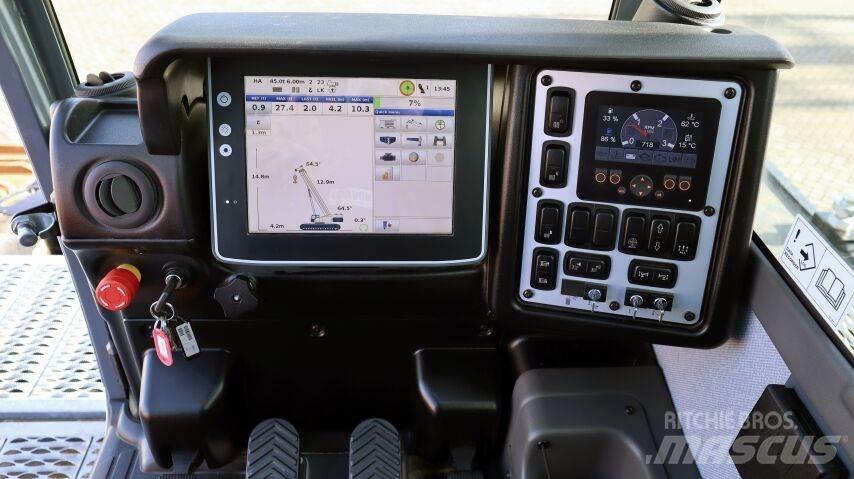

Carbody and superstructure Boom 12 m – 60 m telescopic ( 5 steel sheaves on boom head for max. lifting cap. 144.4 ton ) Winches H1 / one , including preparation for later retrofitting H2 Counterweight 45 ton - base plate 5 ton and 4 identical 10 ton cast slabs Central Cwt. 2 x 7.5 ton - anti slip top surface - large box integrated for storage of slings Crawlers Crawler shoes 2-grouser 1000mm Crawler drive GFT330 gearboxes with 1450kN Traction force with speed sensor Gradeability 50% Hook block 94 ton – 3-sheaves DH Options Rear view camera - blind spot camera on the right Rear lights for illuminating area behind crane Two adjustable floodlights at boom base section Automatic central lubrication system carbody and superstructure Air-conditioning in crane cab Engine independent heater superstructure cab with timer Hoist 1 visualization by camera system IC-1 plus (Slewing angle and track width related Capacity Chart) Fall protection at the counterweight - TOTEM Mast Aluminium lockable storage box for tools Electric emergency stop inside the cabin Seat heating = More information = Year of manufacture: 2022 Colour: White Engine type: Mercedes Benz MB OM 936 LA - 230 kW / 308 HP - Eu stage V / Tier 4F
