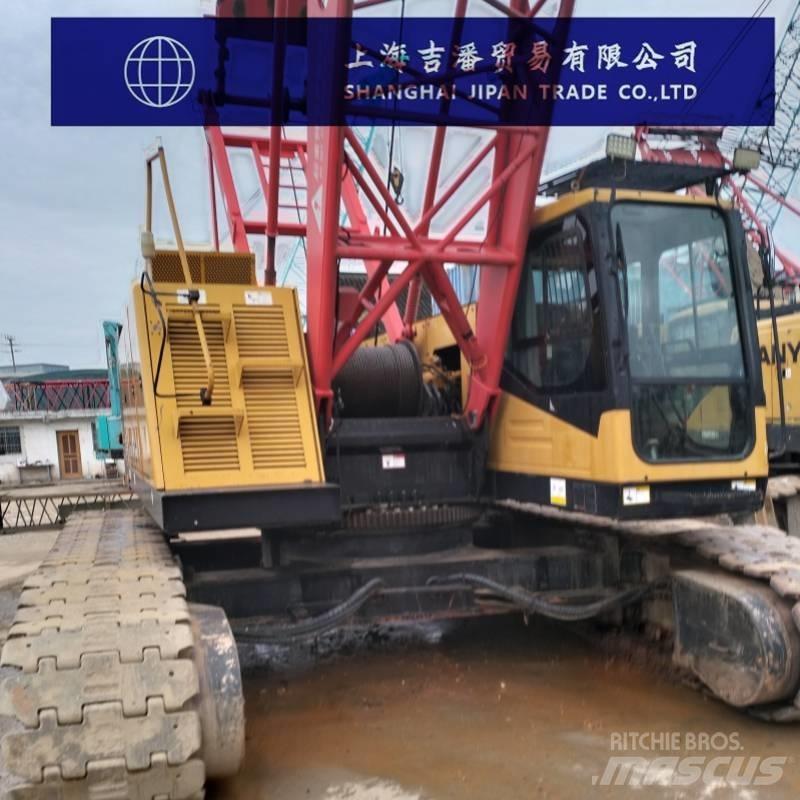

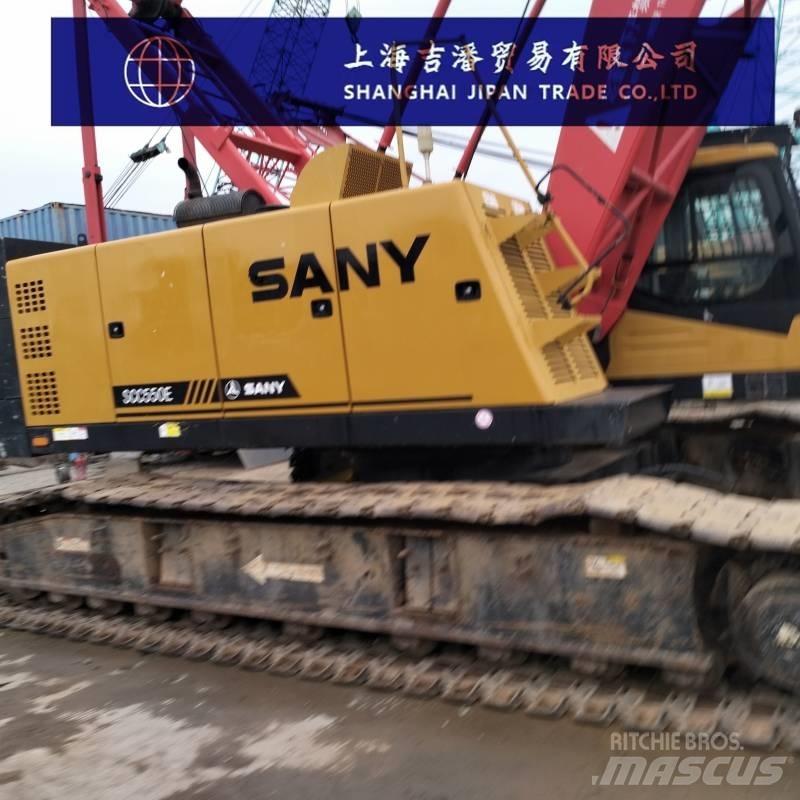

새니 SCC 550 E
부가세 제외가격
출력
INFO
제품군
트랙 크레인
제작사/모델
새니 SCC 550 E
제작년도
2018
사용시간
6000 시간
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
23E778E1
가격
화폐 선택
세부정보
재고번호
1
붐 종류
격자 모양
최근검사
2025-07-07
제조번호
1
기존 차주 수
1
총 중량
39000 kg
인양력
55000 ton
등록번호
1
지브 끝 쪽의 최대 리프팅 용량
55000 ton
붐 길이
15 미터
매연 등급
Stage V / Tier V
최소 붐 길이
3 미터
최소 러핑 지브
11 미터
루핑 집
15 미터
크레인 지브 길이
15 미터
인양 높이
42 미터
크레인 후크 높이 - 수평 지브
15 미터
크레인 후크 높이 - 러핑 지브
14 미터
오리지널 컬러
Original
엔진 제조사
Original
캐리어 유형
궤도식
상태 정보/보증
1 Year
앞 타이어 잔존수명
98
제품 국가
중국
운송 조건
FCA, FOB, CIF, EXW
증명서
미국 환경 보호국(EPA), 유럽 위원회(CE)
어태치먼트
Fly Jib ,Hook ,Counter Weight, ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
부속품
훅 블록
기타 정보
Lifting capacity
Maximum rated lifting capacity: 55 tons
The maximum lifting capacity of the main boom: 55t×3.7m = 203.5t·m
Arm length range
Main arm length: 13-52 meters
Speed parameter
The speed of the main and auxiliary hoisting ropes: The working layer can reach up to 120 meters per minute at the fastest
The speed of the main luffing hoisting rope can reach up to 72 meters per minute at the fastest
Walking speed: 0-1.2km/h
Rotation speed: 0-2rpm
Engine parameters
Output power/rated speed: 154kW/2200rpm
Transportation parameters
Maximum single-piece transportation weight (including the lower arm and the vehicle, without counterweight) : 28.5 tons
Chassis parameters
Working condition chassis dimensions: The outermost width is 4.5 meters and the length is 5.8 meters
Transportation status: Telescopic chassis, can be transported with counterweight, the overall width of the machine is less than 3.4 meters. When transported without counterweights, the main engine weighs less than 29 tons
Average ground pressure: 0.061Mpa
Other parameters
Equipped with ultimate load regulation and electronically controlled proportional speed control, it features excellent controllability of action and smooth operation. It is equipped with functions such as an electronic level, stop action when leaving the machine, and emergency electrical control, and is fully equipped with safety and monitoring devices.

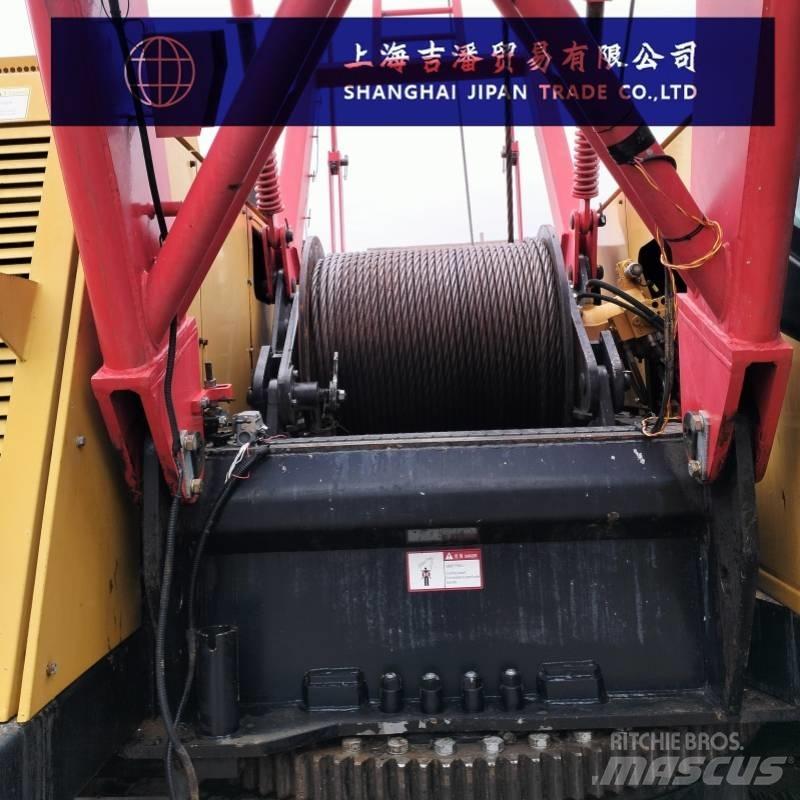

The use of a zigzag reel can effectively prevent the phenomenon of multiple layers of tangled ropes.
The cab is spacious and comfortable, equipped with adjustable seats, a radio and an air conditioning system.
