새니 SCA1000A
부가세 제외가격
POA
4
즐겨찾기
공유
검색 저장출력
INFO
제품군
트랙 크레인
제작사/모델
새니 SCA1000A
제작년도
2023
장비위치
Tulsa, Oklahoma
국가
미국
마스쿠스 ID
AFA6F3BC
세부정보
재고번호
New
기타 정보

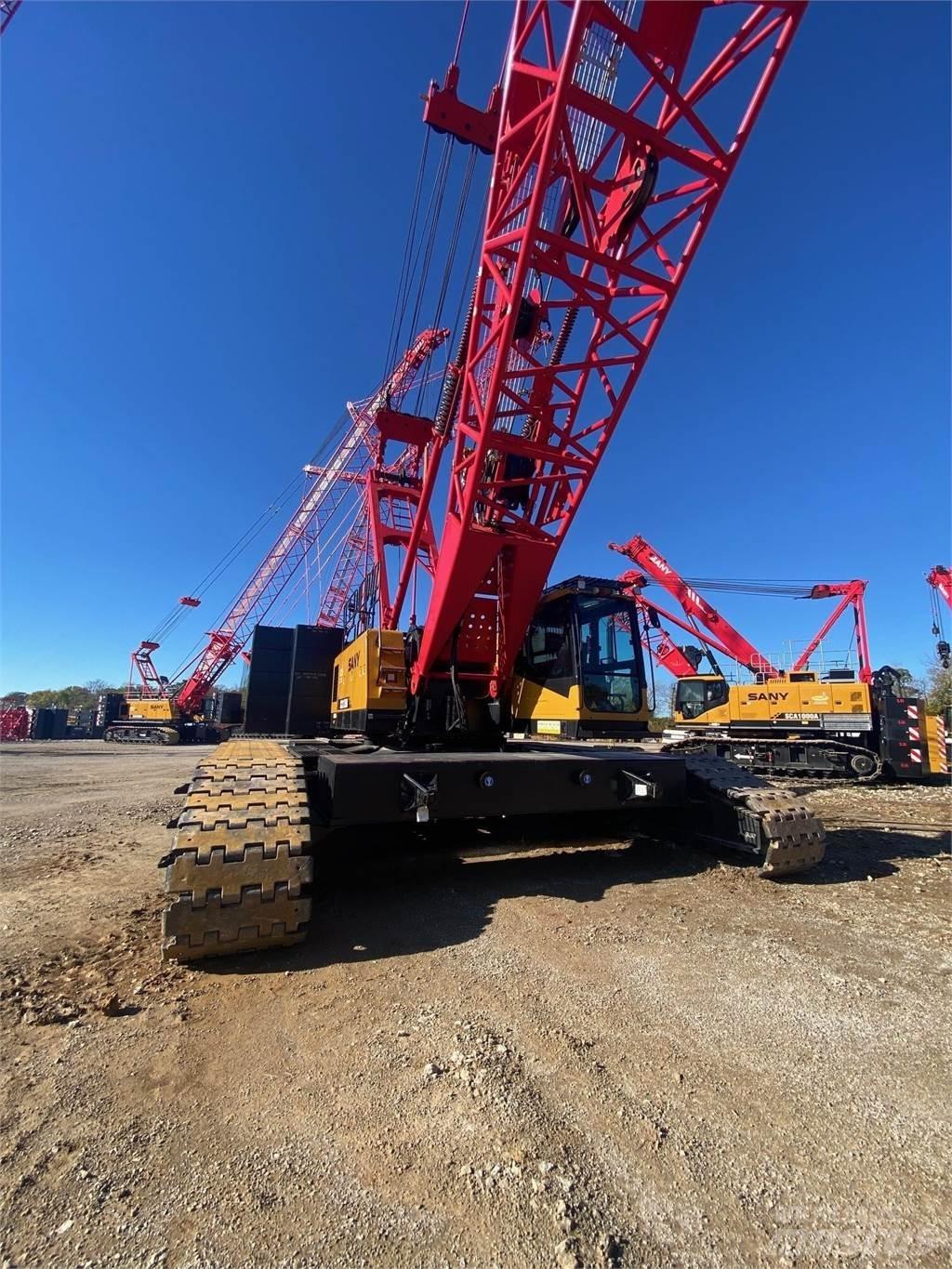

Description: One (1) New SANY America Hydraulic Crawler Crane model SCA1000A (110-ton US) Complete With standard options including • Boom: 210 ft • Fixed Jib: 74 ft • Auxiliary Main Boom Nose • Hoist: Main & Auxiliary • 3rd Drum • LMI System • Block: 100t 5-sheave, 50t 3-sheave, 25t 1-sheave • Ball: 13.50t • Engine: Model: Cummins QSL9-C334 Diesel engine, Type: 4-stroke, water-cooled, Vertical in-line 6 cylinders, direct injection, turbocharger, intercooler, complied with European Off-way Tier IV Emission Standard, displacement: 8.9L, Rated power 249kw/2100rpm, Operation power: 247kW/1800rpm, Max. Torque: 1424N·M/1500rpm. • Electrical Control System Self-developed SYNC-II integrated control system is adopted with Higher integration, precise operation and reliable quality, Control system consists of Power system, engine system, main control system, LMI system, auxiliary system And safety monitoring system. CAN BUS is used for data communication between? Controller, monitor and the engine, Monitor: the working parameters and status are Shown on the monitor, such as the engine speed, fuel volume, engine oil pressure, Servo pressure, engine working hours, lifting conditions and boom angle. • Cab and Control: Novel operator's cab with fashionable profile, nice interior and large Window glass. There are low and high-beam lights, back-view mirror, heater, and A/C, Radio and other functions. The layout of seat, handles, control buttons are designed With ergonomic principles to make operation more comfortable, Cab layout: Integrated 10.4inch touch screen, programmable smart switches, and man-machine interaction Interface are more improved, Armrest box: on the left and right armrest box are controle Handles, electrical switches, emergent stop and ignition switch, the armrest box can be Adjusted along with the seat, seat: multi-way and multi-level floating adjustable seat with Unload switch, A/C: cool and heat air; optimized air channels and vents, Multiple Cameras can present on the monitor at the same time to realize backing video, real-time Monitoring of wire rope on each winch, conditions behind the counterweight and Surrounding the machine • Counterweight: Counterweight tray and blocks are piled up for easier assembly and transport Rear counterweight is self-assembled, total 31.2t, Self-assembled counterweight: tray 9.9t×1, left counterweight block 3.45t×3, and right counterweight block 3.45t × 3, cylinder Bracket 0.6x1, Carbody counterweight: 5.5t×2 at the front and rear of carbody • Crawler Extension and Retraction the crawlers can extend and retract via cylinders. During Work Mode, the crawlers must be extended, and retracted during transport with crawlers on When there are no restrictions • Anemometer: It is mounted on the top of boom/jib, and displayed on the monitor in the Cab. • Electronic Level Gauge It displays the tipping angle of crane on the monitor in real time, Protecting the machine from dangerous situation • •Warranty: 3-year or 3,000-hour Factory Warranty
AirConditioning: Yes
EngineMake: CUMMINS
Heater: Yes
Camera: Yes더 보기
