Mantis 20010

부가세 제외가격

POA

Compnay LOGO
Images1

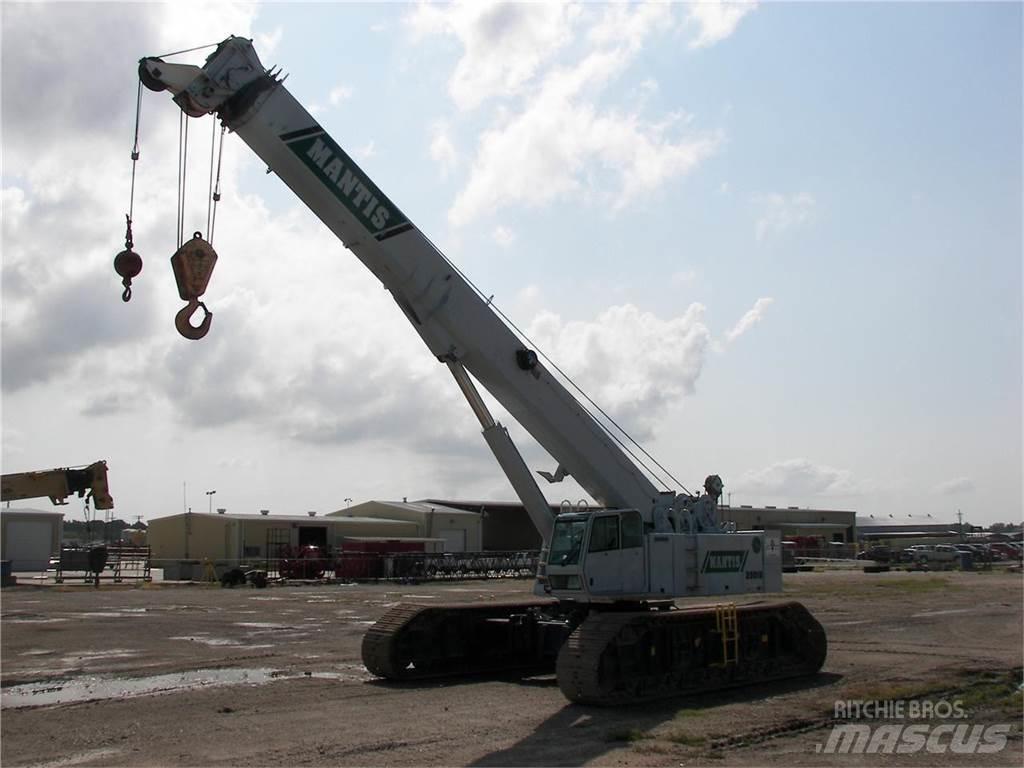

Mantis 20010 트랙 크레인
Favorite즐겨찾기
share공유
Save search검색 저장
출력

INFO

제품군
트랙 크레인
제작사/모델
Mantis 20010
제작년도
2008
장비위치
Houston, Texas
국가
미국
마스쿠스 ID
AE9EECA6

세부정보

제조번호
200-106
기타 정보
Description: 128' 4 sec boom,35' swing away,25'jib,Cummins QSM11 330 HP dsl eng 2008 Mantis 20010,100 ton capacity rough terrain hydraulic telescopic boom crawler crane with all standard equipment and; OPTIONAL EQUIPMENT – BOOM ATTACHMENTS: Boom Extension: 35’ (10.67 m) lattice type swingaway, stores alongside of the boom base section and used with or without the optional 25’ (7.62 m) jib. Head contains two 22” (559 mm) diameter high strength cast nylon sheaves mounted on heavy-duty roller bearings, reeving up to 2 parts of wire rope, with optional extension deployed maximum tip heights is 172’ (52.43 m). Boom Jib: 25’ (7.62 m) lattice type swingaway, attaches to and stores alongside the extension and can only be used with the extension deployed. Offsets are at 15 degree & 30 degree; with optional jib and extension deployed maximum tip height is 196’ 6” (59.89 m). Auxiliary Nose Sheave: Quick reeve, single 22” (559 mm) diameter high-strength, cast nylon sheave mounted on a heavy-duty roller bearing boom tip adapter. Headache Ball: 12 ton (11 mt) ball includes a swivel hook with safety latch. Hook Block: 100 ton (91 mt) hook block consists of five 20” (508 mm) diameter sheaves mounted on heavy-duty roller bearings with a swivel hook and safety latch. BoomSize: 128 ft더 보기
