INFO

제품군
트랙 크레인
제작사/모델
Link-Belt LS-238H
제작년도
2002
장비위치
Mexico
국가
멕시코
일반 등급
1
2
3
4
5
마스쿠스 ID
922407AD

가격

화폐 선택

세부정보

재고번호
989
인양력
150000 ton
인양 높이
30.5 미터
어태치먼트
https://freecranespecs.com/Link-Belt/LS-238H
기타 정보

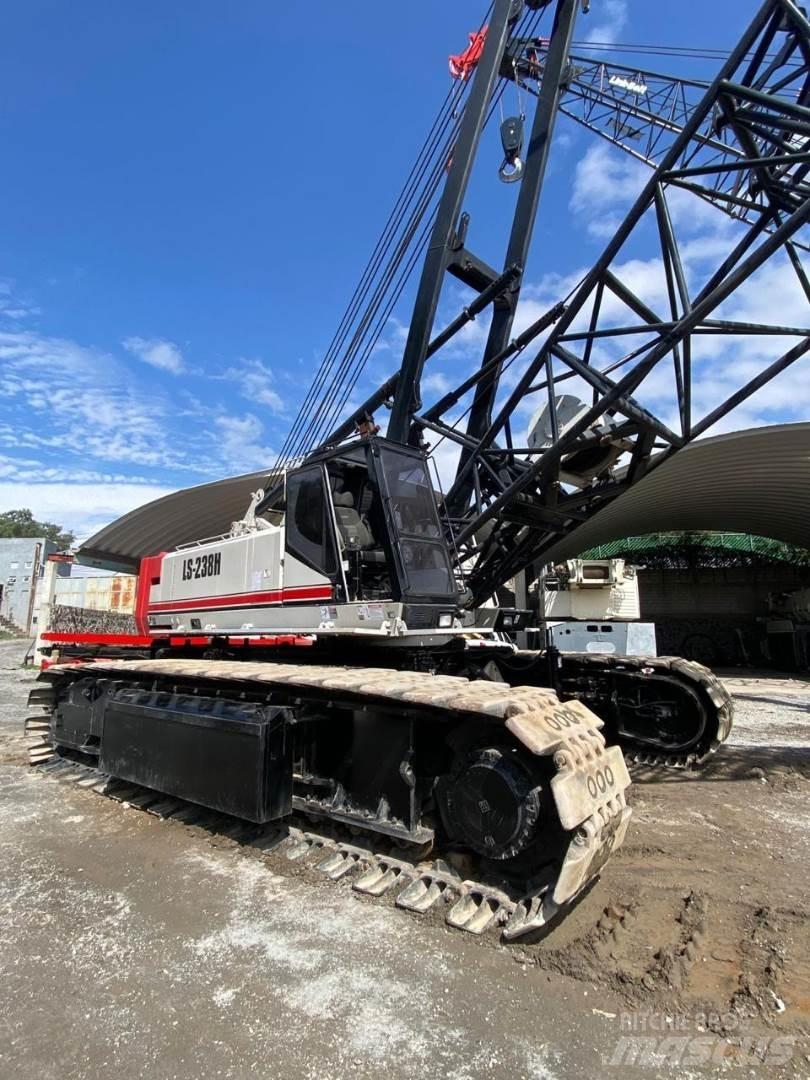

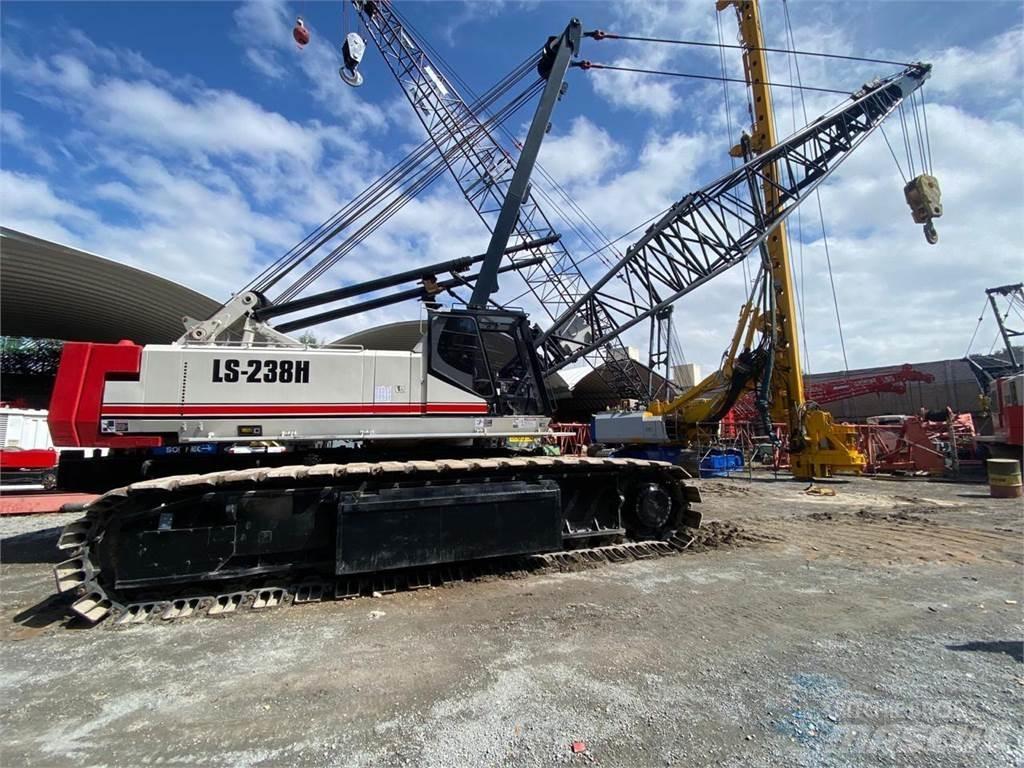

2002 Link-Belt LS238H, 150 Ton Lattice Boom Crawler Crane; CranesList ID: 989, 100' Main Tubular Boom consiting of 1 x 20' Base Section, 1 X 30' Point Section, *1 X 10' Insert, *1 X 40' Inserts (*These inserts are currently located in Texas) No Jib,  Main and Auxiliary Winches with 7/8" wire rope, Two Speed, Drum Rotation Indicator, Power Load Lowering and Freefall, Load Indicator with Anti-Two Block, Independent hydraulic travel/steering, Catwalks - Standard on right and left sides. Catwalks remove for reduced travel width. Hook Block, "A - 23,000#, B - 19,330# , C - 26,670# upper. = 69,000#  Total Complete Counterweights,   19' 2" Wide Link-Belt Carbody, Isuzu 6SD1TQB, 6 Cylinder Diesel Engine, 44" Track Shoes, 42 shoes per side frame, Certification In Progress. ... IN MEXICO!

Craneslist

3350 E. 7th ST #512 90804 Long Beach California 미국
