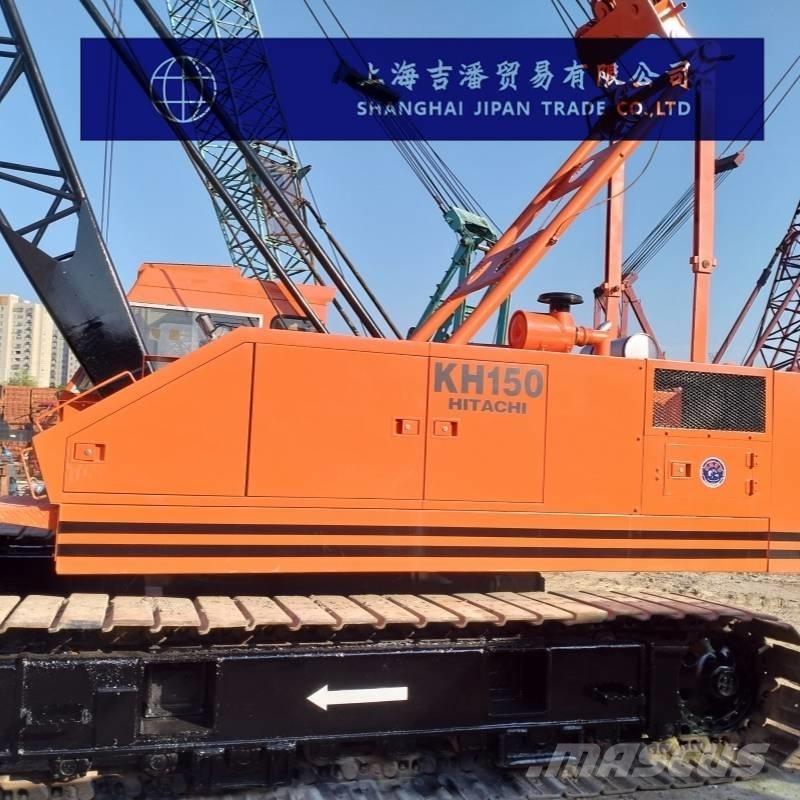

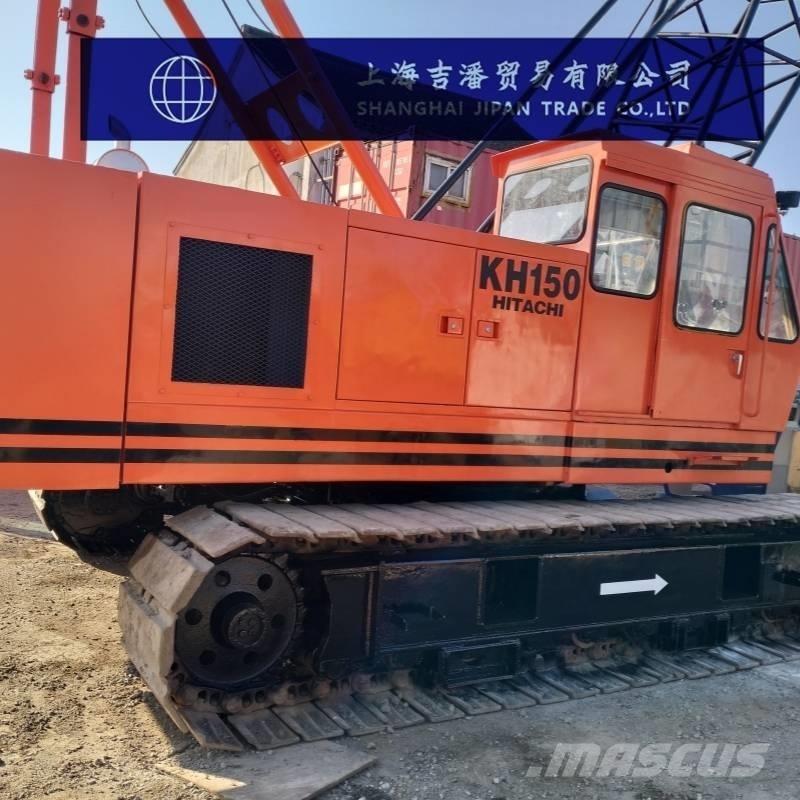

히타치 KH 150-3

Fly Jib Hook Counter Weight We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting capacity Maximum rated lifting capacity:40 tons (when the working radius is 3.7 meters) Rated total load: Fixed load service value on horizontal solid soil, within 78% of the tilting load, fixed for mobile structure specifications, with a front stability of 1.15 or above. Boom system Basic arm length:10 meters Maximum arm length:46 meters Arm length increase:6.10-15.25 meters The maximum length of the main arm and the auxiliary arm is 40+15.25 meters Working speed The loading speed of the main and secondary coils (high/low):74/37m/min The lower speed of the main and secondary rolls:63 meters per minute Boom winding speed:63 meters per minute The retraction speed of the boom:63 meters per minute Rotational speed:3.4 R.P. Walking speed:1.6km/h Climbing ability and ground pressure Climbing ability:40% (when 13m arm and 1.0m² grab bucket) Ground pressure:0.61kg/cm² (when the arm is 13m and the grab is 1.0m²) Power system Rated output: 155PS/2100 R.P. Overall weight: approximately 43 tons (with a 13m arm and a 1.0m² grab bucket) Other parameters Hook capacity:0.8m³，1.0m³，1.2m³ Rear radius:3.850m
