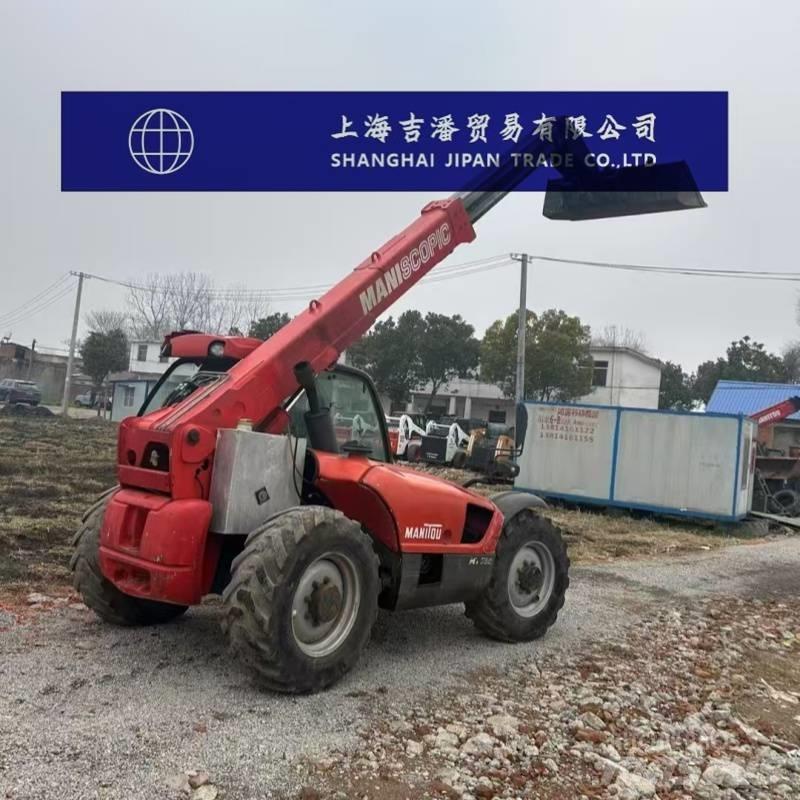

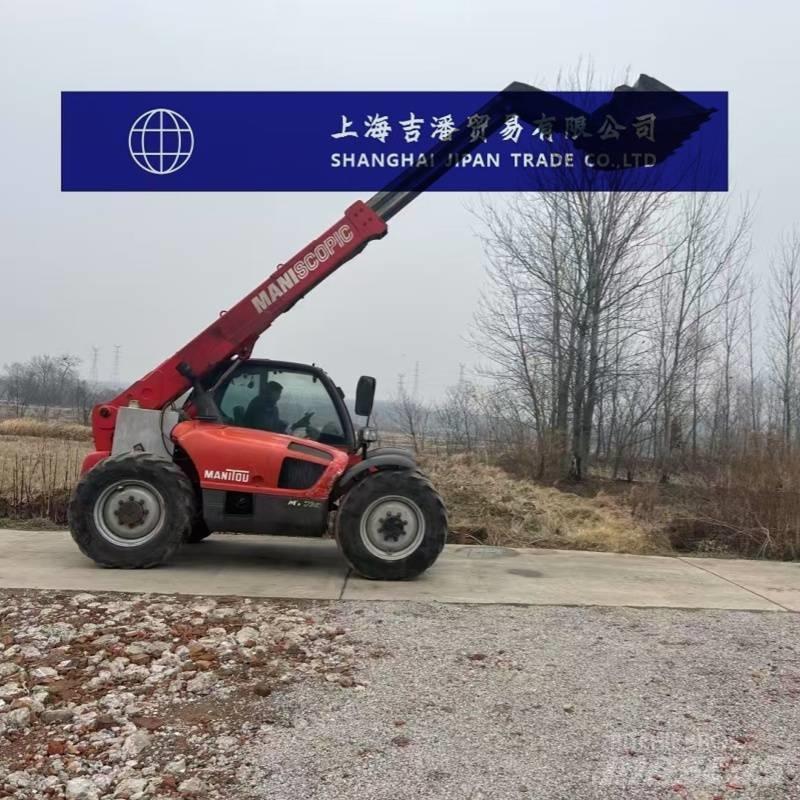

매니토우 MT 732

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic performance Engine power (kW)61.5/2200 Operating weight (kilograms) : 7250 Rated load (kg) : 3200 Horsepower (100 horsepower) or less Maximum load (in kilograms) : less than 3,500 kilograms Job parameters Maximum lifting capacity (kg) : 3200 The lifting Angle range is from the lowest to the highest (°)-0.047619048 Maximum lifting height (m) : 6.9 Maximum external elongation (m)4.16 Unloading distance (at the maximum height) (mm) : 1.15 The maximum external elongation overturning load (kg) is 1620 Turning radius (m) : 4805 Engine Model: Perkins 1104C-44 Rated power (kw/rpm) : 61.5/2200 Maximum torque (N.m) : 302/1400 Displacement (L) : 4.4 Hydraulic system The maximum working pressure of the system (bar) is 240 The maximum system flow rate (L/min) is 105 Transmission system Tire size: 400/80-24 156 A8 TL Oil capacity Fuel tank (L)120 Oil tank (L)10.5 Engine coolant (L)18.5 Transmission fluid (L)15.5 Hydraulic system (L)125 Overall dimensions The total length of the entire machine is 5967 mm The total length of the entire machine is 4767 mm The overall width of the machine (mm) is 2261 The total height of the entire machine (mm) is 2550 Cab height (mm) : 2300 The height of the steering wheel from the ground (mm) is 1690 Wheelbase (mm) : 2560 Track (mm) : 1846 Ground clearance (mm) : 440 Departure Angle (°)53
