아트라스 콥코 GA 37

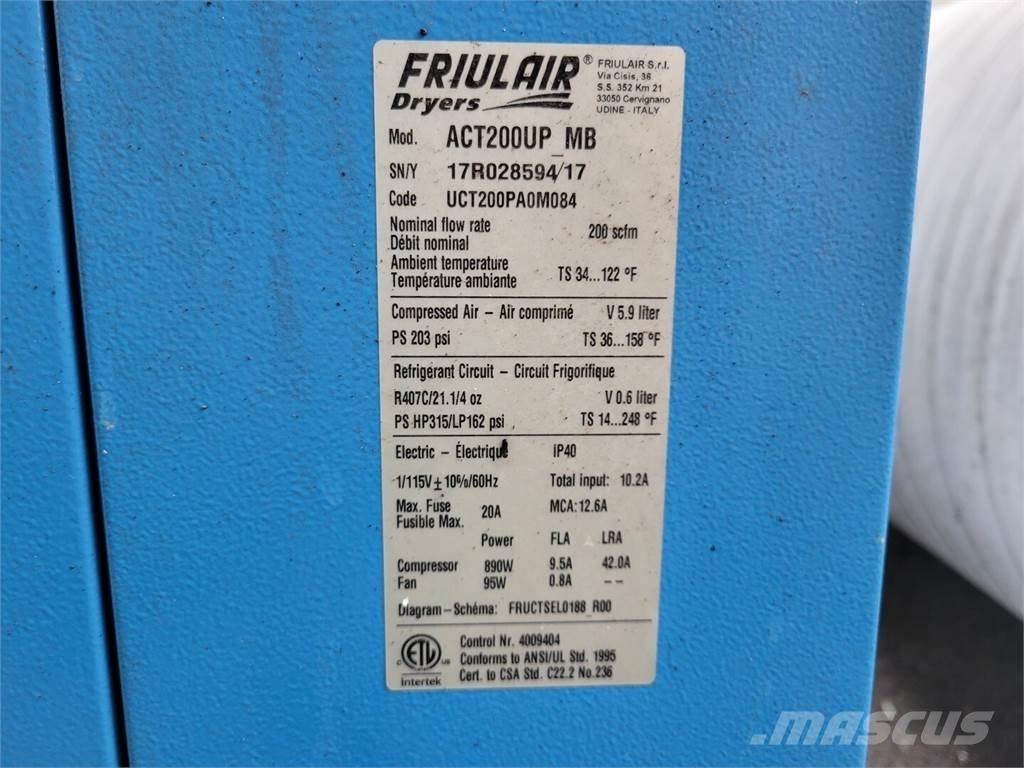

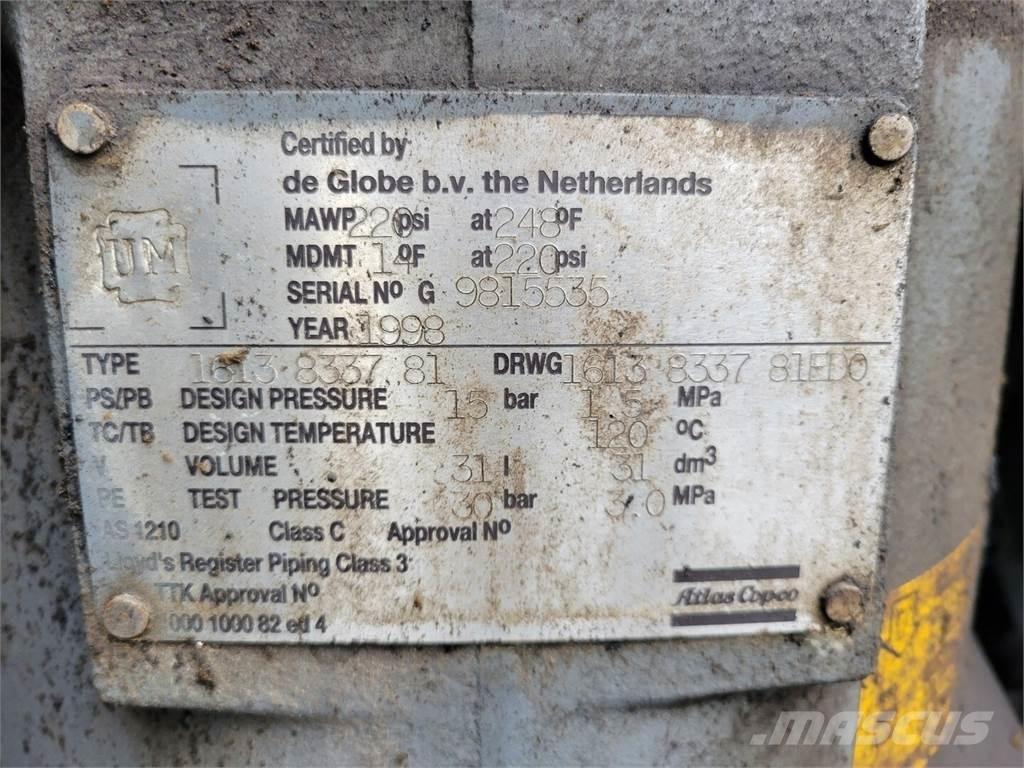

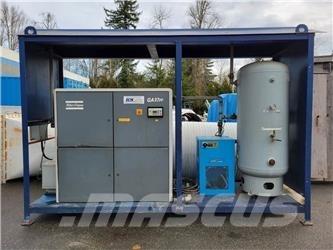

103 CFM, 132P PSI Rotary Screw Air Compressor GA37 w/ External Air Dryer Title: 103 CFM, 132P PSI Rotary Screw Air Compressor GA37 w/ External Air Dryer SKU: 101075 Model: GA 37 Year: 1998 Condition: Used S/N: AII 360359 GeneralCFM:103cfm Compressor Air Type:Rotary Screw Power Type:Electric Max. Pressure:132psi Mount:Skid Mounted Tank Size:31 Litres HistoryHours:33196 Load Hours:26669 ElectricalHorsepower:50hp Voltage:575volts Amps:47.5amps Phase:3-phase Made In: BELGIUM Dimensions: 105.00 (H) x 48.00 (W) x 180.00 (L) inches ** Skid consists of Compressor, Air Dryer, Tank, Transformer, and Heavy Duty Safety Switch Compressor Max Speed: 3600 rpm Control Cubicle: - Control Voltage: 115 VAC / 24 VDC - Supply Voltage: 575 V - Rated Current: 71 A - Max. Motor Power: 69 hp Built-in Tank: - Volume: 31 Litres - MAWP: 220 psi ... 248oF - MDMT: 14oF ... 220 psi Built-in Air Dryer: - Voltage: 200/230 V, single-phase - Power: 2.3 kW - Compressed Air Pmax.: 13 bar - Tmax.: 55oC - Refrigerant: R404A - Refrigerant Amount: 1.3 kg - Refrigerant Pmax. High: 31 bar External Air Dryer Brand: Friulair Dryers Model: ACT200UP_MB Nominal Flow Rate: 200 scfm Compressed Air: 203 psi, 5.9 Litre, 34 to 122oF Refrigerant R407C: 162 psi, 0.6 Litre, 14 to 248oF External Tank Overall Height" 79" Overall Diameter: 31" Transformer Type: Auto Power: 75 kVA Phase: 3 Primary: 600Y/347 V Secondary: 480Y/277 V Heavy Duty Safety Switch Amps: 100 A Volts: 480/600 V
