멧초 MC4280T

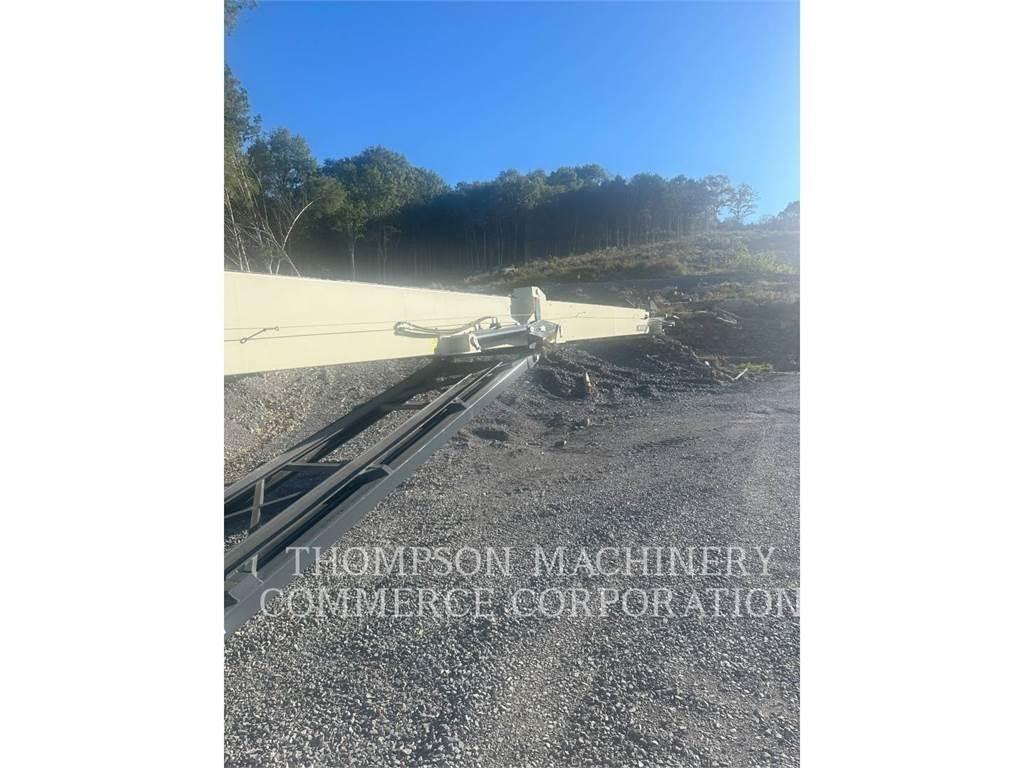

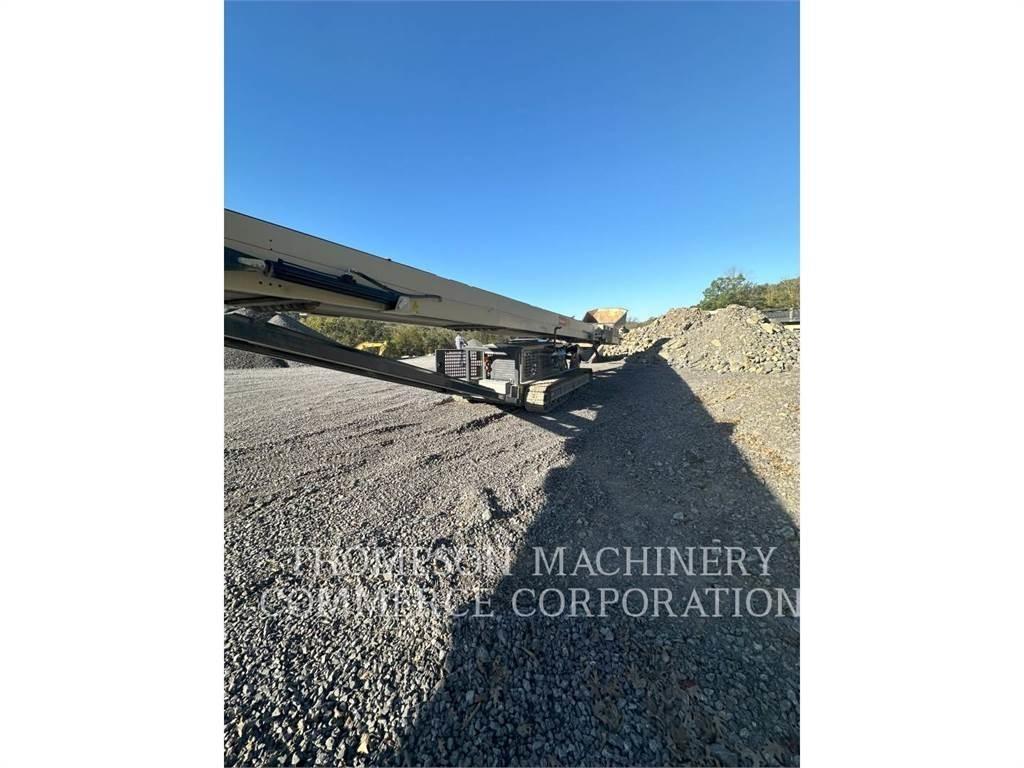

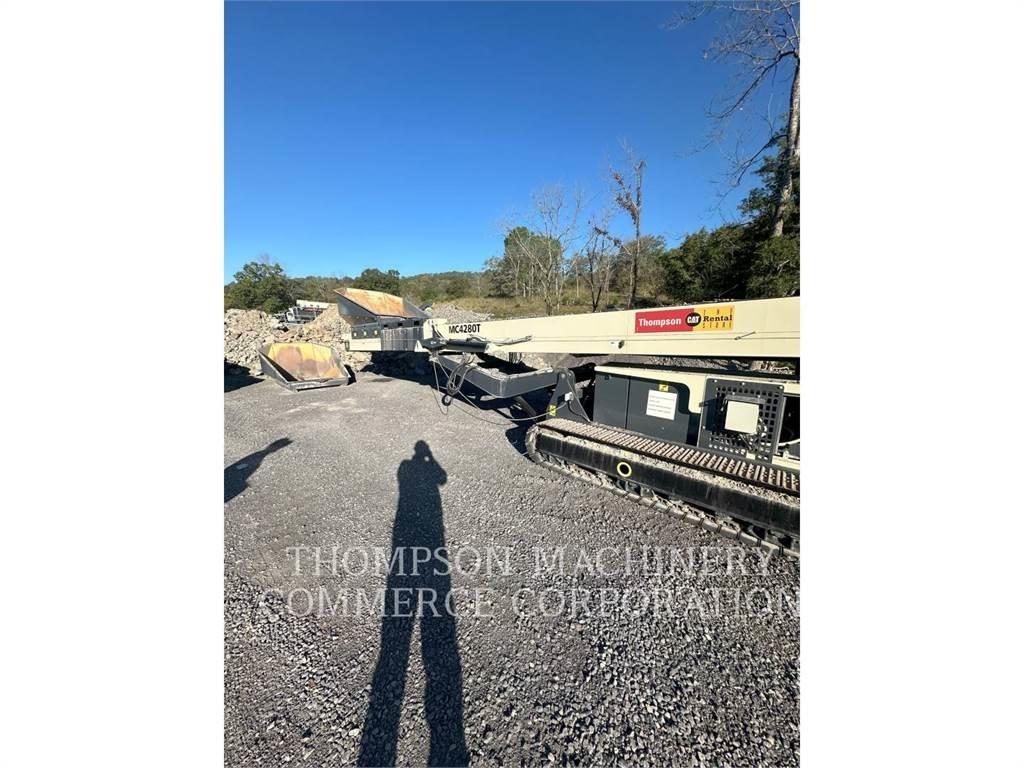

Standard 42” wide x 80’m long track Conveyor manufactured in 3 No. 20” deep channel type folded construction sections with the following specification. This unit is suitable for 600TPH of minus 8” stone Conveyor Belt EP630 4 ply with 1⁄4” and 1/8” covers heavy duty belt. Reception Hopper 4yd3 capacity Impact Rollers under Feed point Wear Liners in Reception Hopper Heavy Duty Box section support trestles with manual variable inclination Undercarriage with Strickland 12’ long crawler tracks operated by dog lead control Rulmeca roller sets 4” diameter and rubber disc return rollers, impact rollers in feedboot Drive motors – 2 no Sauer Danfoss OMV 630 Hydraulic Motors coupled to rubber lagged drive pulley. Hydraulic folding of Head and Tail Section Emergency Stop Pull Cords Diesel Hydraulic Power Pack with Caterpillar C2.2 Tier 4 Final/Stage V Engine 73HP
