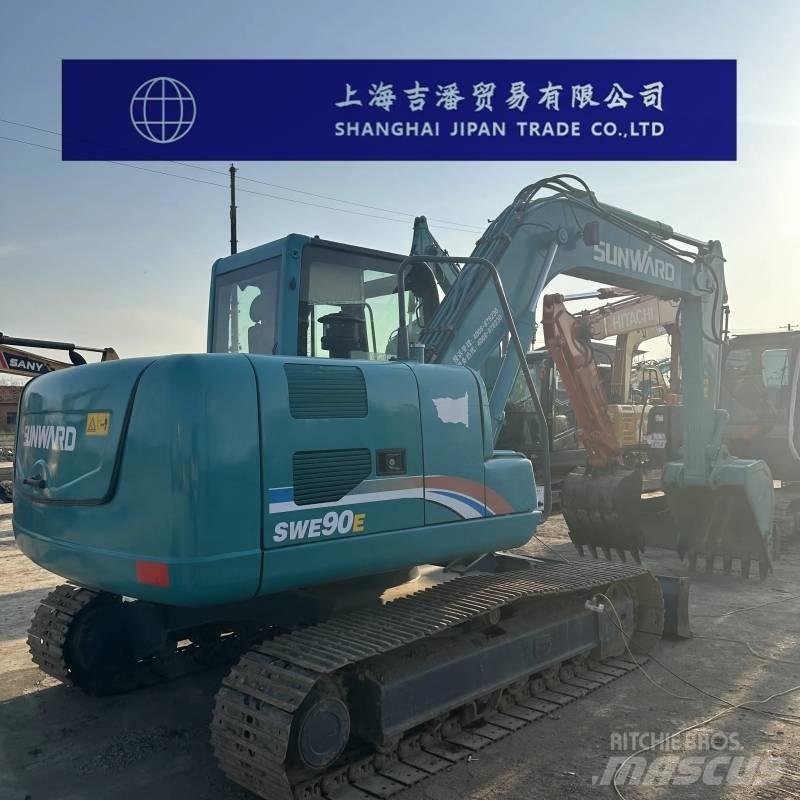

선워드 SWE 90 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of the SWE90E excavator from Sunward Intelligent Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)9 The working weight of the entire machine (kg) is 8,900 Bucket capacity (m³) : 0.36 Performance Rotational speed (rpm)9 Walking speed (km/h) : 4.5/2.5 Ground specific pressure (Kpa)39 The bucket digging force (kN) is 67.5 Bucket shaft digging force (kN)46 Power system Engine model: V3800-DI-T-E2B Rated power (kw/rpm)54.6/2200 The cooling method is water cooling Main body size The total length of transportation (mm) is 6400 The total transportation width (mm) is 2370 The total transportation height (mm) is 2625 The total height of the cab (mm) is 2,665 The width of the vehicle (mm) is 2250 Track grounding length (mm) : 2335 The total length of the track (mm) is 2920 Track plate width (mm) : 450 Minimum ground clearance (mm) : 350 The ground clearance of the counterweight (mm) is 800 The minimum turning radius (mm) of the front working device is 2045 The rear end turning radius (mm) is 1800 Scope of work Maximum excavation radius (mm) : 6725 The maximum excavation radius (mm) of the shutdown face is 6585 Maximum excavation depth (mm) : 4205 Maximum excavation height (mm) : 7275 Maximum unloading height (mm) : 5150 The maximum vertical excavation depth (mm) is 3680 The width × height (mm) of the bulldozer board is 2320×415 The bulldozer shovel lifts or deepens (mm)405/330
