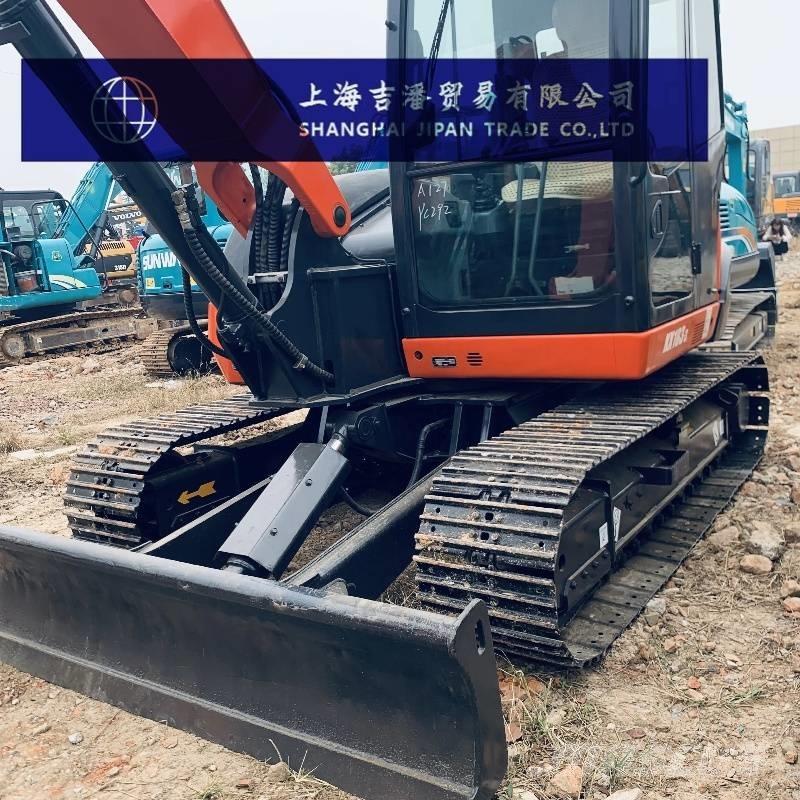

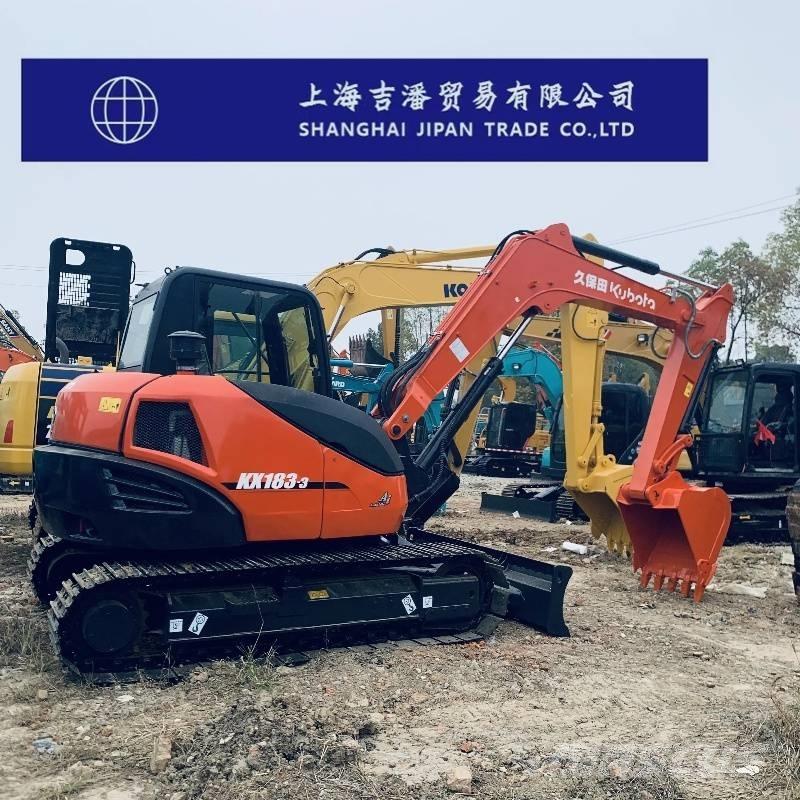

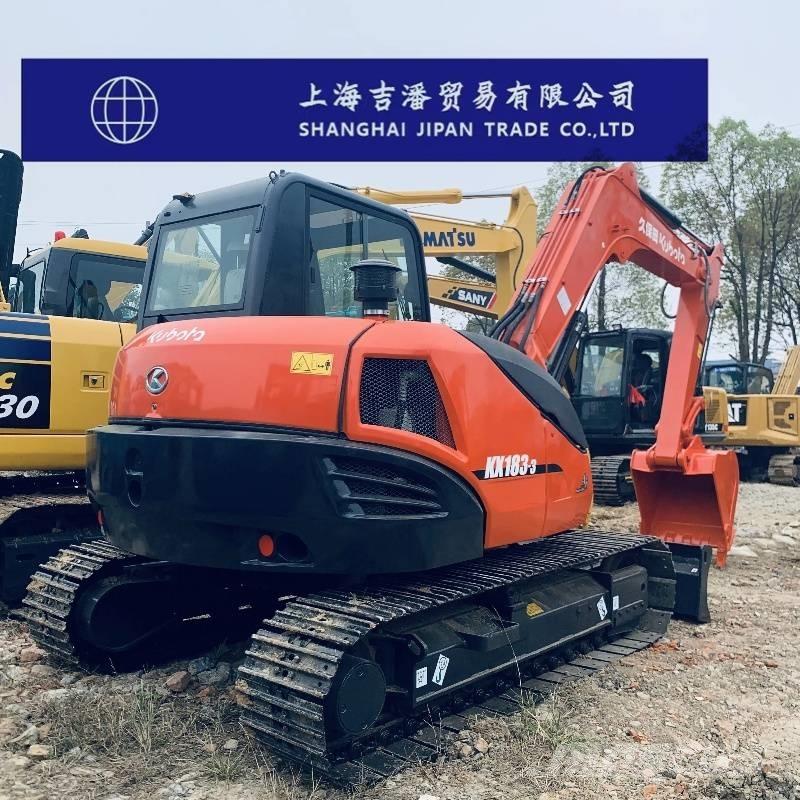

구보다 KX 183

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information Operating Weight: 8350kg Bucket Capacity: 0.31m³ Country of Origin: Japan Power System Engine Model: Kubota Rated Power: 47.8kW/2000rpm Displacement: 3.331L Cooling System: Water-cooled Fluid Capacities Fuel Tank: 115L Dimensions Overall Transport Length: 6450mm Overall Transport Width: 2200mm Overall Transport Height: 2530mm Total Cab Height: 2530mm Total Track Length: 2840mm Track Shoe Width: 450mm (Steel Track) Track Gauge: 1750mm Minimum Ground Clearance: 364mm Rear Swing Radius: 1460mm Working Range Maximum Digging Radius: 7010mm Maximum Digging Radius at Ground Level: 6850mm Maximum Digging Depth: 4290mm Maximum Digging Height: 7040mm Maximum Dumping Height: 4980mm Maximum Vertical Digging Depth: 3490mm Dozer Blade Width × Height: 2200mm × 500mm Dozer Blade Lift or Push Depth: 470mm × 530mm Performance Parameters Swing Speed: 9.5rpm Travel Speed: 2.7/4.9km/h Gradeability: 30% Bucket Digging Force: 65.2kN Hydraulic System Main Pump Type: Variable displacement pump × 2 + Gear pump × 1 Travel Hydraulic Motor Type: Piston hydraulic motor: 2F Swing Hydraulic Motor Type: Piston hydraulic motor
