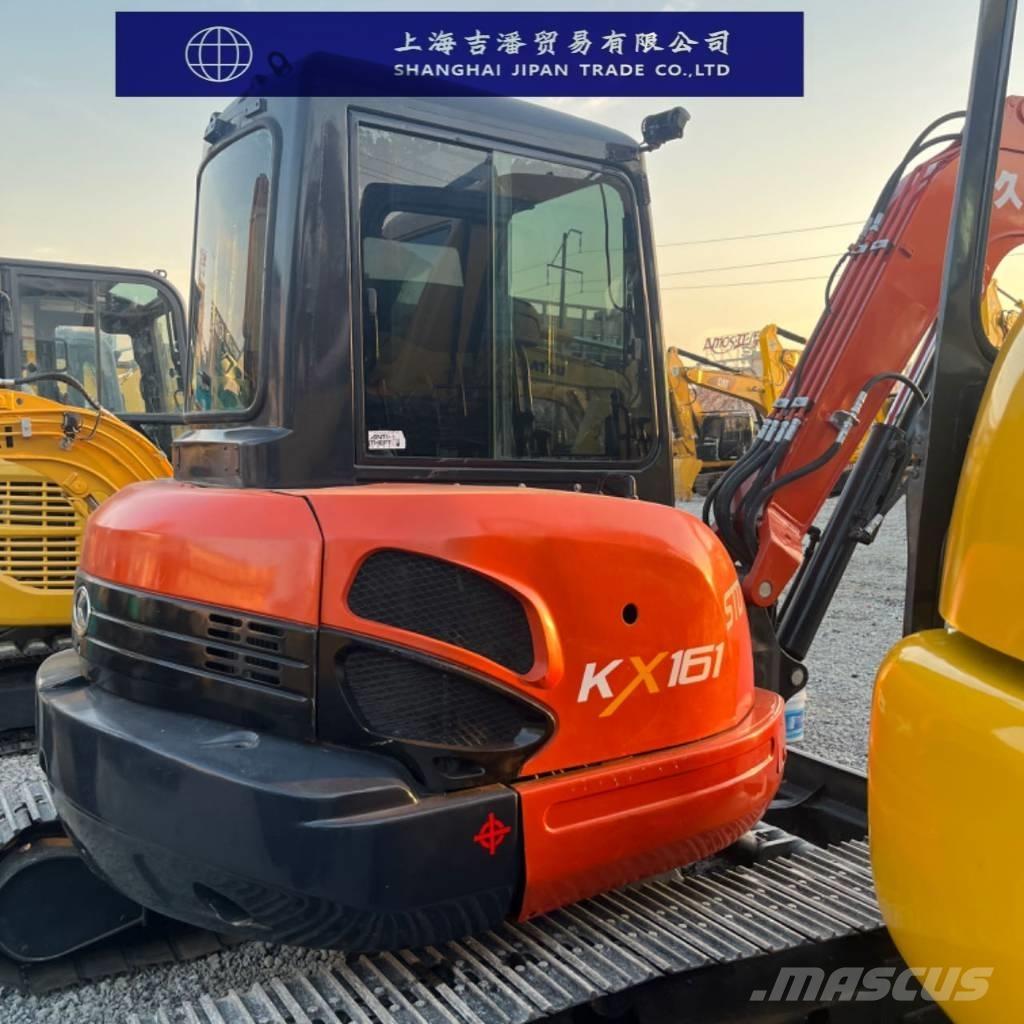

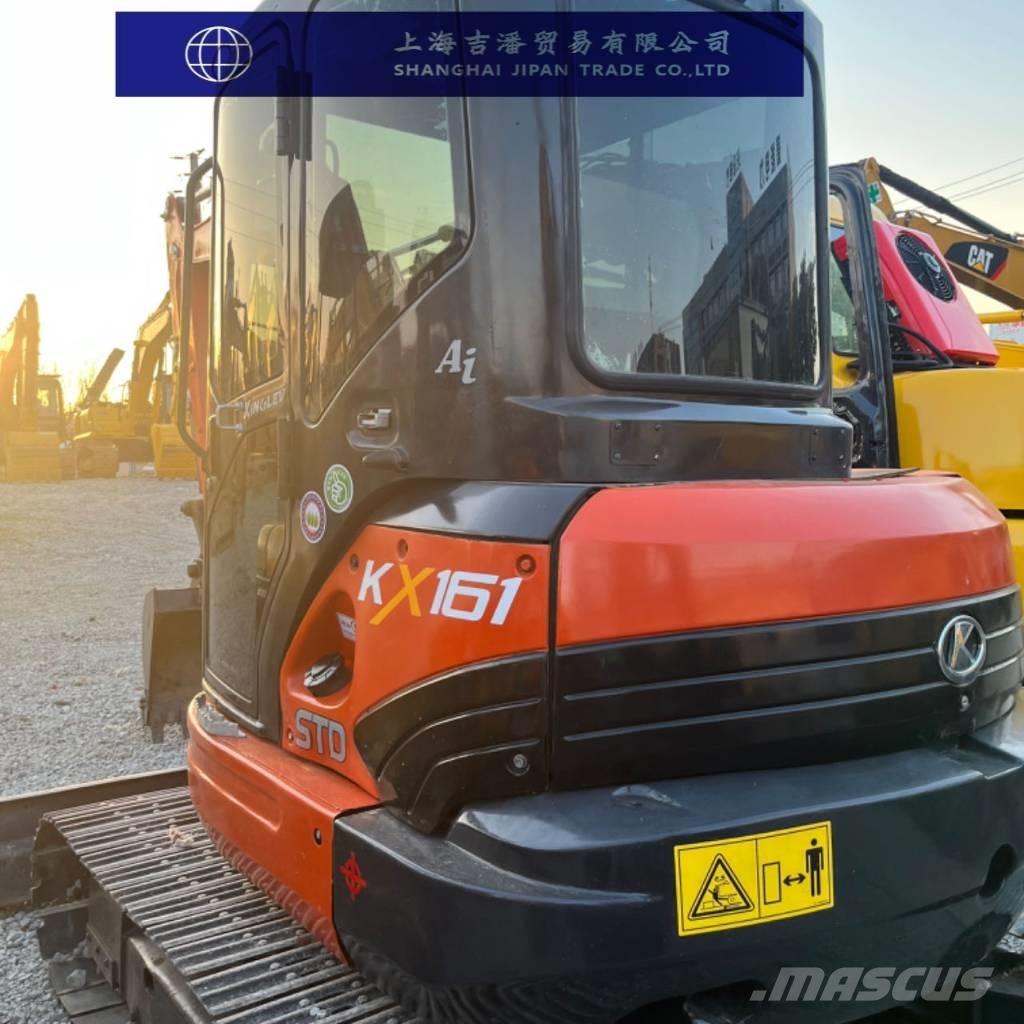

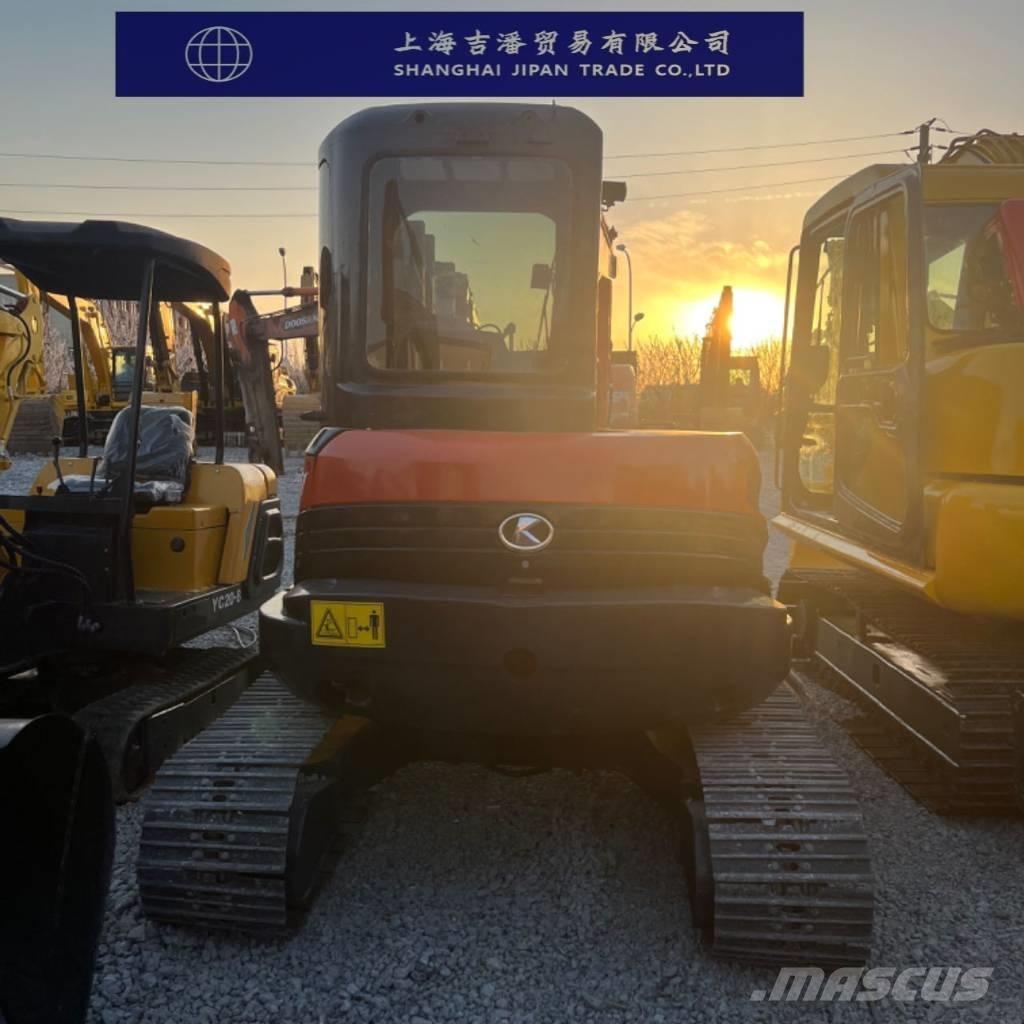

구보다 KX 161

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information: Operating Weight: 5675kg Bucket Capacity: 0.22m³ Travel Mode: Crawler-type Overall Dimensions (Transport State): Length 5540mm × Width 2110mm × Height 2540mm Engine Parameters: Engine Model: Kubota V2403-M Rated Power: 34.6kW/2200rpm Displacement: 2.434L Cooling System: Water-cooled Performance Parameters: Travel Speed: High 2.5km/h, Low 4.6km/h Swing Speed: 9.3rpm Climbing Ability: 30% Bucket Digging Force: 39.8kN Crawler Parameters: Total Crawler Length: 2500mm Crawler Plate Width: 550mm Total Crawler Width: 2110mm Crawler Gauge: 1560mm Minimum Ground Clearance: 320mm Working Range: Maximum Digging Radius: 6290mm Maximum Digging Depth: 3860mm Maximum Digging Height: 5770mm Maximum Dumping Height: 4125mm Maximum Vertical Digging Depth: 2995mm Boom Swing Angle (Left/Right): 50°/80°
