코벨코 SK 75

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

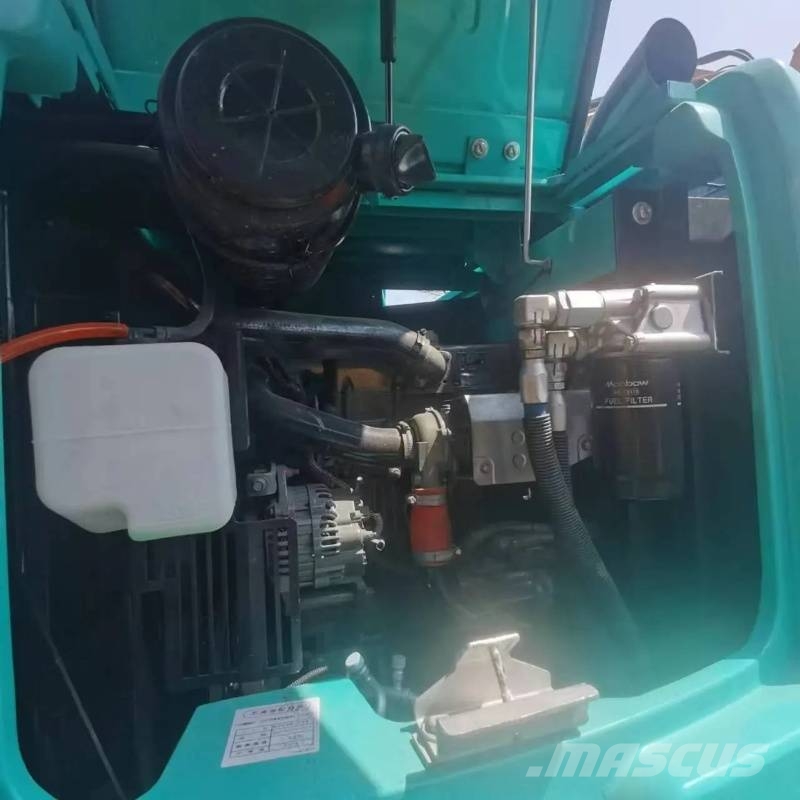

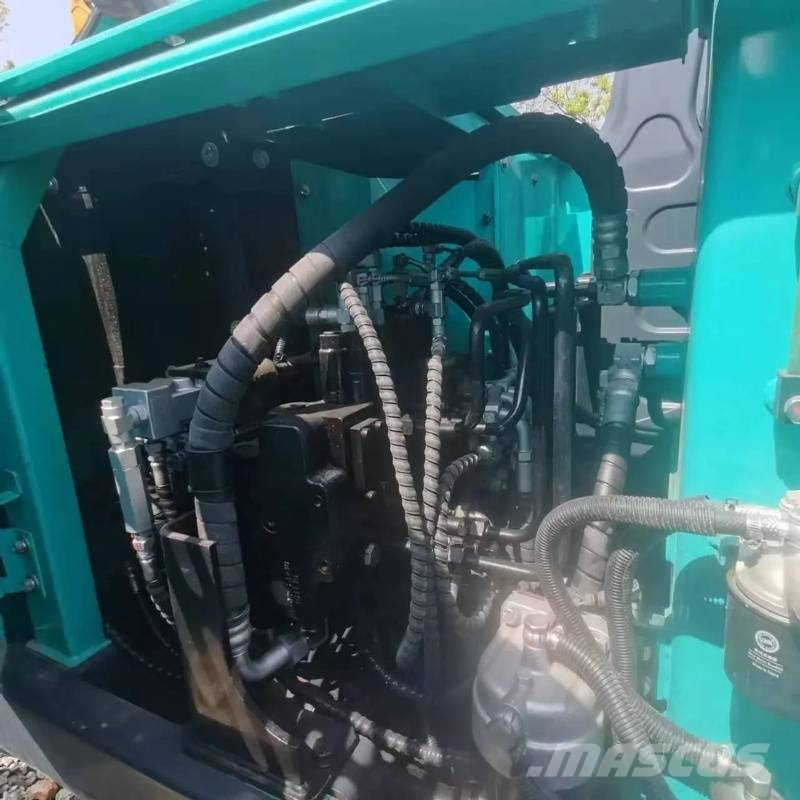

## Engine - Model: **Isuzu 4LE2XCUA, 4‑cylinder turbo intercooled direct‑injection diesel**抖音百科 - Net rated power: **41 kW (54.9 HP) @2200 rpm (ISO9249)**Kobelco Co... - Displacement: **2.179 L**抖音百科 - Emission: EU Stage IIIA / China Non‑Road Stage III, no DPF/SCR urea systemKobelco Co... ## ⚙ Operating Weight & Counterweight - Cab version operating weight: **6850 kg** (steel tracks, standard bucket, dozer blade)抖音百科 - Counterweight: approx **1100 kg** - Tail swing radius: **1750 mm (conventional tail swing)**神钢建机(... ## 📐 Transport Dimensions (standard boom+1710 mm stick, 450 mm track shoes) - Overall transport length: **6200 mm** - Overall transport width: **2320 mm (over dozer blade)**神钢建机(... - Overall transport height: **2730 mm (top of cab)**神钢建机(... - Track shoe width: **450 mm (steel / rubber optional)**神钢建机(... - Track gauge: **1870 mm**神钢建机(... - Minimum ground clearance: **375 mm** ## 🛠 Hydraulic System - Main pump: 1 variable‑displacement piston pump + gear pilot pump - Max main pump flow: **132 L/min** - Main system pressure: **329 bar** - Primary auxiliary hydraulic flow: **80 L/min (hammer piping optional)** - Fuel tank capacity: **140 L**神钢建机(... - Hydraulic tank capacity: **67 L** ## 🪣 Working Equipment (standard) - Boom length: **3520 mm** - Standard stick length: **1710 mm**抖音百科 - Standard bucket capacity: **0.40 m³**; bucket width **970 mm** - Bucket digging force: **52.7 kN**抖音百科 - Stick digging force: **39.4 kN**抖音百科 - Dozer blade: straight blade with float function, width 2320 mmKobelco Co... ## 🚜 Travel Performance - High‑speed travel: **5.3 km/h**; Low‑speed travel: **2.8 km/h**抖音百科 - Max drawbar pull: **72.2 kN** - Max gradeability: **35° (70%)**抖音百科 - Swing speed: **11.5 rpm**抖音百科 ## 📌 Working Range - Max digging depth: **4170 mm** - Max digging reach: **6460 mm** - Max dump height: **5330 mm**Kobelco Co... - Max digging height: **7400 mm**## Engine - Model: **Isuzu 4LE2XCUA, 4‑cylinder turbo intercooled direct‑injection diesel**抖音百科 - Net rated power: **41 kW (54.9 HP) @2200 rpm (ISO9249)**Kobelco Co... - Displacement: **2.179 L**抖音百科 - Emission: EU Stage IIIA / China Non‑Road Stage III, no DPF/SCR urea systemKobelco Co... ## ⚙ Operating Weight & Counterweight - Cab version operating weight: **6850 kg** (steel tracks, standard bucket, dozer blade)抖音百科 - Counterweight: approx **1100 kg** - Tail swing radius: **1750 mm (conventional tail swing)**神钢建机(... ## 📐 Transport Dimensions (standard boom+1710 mm stick, 450 mm track shoes) - Overall transport length: **6200 mm** - Overall transport width: **2320 mm (over dozer blade)**神钢建机(... - Overall transport height: **2730 mm (top of cab)**神钢建机(... - Track shoe width: **450 mm (steel / rubber optional)**神钢建机(... - Track gauge: **1870 mm**神钢建机(... - Minimum ground clearance: **375 mm** ## 🛠 Hydraulic System - Main pump: 1 variable‑displacement piston pump + gear pilot pump - Max main pump flow: **132 L/min** - Main system pressure: **329 bar** - Primary auxiliary hydraulic flow: **80 L/min (hammer piping optional)** - Fuel tank capacity: **140 L**神钢建机(... - Hydraulic tank capacity: **67 L** ## 🪣 Working Equipment (standard) - Boom length: **3520 mm** - Standard stick length: **1710 mm**抖音百科 - Standard bucket capacity: **0.40 m³**; bucket width **970 mm** - Bucket digging force: **52.7 kN**抖音百科 - Stick digging force: **39.4 kN**抖音百科 - Dozer blade: straight blade with float function, width 2320 mmKobelco Co... ## 🚜 Travel Performance - High‑speed travel: **5.3 km/h**; Low‑speed travel: **2.8 km/h**抖音百科 - Max drawbar pull: **72.2 kN** - Max gradeability: **35° (70%)**抖音百科 - Swing speed: **11.5 rpm**抖音百科 ## 📌 Working Range - Max digging depth: **4170 mm** - Max digging reach: **6460 mm** - Max dump height: **5330 mm**Kobelco Co... - Max digging height: **7400 mm**
