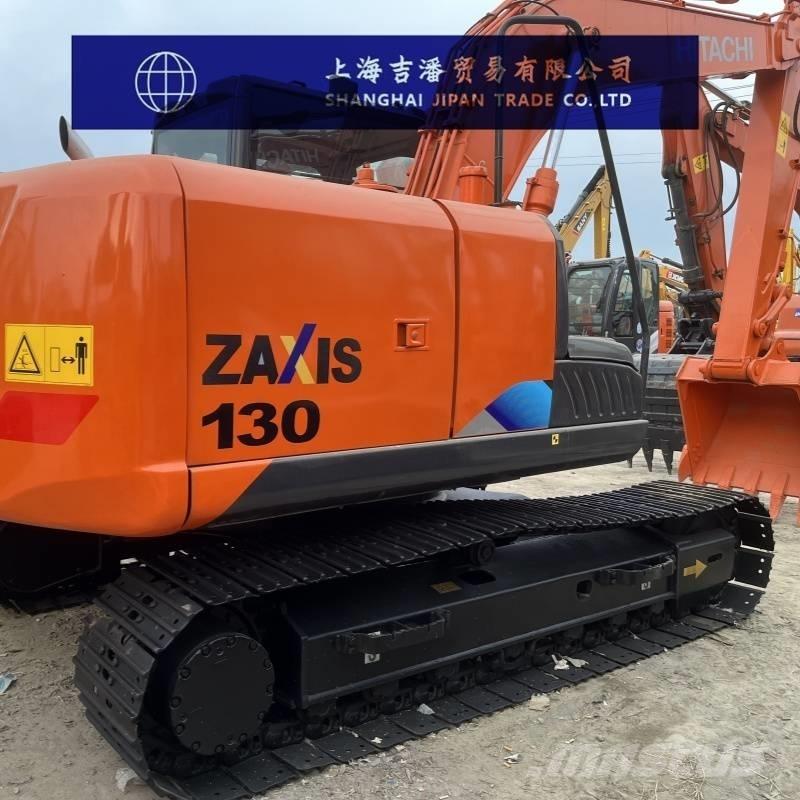

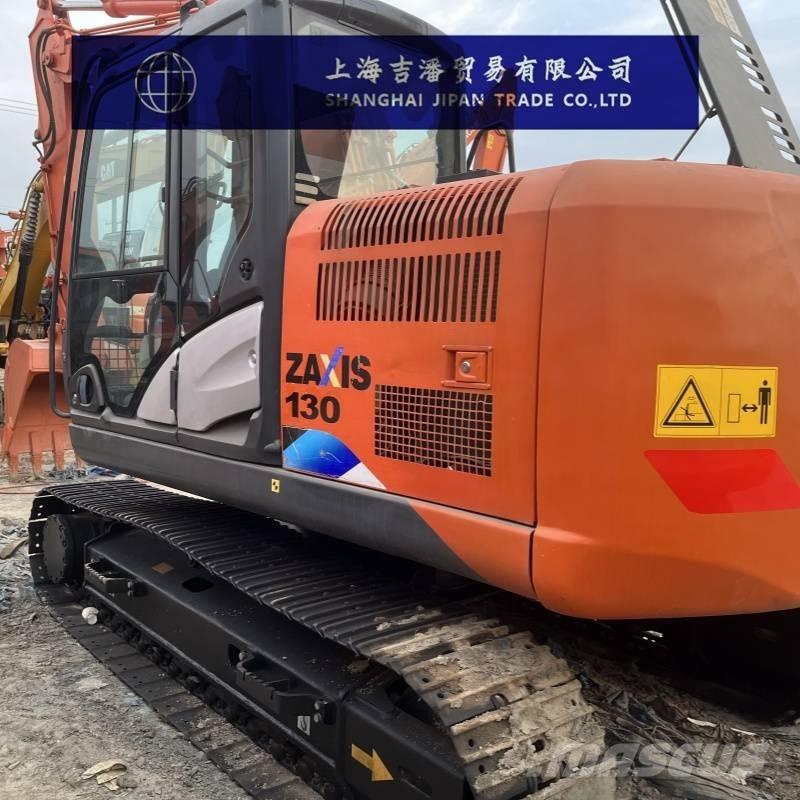

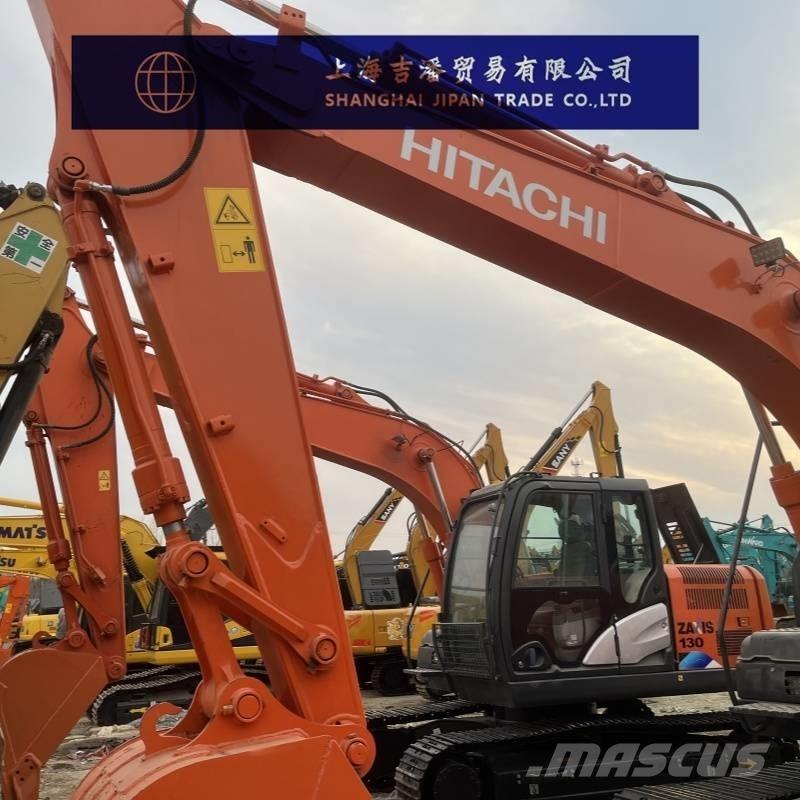

히타치 ZX 130

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Technical Specifications (Excavator) Power Type: Conventional Power Manufacturer Type: Joint Venture/Imported Bucket Type: Backhoe Ton Class (Ton): 12 Overall Operating Weight (kg): 11,500 Bucket Capacity (m³): 0.52 Boom Length (mm): 4,270 Arm Length (mm): 2,260 Performance Swing Speed (rpm): 13.5 Travel Speed (km/h): 5.5 / 3.3 Gradeability (%): 70 Ground Pressure (Kpa): 36 Bucket Digging Force (kN): 95 Arm Digging Force (kN): 57 Power System Engine Model: Isuzu GJ-4JJ1XKSA-03 Rated Power (kw/rpm): 73 / 2,000 Displacement (L): 2.999 Hydraulic System Main Pump Type: Variable Displacement Axial Piston Pump * 2 Fluid Capacities Fuel Tank (L): 280 Hydraulic Oil Tank (L): 70 Engine Oil Change Capacity (L): 17 Dimension (Main Body) Total Transport Length (mm): 7,340 Total Transport Width (mm): 2,490 Total Transport Height (mm): 2,870 Overall Cab Height (mm): 2,790 Track Shoe Width (mm): 500 Track Gauge (mm): 1,990 Minimum Ground Clearance (mm): 410 Counterweight Ground Clearance (mm): 840 Minimum Swing Radius of Front Attachment (mm): 2,370 Rear Swing Radius (mm): 2,190 Working Range Maximum Digging Radius (mm): 7,740 Maximum Digging Radius at Ground Level (mm): 7,600 Maximum Digging Depth (mm): 5,050 Maximum Digging Height (mm): 8,140 Maximum Dumping Height (mm): 5,730 Maximum Vertical Digging Depth (mm): 4,090
