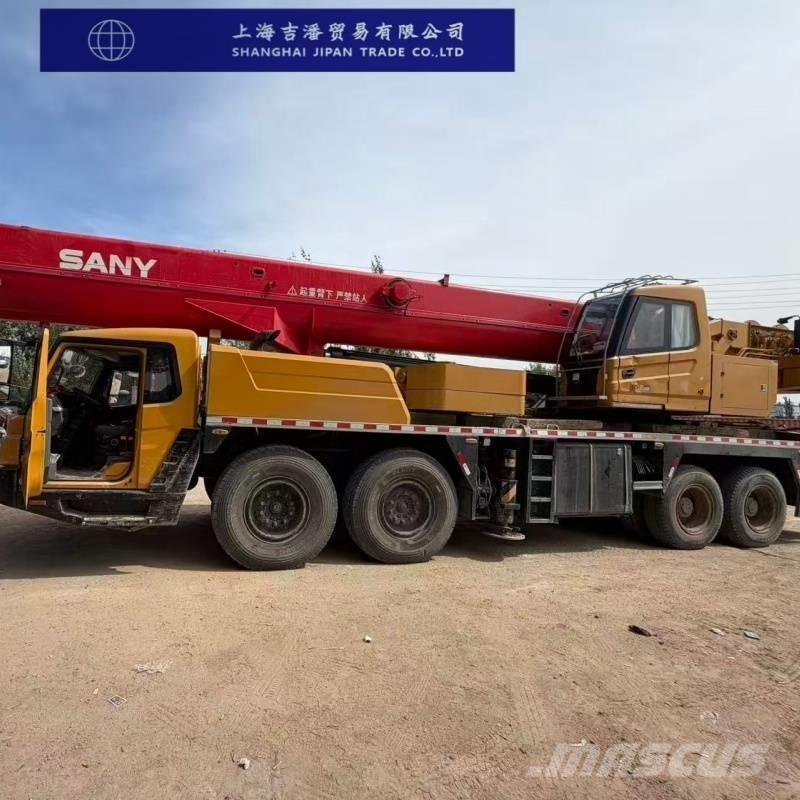

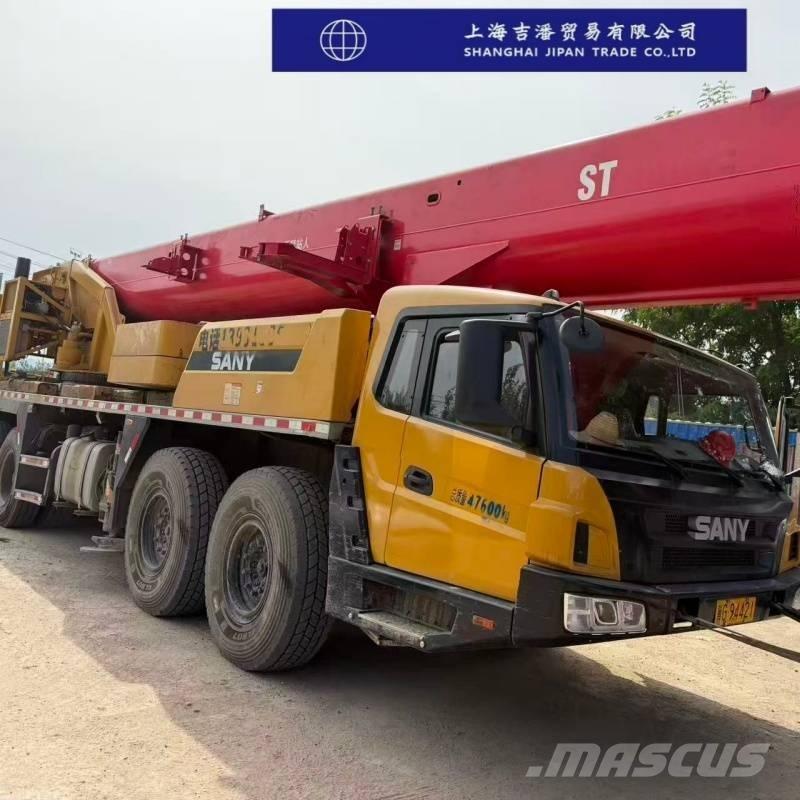

새니 stc800E5

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

arameter Type Specific Parameters Performance Parameters Maximum Lifting Height: 78m Maximum Lifting Moment: 3410.4kN·m Maximum Lifting Capacity: 80t Speed Parameters Maximum Single-Rope Speed of Main Winch: 130m/min Boom Full Extension/Retraction Time: 125/130s Boom Full Lifting/Lowering Time: 60/90s Maximum Slewing Speed: 1.8r/min Weight Parameters Total Machine Weight: 50000kg Maximum Counterweight: 20.2t Dimension Parameters Overall Length: 15000mm Overall Width: 2800mm Overall Height: 3880mm Outrigger Span (Transverse × Longitudinal): 8×6.43m Power Parameters Engine Model: Weichai WP12.400E62 (National VI Emission Standard) Engine Maximum Power: 294/1900kW/rpm Engine Maximum Output Torque: 2000/(1000-1400)N·m/rpm Travel Parameters Maximum Travel Speed: 90km/h Minimum Turning Radius: 12m Maximum Climbing Gradient: 45% Approach Angle: 18° Departure Angle: 14° Minimum Ground Clearance: 310mm
