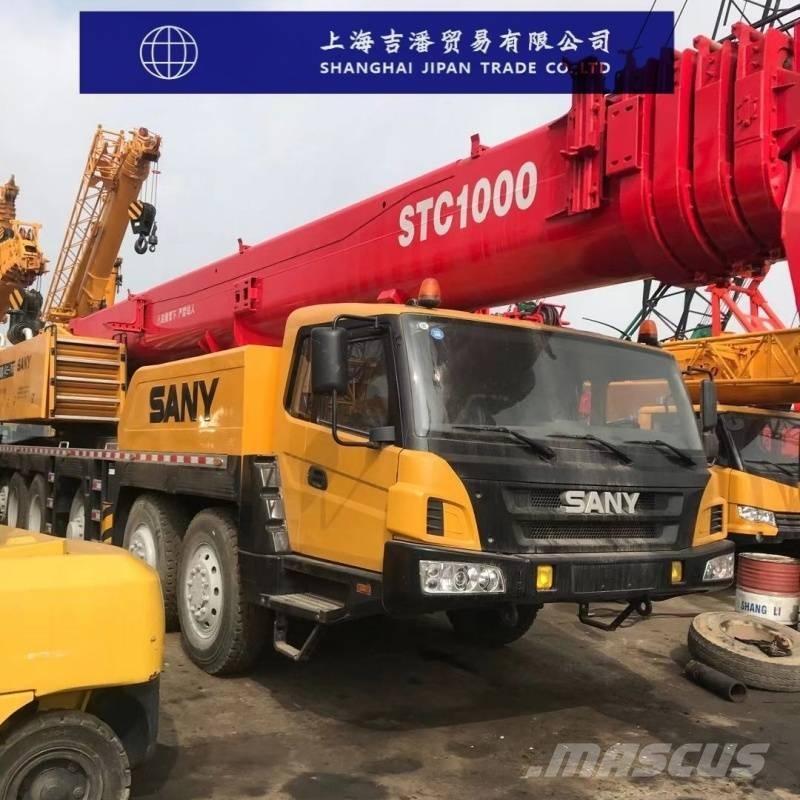

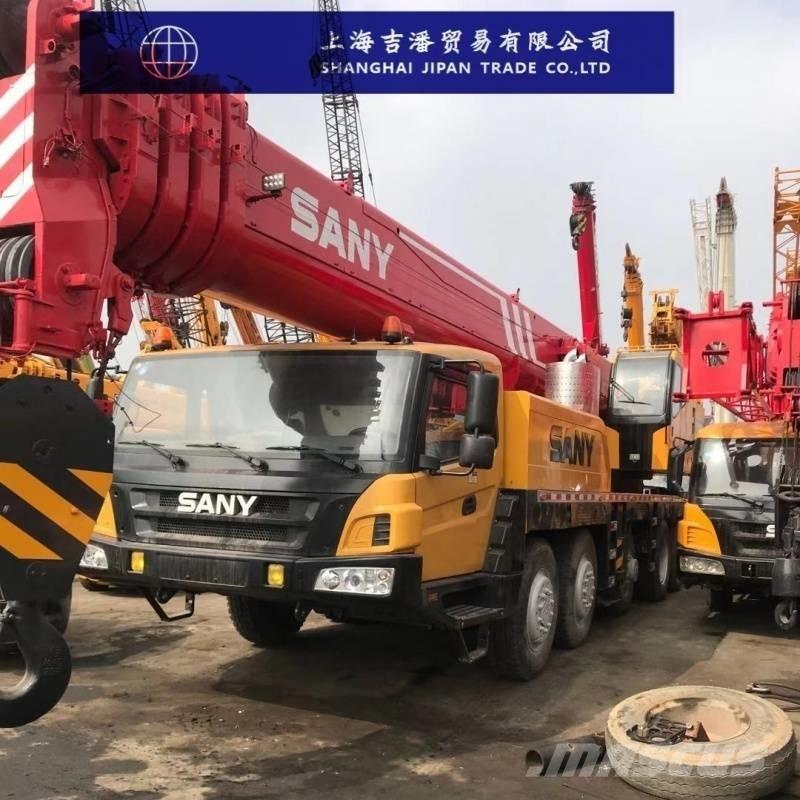

새니 STC1000

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting Performance Parameters Rated Total Lifting Capacity: 100 tons, capable of meeting the lifting needs of numerous large-scale engineering projects. Boom Length: The main boom consists of 7 sections, with a length range of 12.5m to 65.6m; a 15.5m jib is optional, and extension sections for both the main boom and jib are available. The maximum lifting height exceeds 100m, providing a wide operating coverage. Torque: The basic boom torque reaches 4920kN・m, and the maximum torque of the longest main boom is 2400kN・m. Speed: The maximum single-rope speed of the main hoist is up to 135m/min, enabling fast lifting and lowering of heavy loads. The full extension/retraction time of the boom is 570s each, the full lifting/lowering time of the boom is 60s and 160s respectively, and the maximum slewing speed is 1.8r/min, which improves operational efficiency. Dimension and Weight Parameters Overall Dimensions: The total length of the machine is 14542mm, total width is 3000mm, and total height is 4000mm. Its compact design allows it to perform well in narrow spaces. Outrigger Span: The lateral span of the outriggers is 7.8m, and the longitudinal span is 8m, providing a stable support base for crane operations. Overall Weight: The total weight of the machine is 54990kg, with a maximum counterweight of 42t, ensuring stability and load-bearing capacity during lifting operations. Power and Driving Performance Parameters Engine: Equipped with a Weichai WP12.460E50 (National V) engine, with a maximum power of 338kW/1900rpm and a maximum output torque of 2150N・m/(1000-1400rpm), delivering strong power. Driving Performance: The maximum driving speed can reach 85km/h, the minimum turning radius is 10m, the maximum climbing gradient is 45%, the approach angle is 18°, the departure angle is 13°, and the minimum ground clearance is 315mm, ensuring flexible and convenient transfer and movement. Other Parameters Tire Specification: 385/95R25. Wheelbase: 2080+2560+1500+1500. Axle Load: 11500/10500/11300/10540/11150. Spring Leaf Count: 9/9/4/4/4. Altitude Adaptation Range: Below 2500 meters. Operating Temperature Range: -25℃ to 40℃.
