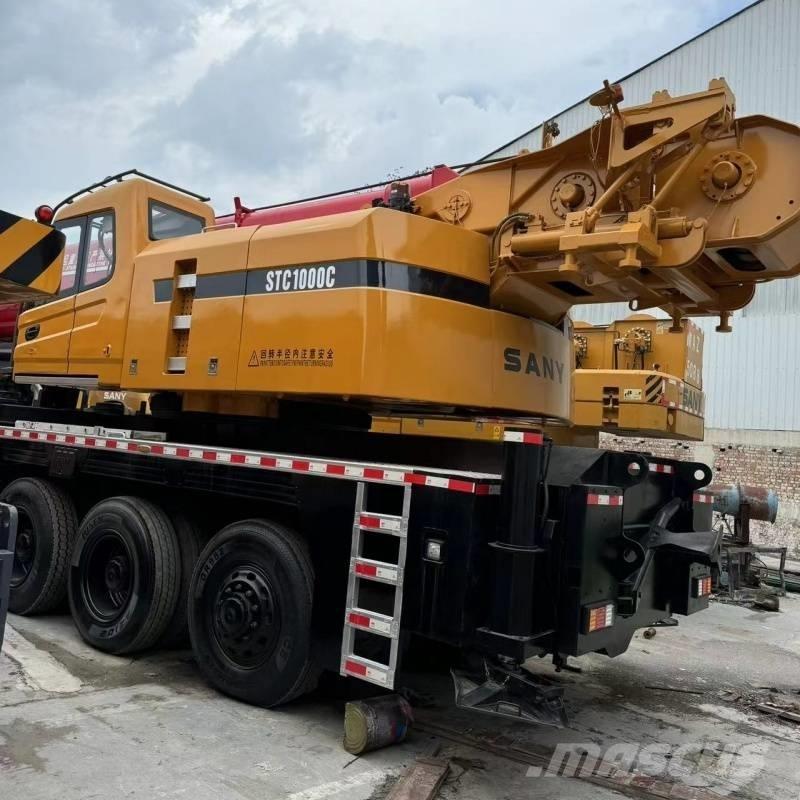

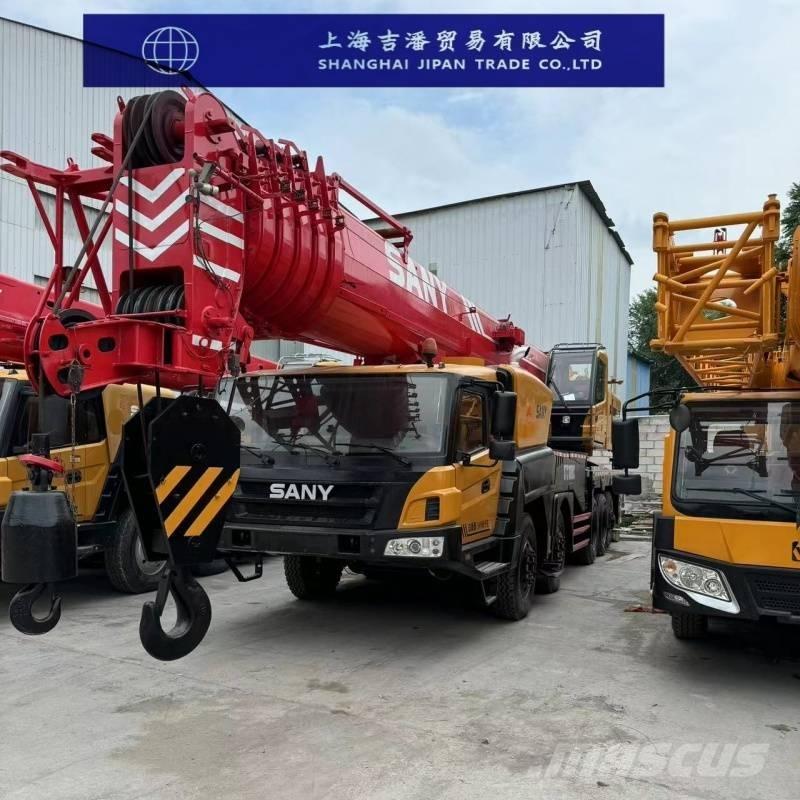

새니 SCT1000C

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting Performance Maximum lifting torque: 3557kN・m Maximum lifting torque of basic boom: 3557kN・m (60.5t×6m) Maximum lifting capacity of fully extended main boom: 13.2t Maximum lifting radius of main boom: 52m Lifting torque of longest main boom + jib: 1266kN・m Speed Parameters Maximum single-rope speed of main hoist (no-load): 135m/min Maximum single-rope speed of auxiliary hoist (no-load): 135m/min Full extension/retraction time of boom: 500/440s Full lifting/lowering time of boom: 60/90s Slewing speed: 0~1.5r/min Dimension Parameters Overall length of the machine: 14985mm Overall width of the machine: 3000mm Overall height of the machine: 3920mm Outrigger span (transverse × longitudinal): 8.3 (5.55)×6.63m Power Parameters Engine model: Yuchai YCK09380-60 (National Ⅵ) or Weichai WP10H375E62 (National Ⅵ) Maximum power of Yuchai engine: 280kW at 1900rpm Maximum power of Weichai engine: 276kW at 1900rpm Maximum output torque of Yuchai engine: 1800N・m at 1100-1450rpm Maximum output torque of Weichai engine: 1800N・m at 1000-1400rpm Driving Parameters Maximum driving speed: 80km/h Minimum turning radius: 12m Maximum climbing gradient: 45% Approach angle: ≥20° Departure angle: ≥13°
