Link-Belt HTC-835
부가세 제외가격
출력
INFO
제품군
A/T 크레인
제작사/모델
Link-Belt HTC-835
제작년도
1989
장비위치
British Columbia, Canada, British Columbia
국가
캐나다
일반 등급
1
2
3
4
5
마스쿠스 ID
63DD65AA
가격
화폐 선택
세부정보
재고번호
936
인양력
35000 ton
인양 높이
24.4 미터
어태치먼트
https://freecranespecs.com/Link-Belt/HTC-835
기타 정보

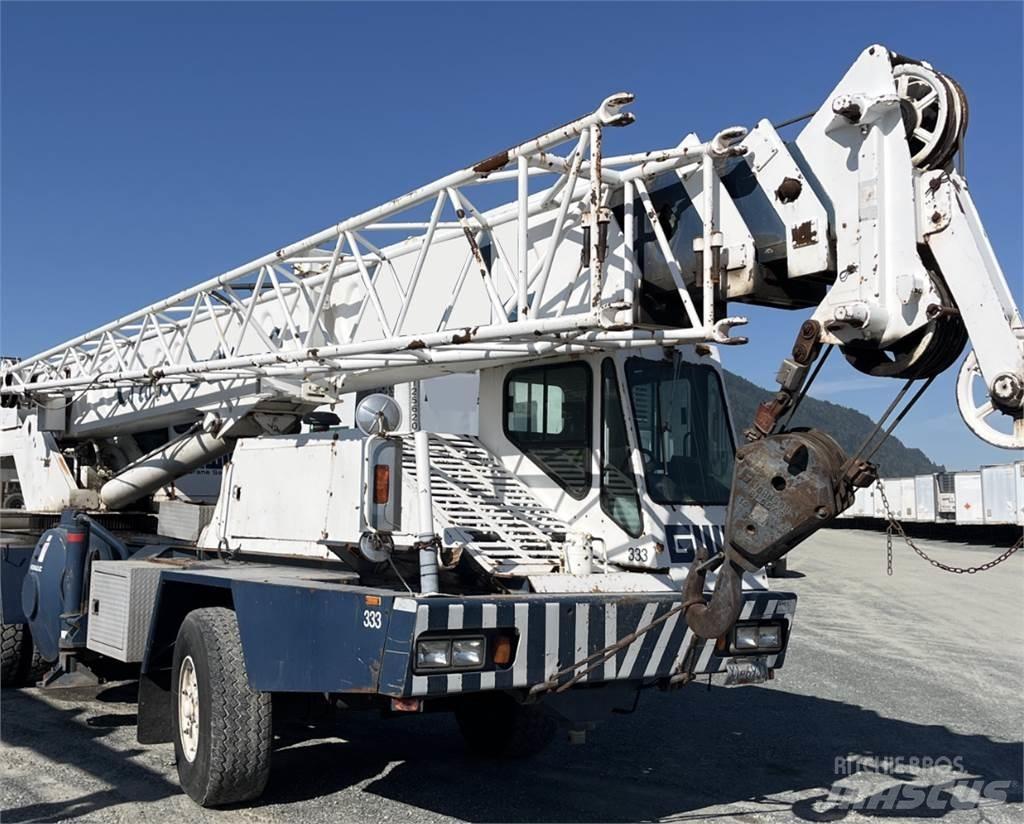

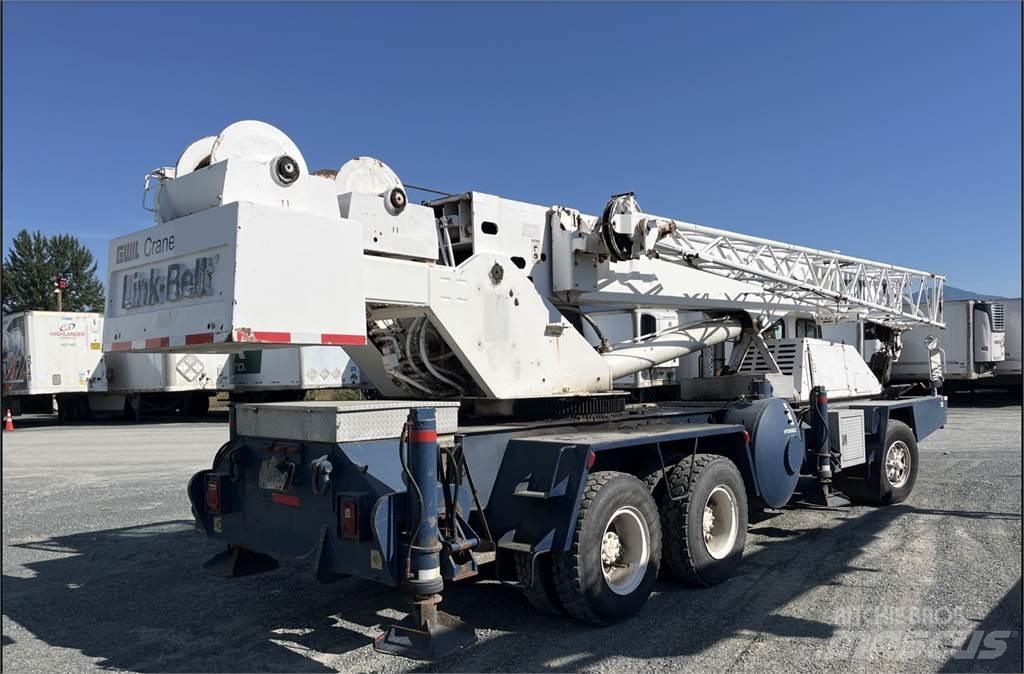

1989 Link-Belt HTC835, 35 Ton Hydraulic Truck Crane; CranesList ID: 936,
32' - 80' Three Section Boom with Auxiliary Lifting Sheave,
29’ Swing-away Fly (Jib) with 2° offset,
Main and *Auxiliary Winches with 5/8" wire rope,
Two Speed, LSI GS550 Load Moment Indicator (LMI) with Anti-Two Block,
Overhaul Hook Ball,
Johnson, 35 Ton, Four Sheave, 610#, Hook Block,
8’ Wide Link-Belt Carrier With 6 x 4 Drive,
GM V8-8 2T V8 8.2 L Diesel Engine,
Fuller Roadranger RT-6613; 13 speeds forward, 3 reverse Transmission,
Front Tires: 16.5 x 22.5 (16 PR) transport type tubeless,
Rear Tires: 10.0 x 20F (12 PR) transport type with tube,
Power hydraulic, double box, single beam outriggers, front and rear. Vertical jack cylinders, each equipped with integral holding valve. Beams extend to 18' centerline-to-centerline and retract to within 8' overall width. Equipped with stowable 19" square lightweight floats. Controls and sight level bubble located in upperstructure cab,
5th Front Outrigger,
Last Certification was in 2023.
... IN BRITISH COLUMBIA, CANADA!
