Link-Belt HC-218
부가세 제외가격
출력
INFO
제품군
A/T 크레인
제작사/모델
Link-Belt HC-218
제작년도
1971
장비위치
Little Rock, Arkansas, USA, Arkansas
국가
미국
일반 등급
1
2
3
4
5
마스쿠스 ID
DE362797
가격
화폐 선택
세부정보
재고번호
427
인양력
82500 ton
인양 높이
54.9 미터
어태치먼트
https://freecranespecs.com/Link-Belt/HC-218
기타 정보

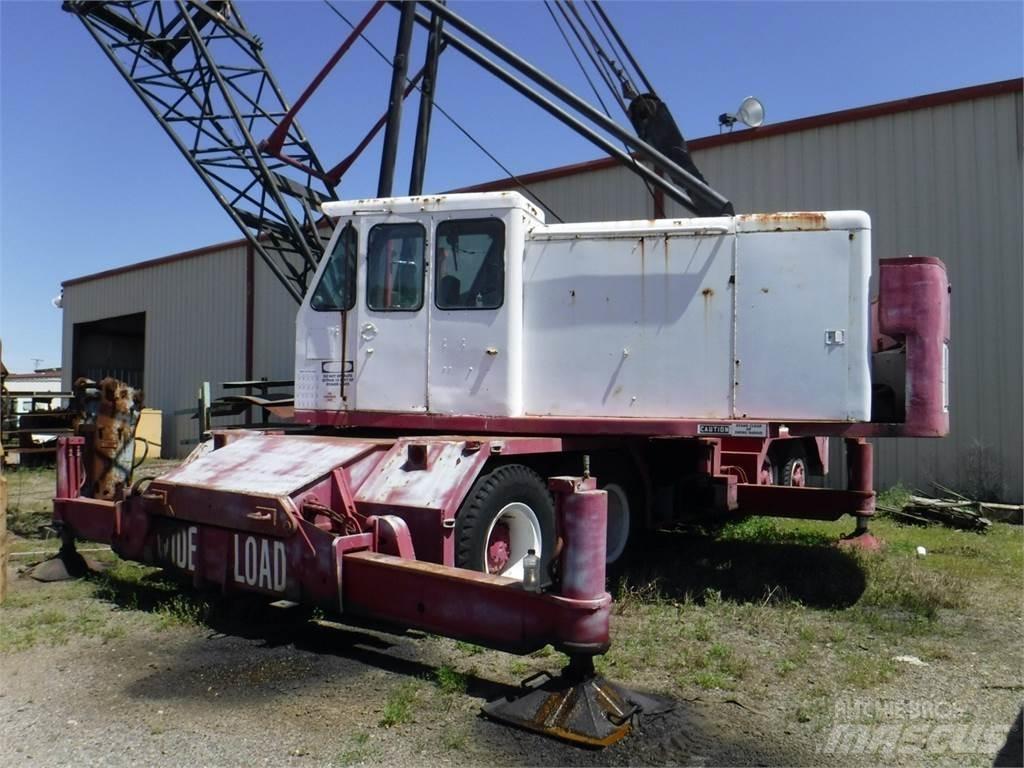

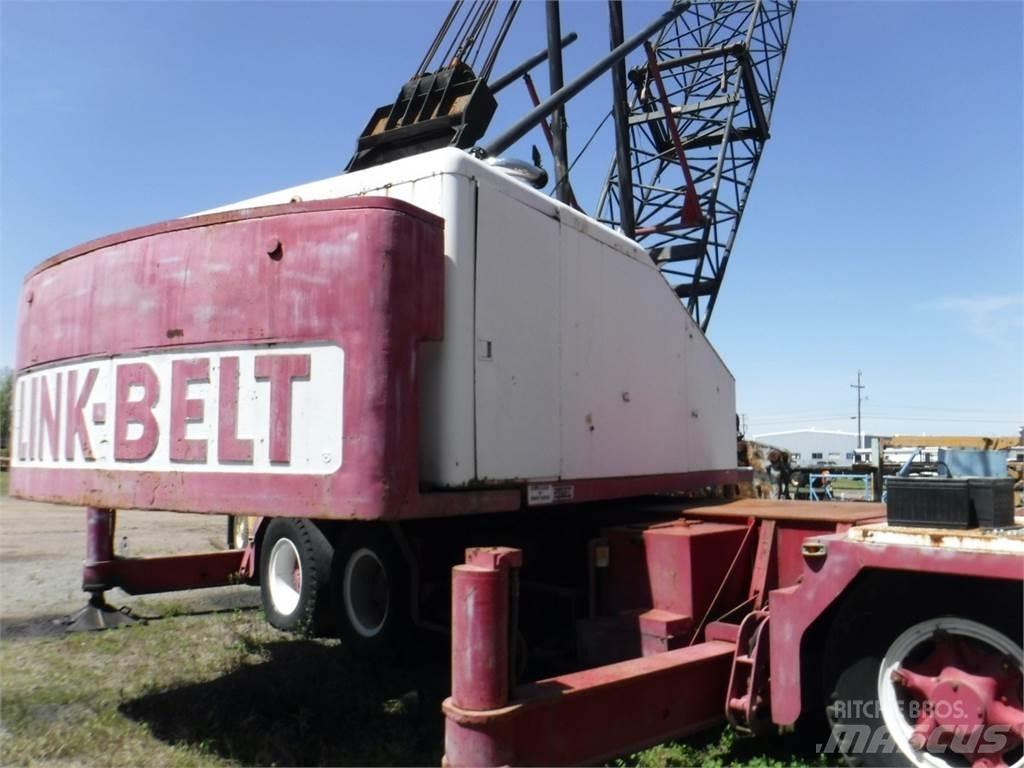

1971(?) Link-Belt HC218, 82.5 Ton, Lattice Boom Truck Crane; CranesList ID: 427,
180' Main Tubular Boom
Consisting of 1 x 20' Base, 1 x 20' insert, 4 x 30' with 1 x 20' Open Throat Tip - SUBJECT TO FINAL CONFIRMATION DURING TIME OF INSPECTION,
Mid point hook-ups and Off set boom pins,
60' Jib
Consisting of 1 x 30' Basic, 2 x 15' Inserts Offsetable at 0, 15, 30 degrees,
Detroit 6-71N, Six Cylinder, 165 HP Diesel Engine Up,
Torque Convertor,
Main and Auxiliary Winches with 3/4" wire rope,
Boom Angle Indicator, Drum Rotation Indicator, Power Load Lowering on both,
Hook Block and Ball,
21,000# A Upper Counterweights plus 1,000# additional counterweights,
11' Wide Link-Belt 8 x 4 Carrier,
Detroit 8V-71TN, Eight Cylinder, Two Cycle, 280 HP Diesel Engine
,
Eaton Fuller Roadranger RTO-915 15 Speed Forward and 3 Reverse Transmission, with Two Speed direct and low Auxiliary,
Front and Rear Tires:
14:00 X 24J 18 Ply - SUBJECT TO FINAL CONFIRMATION DURING TIME OF INSPECTION,
Heaters up and down,
12,000# Bumper Counterweight,
Full width, double box Hydraulic outriggers,
Storage Bins,
One outrigger leaks otherwise Crane is Ready To Go To Work,
One pile Drive Hammer,
Three 1/2 to 1 yard clamshell buckets,

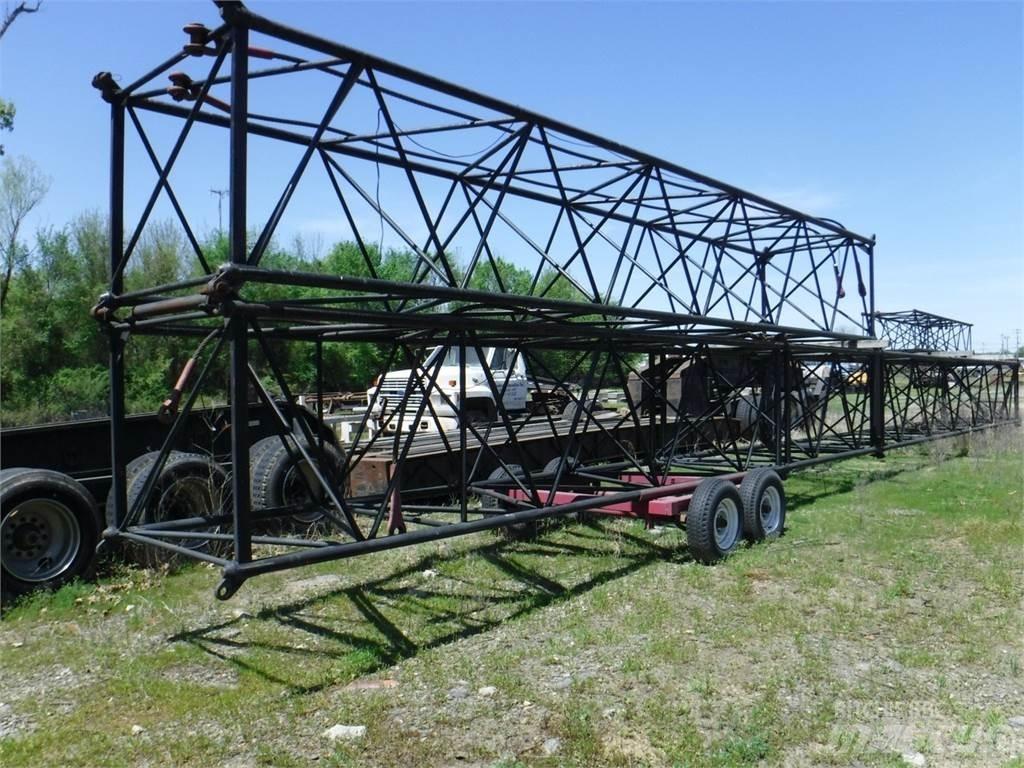

Boom Trailer (hooks to Bumper) holds 120' of Boom,
YEAR MODEL OF THE CRANE
SUBJECT TO FINAL CONFIRMATION.
... IN CENTRAL ARKANSAS!
