그로브 GMK5275

https://freecranespecs.com/Grove/GMK5275

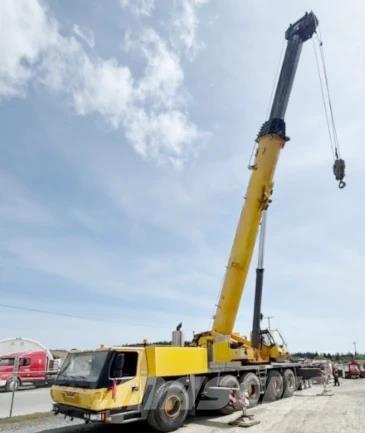

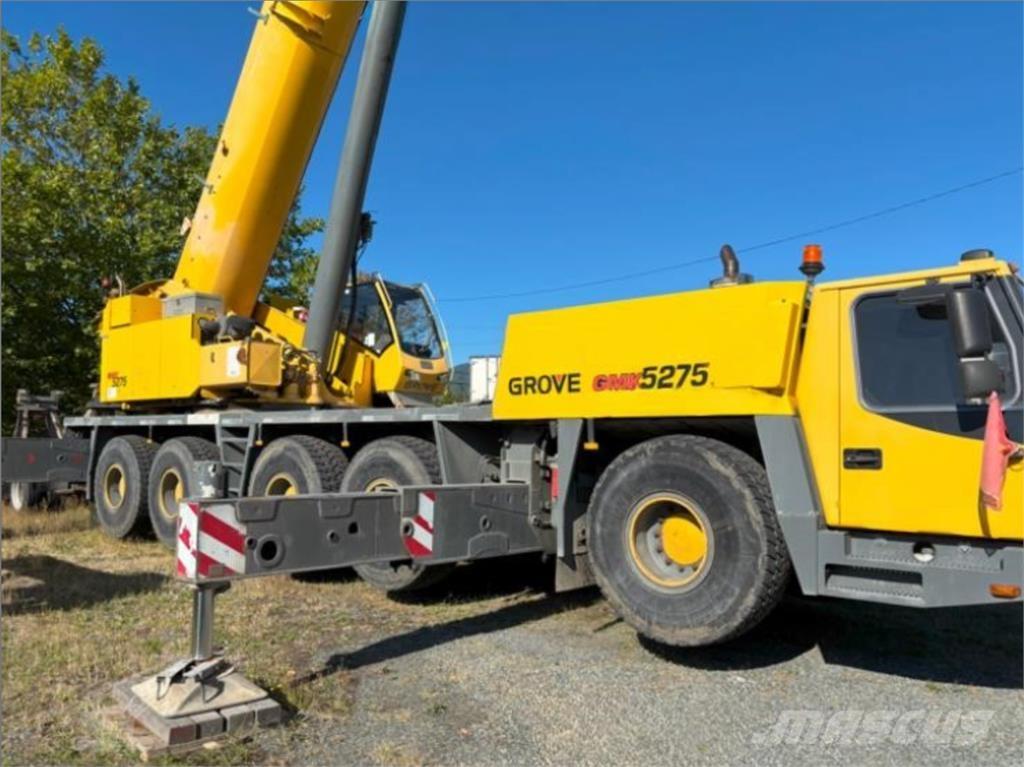

2007 Grove GMK5275, 275 Tons, All Terrain Crane; CranesList ID: 1023, 44' - 223' Seven Section, Full-Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave, 39' - 69’ Bi-fold Lattice Swing Away Extension (Jib) Hydraulically Off-settable (5° - 40°), 2 x 26' Jib inserts for a total of 121' of Jib, Cummins 24 Valve Diesel Engine (Up), Main and Auxiliary Winches with 22 mm Wire Rope, Drum Rotation Indicator, Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition, Single Sheave Hook Block, Five Sheave Hook Block, 169,700# Counterweights consisting of various sections with hydraulic installation/removal system controlled from the superstructure cab. Air Conditioning and Heater in both cabs, 10’ Wide, 10 x 8 x10 Drive/Steer Grove Carrier, Cummins QSX, 525 HP, Diesel Engine, Jake Brake, Allison automatic 4000 SP, 6 speeds forward, 1 reverse 2 speed transfer case Transmission - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION, Front and Rear Tires: 525/R25, Grove exclusive MEGATRAK™ suspension. Independent hydro-pneumatic system acting on all wheels with hydraulic lockout.  Outrigger System - Four hydraulic two stage outrigger beams with vertical cylinders and outrigger pads, 600 mm (23.6 in) square. Outrigger can be set in 5 positions: Full: 8,1 m (26.6 ft) Partial: 6,8 m (22.3 ft)Partial: 5,6 m (18.4 ft) Partial: 4,4 m (14.4 ft)Retracted: 2,7 m (9.0 ft) Independent horizontal and vertical movement controlled from each side of carrier and the superstructure cab. Electronic crane level  indicators. Hydraulic disconnect for all outrigger beams, Nelson Tridem Dolly. ... IN EDMONTON, ALBERTA, CANADA!
