그로브 GMK4070

부가세 제외가격

Compnay LOGO
Images11

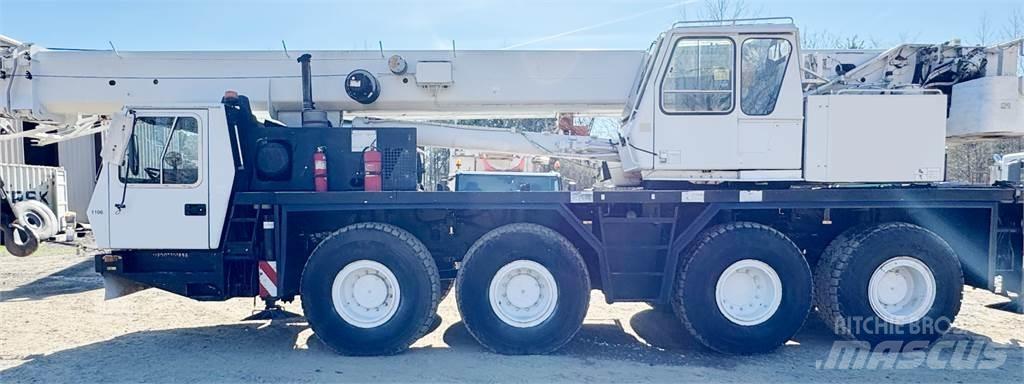

Grove GMK4070 A/T 크레인
Grove GMK4070 A/T 크레인
Grove GMK4070 A/T 크레인
Favorite즐겨찾기
share공유
Save search검색 저장
출력

INFO

제품군
A/T 크레인
제작사/모델
그로브 GMK4070
제작년도
1999
장비위치
Arkansas, USA, Arkansas
국가
미국
일반 등급
1
2
3
4
5
마스쿠스 ID
E9AF26A9

가격

화폐 선택

세부정보

재고번호
969
인양력
85000 kg
인양 높이
3810 cm
어태치먼트
https://freecranespecs.com/Grove/GMK4070
기타 정보

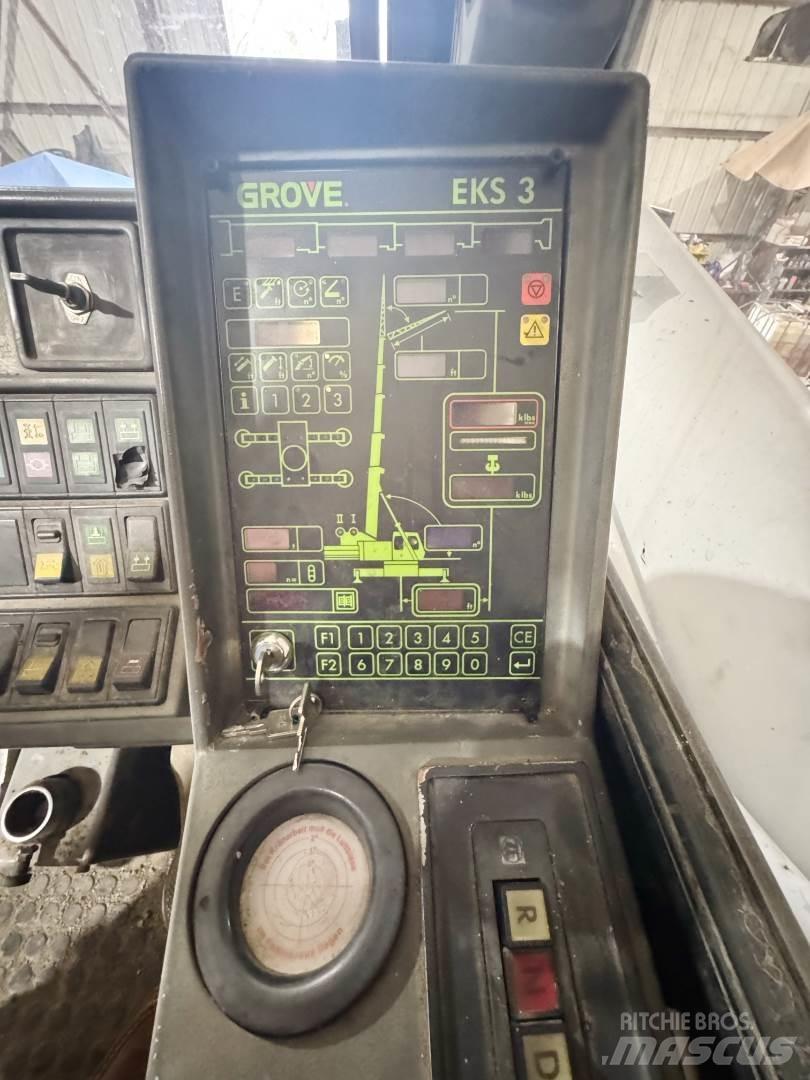

1999 Grove GMK4070, 85 Ton, All Terrain Crane; CranesList ID: 969 38-125’ Five Section Full Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave 32.8'- 52' hydraulic off-settable lattice Swing Away Extension (Jib). Offsettable at  0°, 16°, 30°), Main and Auxiliary Winches with 19 mm Wire Rope Drum Rotation Indicator, EKS3 Load Moment Indicator (LMI) and independent anti-two block system with audio visual warning and control lever lock-out. These systems provide electronic display of boom angle length, radius, tip height, relative load moment,maximum permissible load, load indication, and warning of impending two-block condition with lock-out hoist function, Control System: Stepless control of all crane movements using control levers with automatic reset to zero Hook Ball Three Sheave Hook Block 29,500# Total Counterweights with Hydraulic Removal removal system controlled from the superstructure cab All-aluminum constructed Operator's cab:  full vision, safety glass, adjustable operator's seat with hydraulic suspension, engine-independent heater. Armrest-integrated crane controls. Ergonomically arranged instrumentation and crane operating controls. Drive/steer controls 8.3' wide Grove Two-man Carrier Cab, Aluminium, 2-man-design, safety glass, driver and passenger seat with hydraulic suspension, engine-dependent hot water heater. Complete instrumentation and driving controls, 8 x 6 x 8 Drive/Steer Carrier Mercedes-Benz Eight Cylinder Water Cooled, Turbocharged, Diesel Engine - Rebuilt on 5.2020 with only 2,765 Hours since the rebuild - Engine rebuilt in 2020 with 19,250 hours), ZF Automatic Transmission, Front and Rear Tires: 14.00 R25 Grove exclusive MEGATRAK Suspension Outriggers: 4 double hydraulic telescoping beams with vertical cylinders and outrigger pads. Independent horizontal and vertical movement control on each side of the carrier and from the crane operator's cab. Sight level gauge. This retail fleet crane is used daily and is fleet maintained Certified, ... IN ARKANSAS! 더 보기
