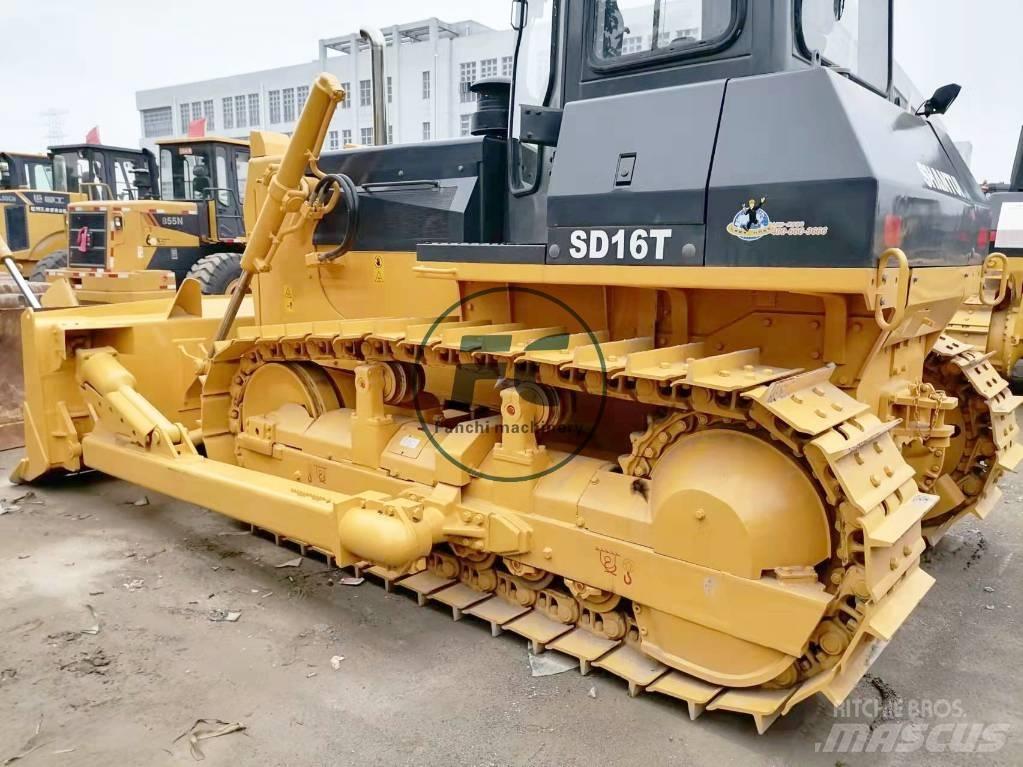

Shantui SD 16T

Name: Shantui SD 16T
Brand: Shantui
SKU: A602A8DA
Price: 235500 CNY
Availability: InStock

부가세 제외가격

즐겨찾기

검색 저장

출력

INFO

제품군

크롤러 도저

제작사/모델

Shantui SD 16T

제작년도

2024

사용시간

314 시간

국가

중국

일반 등급

마스쿠스 ID

A602A8DA

가격

화폐 선택

세부정보

동력 형식

디젤

기존 차주 수

총 중량

17000 kg

언더케리지 잔존 수명

궤도식

운전실 형식

캐빈형

엔진 출력

131 kW (178 마력)

장비크기

5.140×3.455×3.032 미터

오리지널 컬러

YELLOW

제품 국가

중국

맞춤형

propertynames.pp_equippedfor_2100011

운송 조건

FOB, EXW

증명서

미국 환경 보호국(EPA), 유럽 위원회(CE), 미국 규격 협회(ANSI), AS, CSA, EAC GOST, TRUA, JIS, TUV, ASME

부속품

별도 유압장치

엔진 엔진 히터(난방기구)

기타 정보

The Shantui SD16T is a 160-horsepower mechanical drive bulldozer engineered for versatility and efficiency across various earthmoving and construction applications. Building upon the foundation of the SD16 series, the SD16T offers enhanced features tailored to meet diverse operational needs. Key Features: 1. Engine & Performance Engine Model: Weichai WP10 Henan Harvest Machinery & Truck Co., Ltd +2 product.global-ce.com +2 machplaza.com +2 Rated Power: 131 kW (approximately 175 hp) @ 1,850 rpm Fuel Efficiency: Designed for optimal fuel consumption, balancing power output with economical operation. 2. Operating Weight & Dimensions Operating Weight: Approximately 17,000 kg (37,478 lbs) Dimensions (L × W × H): 5,140 mm × 3,455 mm × 3,032 mm Ground Pressure: Approximately 58 kPa, suitable for various terrains. machplaza.com +1 product.global-ce.com +1 3. Transmission & Undercarriage Transmission Type: Planetary gear with multi-disc clutch, hydraulically connected, featuring forced lubrication. shantuibj.en.made-in-china.com +1 machinery-trucks.com +1 Speeds: Forward: 2.67 km/h to 11.13 km/h product.global-ce.com +1 shantuibj.en.made-in-china.com +1 Reverse: 3.48 km/h to 9.92 km/h product.global-ce.com +1 shantuibj.en.made-in-china.com +1 Track System: Track Gauge: 1,880 mm Shoe Width: 510 mm (options for 560 mm and 610 mm) Ground Contact Length: 2,430 mm 4. Blade & Ripper Specifications Blade Type: Straight tilt blade Blade Capacity: Approximately 3.8 m³ lectura-specs.com +2 shantuibj.en.made-in-china.com +2 Alibaba +2 Blade Dimensions: Width: 3,388 mm; Height: 960 mm shantuibj.en.made-in-china.com +1 lectura-specs.com +1 Maximum Digging Depth: 540 mm lectura-specs.com +2 工业目录 +2 product.global-ce.com +2 Ripper Type: Optional three-shank ripper shantuibj.en.made-in-china.com +1 machinery-trucks.com +1 Maximum Ripping Depth: 570 mm 5. Operator Comfort & Controls Cabin: Ergonomically designed for operator comfort, featuring intuitive controls and ample visibility. Steering & Braking: Equipped with wet multiple disc clutches and hydraulically actuated brakes for precise maneuvering. machinery-trucks.com +1 shantuibj.en.made-in-china.com +1 6. Durability & Maintenance Robust Construction: Built with high-quality materials to withstand rigorous working conditions. Maintenance Access: Designed for ease of serviceability, reducing downtime and operational costs. Applications ✔ Earthmoving: Efficiently handles tasks such as grading, leveling, and soil redistribution.✔ Construction: Ideal for site preparation, road building, and infrastructure projects.✔ Mining & Quarrying: Capable of managing overburden removal and material transportation.✔ Agriculture: Useful for land clearing, terracing, and other large-scale farming operations. Summary The Shantui SD16T bulldozer combines power, precision, and durability, making it a reliable choice for a wide range of construction and earthmoving projects. Its mechanical drive system, coupled with user-friendly controls and robust build, ensures high productivity and longevity in various working environments.더 보기
