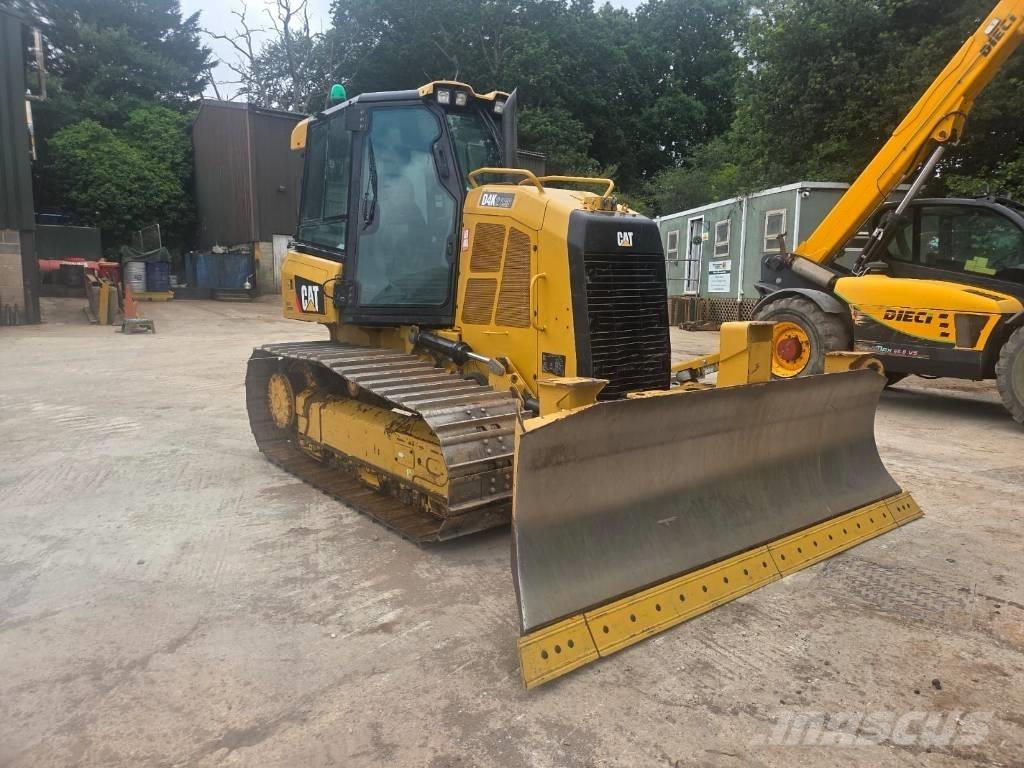

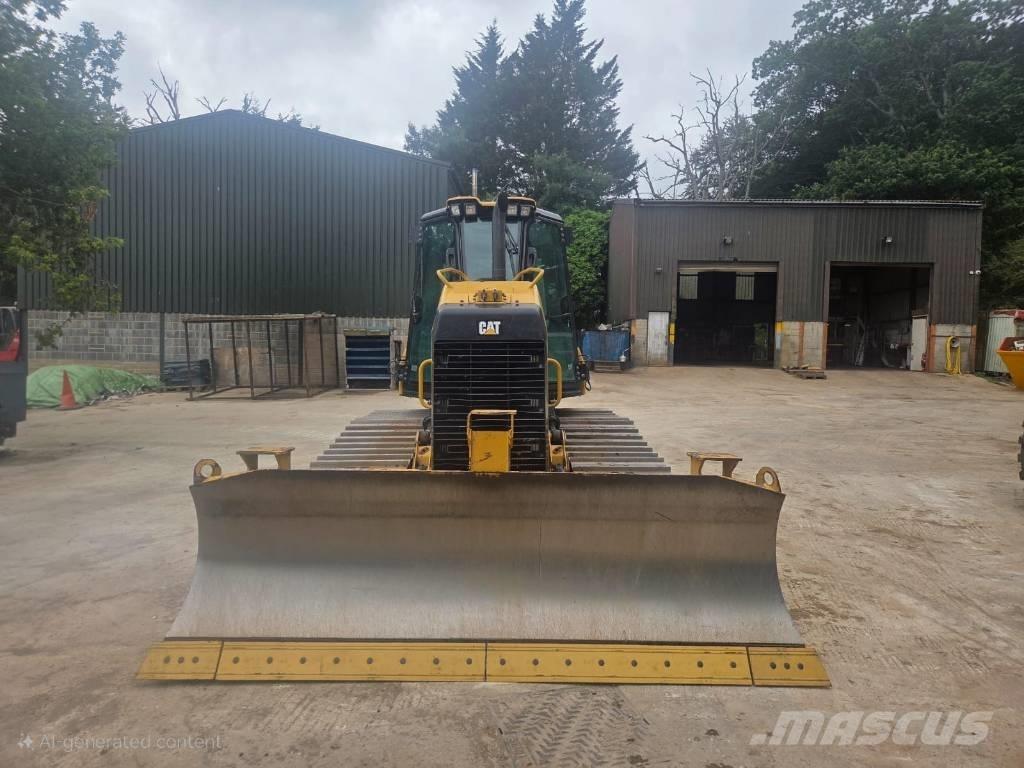

CAT D 4 K 2 LGP

PAT blade, Rippers available at an additional cost. For the full inspection report please visit our website. UNDERCARRIAGE Shoes - any wear on trailing edge? Slight wear Rail height 50mm, 80% Average diameter of pins and bushings 54mm, 90% Have pins been turned on chains? No Sprockets Really good, 90% IDLERS - UNDERCARRIAGE Left side front idler 25mm, 75% Right side front idler 25mm, 75% TOP ROLLERS Left side roller 152mm, 75% Right side roller 154mm, 75% BOTTOM ROLLERS - UNDERCARRIAGE Roller 1 160mm x 160mm, 70% Roller 2 162mm x 160mm, 70% Roller 3 163mm x 166mm, 75% Roller 4 162mm x 168mm, 75% Roller 5 168mm x 168mm, 75% Roller 6 162mm x 163mm, 70% Roller 7 168mm x 166mm, 75%
