프츠마이스터 M38-4

General Information Arms 5 Folding Type RZ-Folding Vertical Reach 37.5 m Horizontal Reach gross 32.8 m Horizontal Reach net 30.3 m Reach Depth 25.3 m Unfolding Height 7.4 m Slewing Range 365 degree End Hose - Length 4 m Configuration Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 27

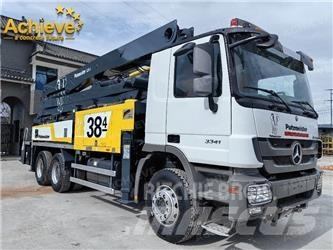

Putzmeister M38-5 is the perfect truck-mounted concrete pump for medium to high-volume concrete pours. It can also be used for universal job sites. It is consistently efficient thanks to clever ergonomic design. It is also safer than before considering the current standards and guidelines. This truck mounted concrete pump can be mounted on Chassis of various manufacturers as well as on 3-axles and 4-axles chassis. Key Features A gross weight of less than 26 t incl. sufficient reserves for payload and operating materials Steady 5-arm placing boom, thanks to intelligent laying of the delivery line and the harmonious development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs, thanks to maintenance-free components, fewer special components (e.g. only 2 s
