Giporec R131 FDR
부가세 제외가격
POA
출력
INFO
제품군
이동식 분쇄기
제작사/모델
Giporec R131 FDR
제작년도
2019
사용시간
3800 시간
국가
벨기에
일반 등급
1
2
3
4
5
마스쿠스 ID
FC09B9E3
세부정보
크러셔 종류
임팩트 크러셔
기타 정보

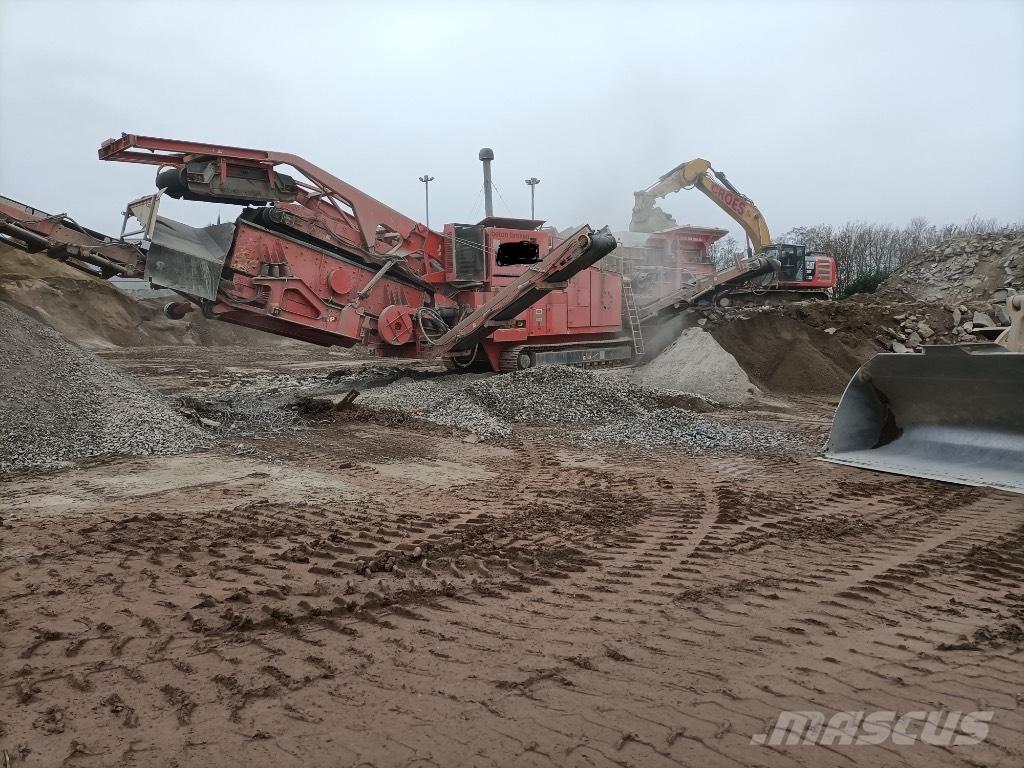

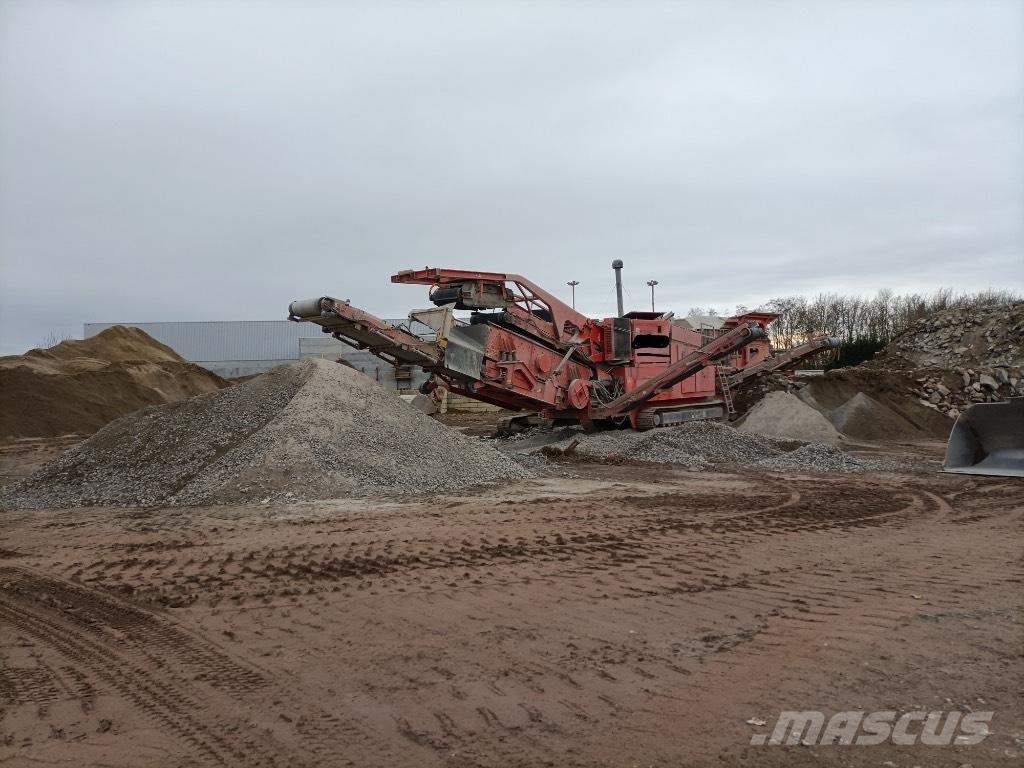

Tracked mobile impact crusher with afterscreen: Gipoerc R131 FDR
Year of construction: 2019
Approximately 3800 operating hours
Intake hopper: 5m³
Vibrating feeder: 1120 x 2200 mm
Pre-screen: 1200 mm x 2200 mm

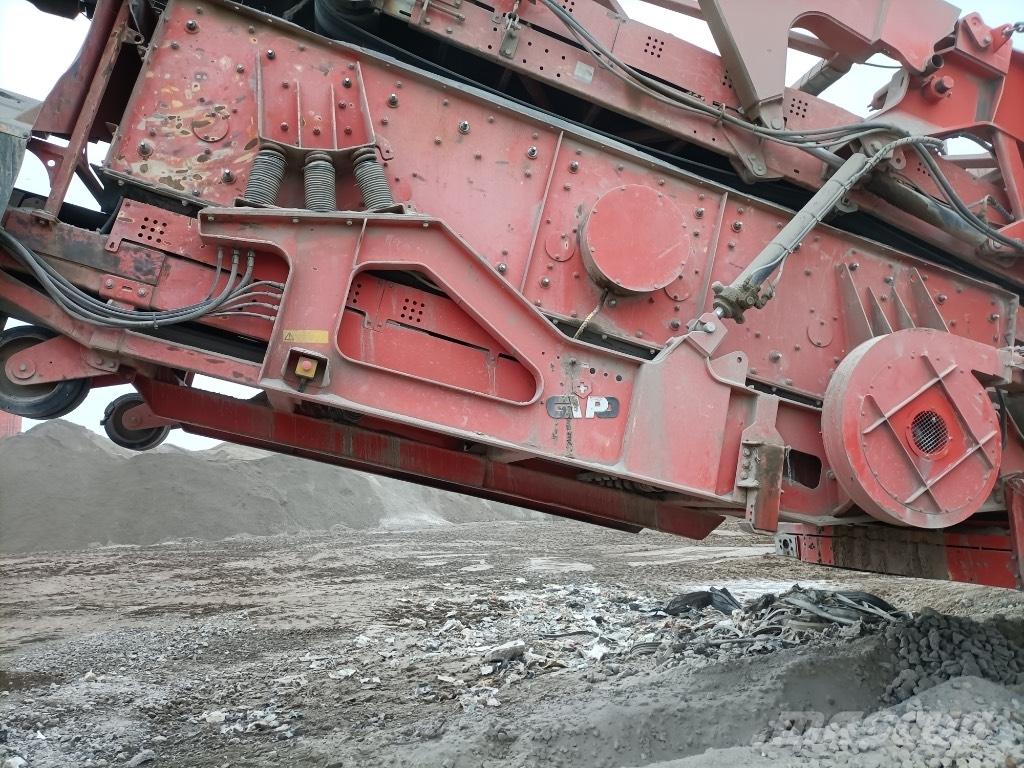

Double-deck afterscreen: 1500 x 5500 mm
Conveyor belt under the screening machine: 1400 mm x 7000 mm
Inlet opening of the impact crusher: 1270 mm x 900 mm
Rotor diameter: 1200 mm
Crushing capacity up to 400 tons/hour, depending on the material being processed
Vibrating chute under the impact crusher: 1300 mm x 2300 mm
Conveyor belt for the crushed material; 1400mm x 8500mm
Return conveyor for the oversize, 650mm x 7700mm
Power pack CAT 354 KW
Transport dimensions
Length 18000mm - Width 3300mm - Height 3800mm
Weight without the screening machine: 65 tons
Weight with the screening machine: 80 tons
Location: Flanders
PRICE upon request
Intracon NV
Marie-Joseestraat 8 3630 Maasmechelen Limburg 벨기에
