INFO

제품군
유압 파일 해머
제작사/모델

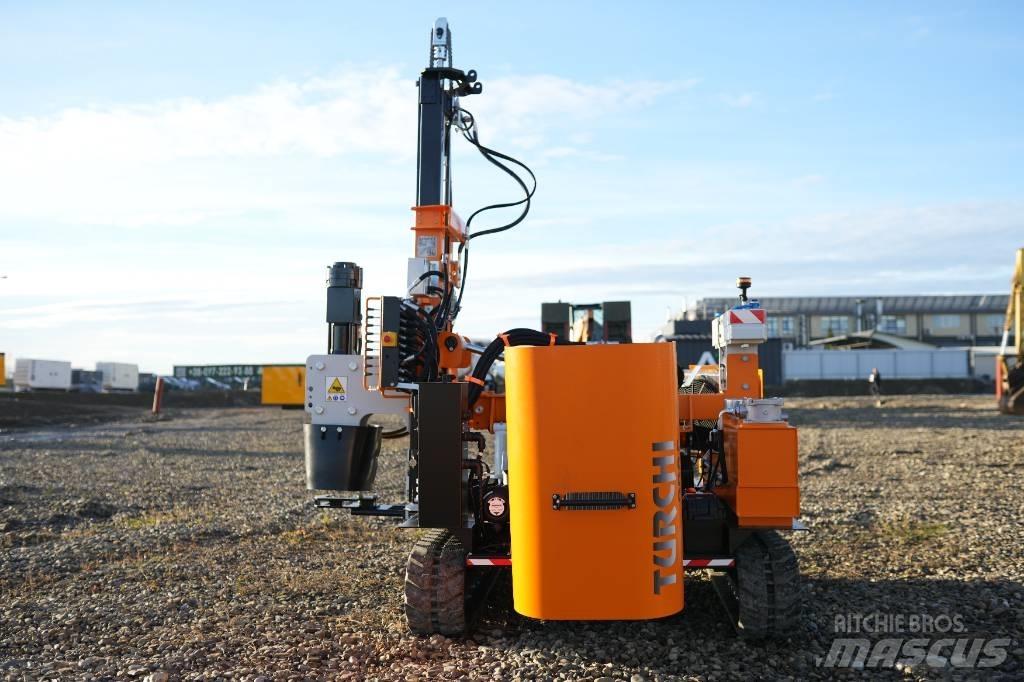

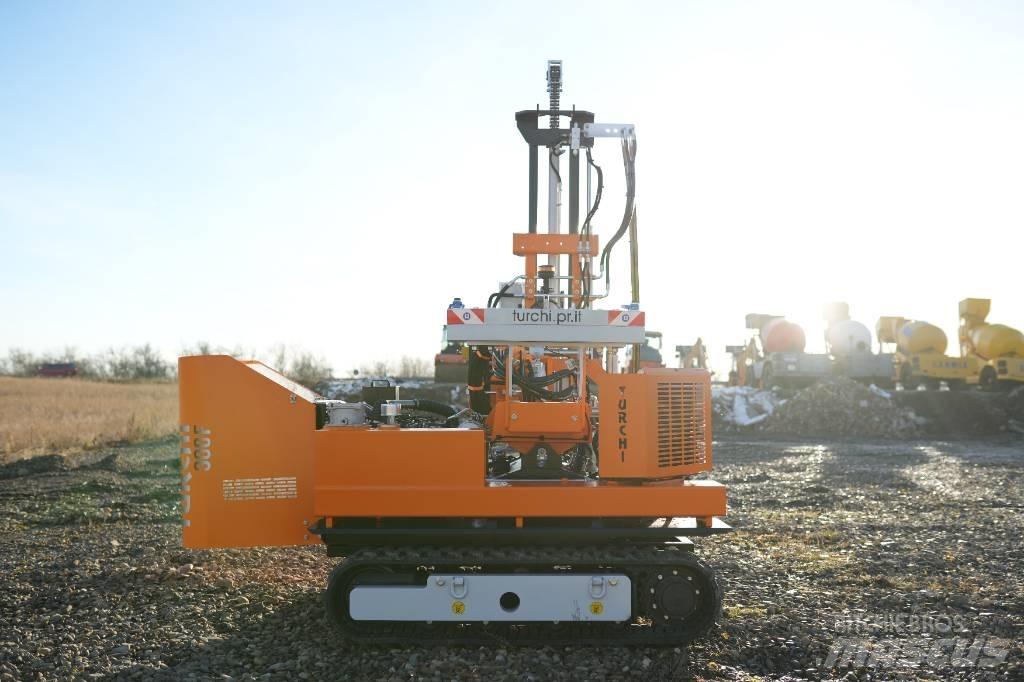

Turchi 300F
제작년도
2024
컨디션
새제품
국가
우크라이나
마스쿠스 ID
67FBA455

가격

화폐 선택

세부정보

매연 등급
Stage IIIA / Tier III
운반 중량
4800 kg

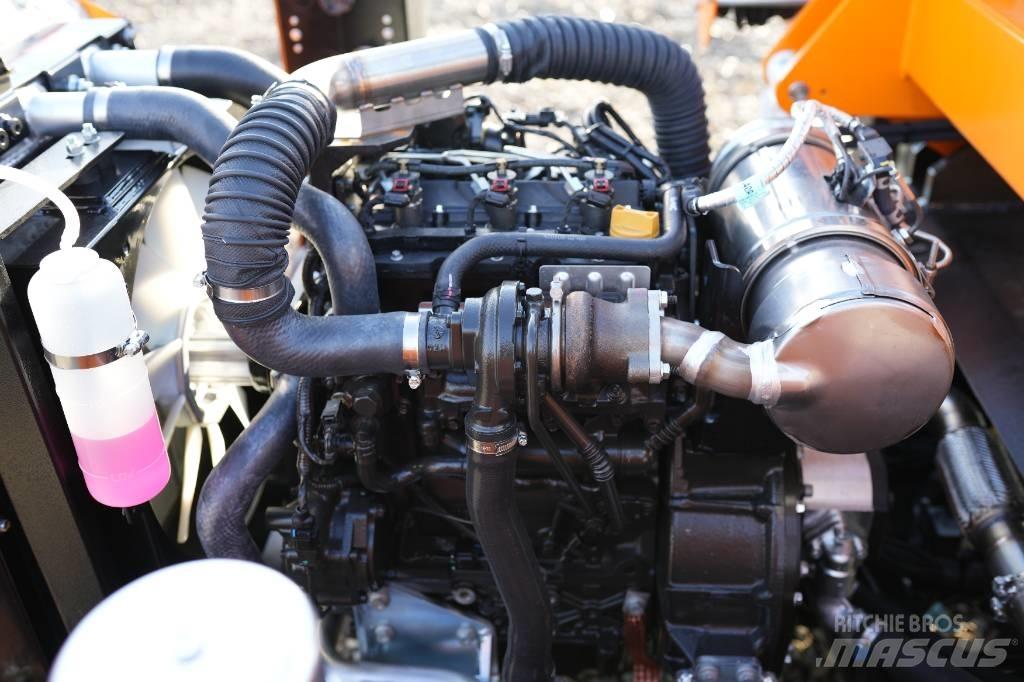

엔진 제조사
Doosan
장비크기
Length 2.100 mm. Width 2350 mm. Height 2670 mm 미터
제품 국가
이탈리아
운송 조건
EXW
기타 정보
Turchi 300F 2024 Weight kg 4800 Dimensions closed machine with lifted column: Length 2.100 mm Width 2350 mm Height 2670 mm (without pole slide) Movements hydraulic 1. Hammer starter stroke 2. Up/down movement of the hammer trolley 3. In/out movement of the slide stroke 600 mm 4. Stroke translator 130+130 mm 5. Column inclination from +10° to -51° 6. Slide inclination (training) from + 9,5° to -9,5° 7. Down/up movement of the column stroke 500 mm 8. Left track control 9. Right track control Power Oil sets on the machine 180 BAR Hydraulic system to open cicuit Hydraulic pump at gear Capacity oil tank 140 LT Translation's speed of machine 1,92 3,33 KM/H Engagement in HP 47,3 Maximum highest post 4.400 mm ( optional up to 6000 mm) HAMMER Impact power 950/1200 JOULE Impact rate 620÷1.500/570÷1180 Weight 350kg/450 kg Oil flow rate 60÷90 LT.-MIN./ 70÷100 LT.-MIN Power oil sets on the hammer 170 BAR더 보기

Алеанда

Садова 21 58022 с. Остриця Chernivtsi Oblast 우크라이나
