INFO

제품군
유압 파일 해머
제작사/모델
BSP HH6 LD
제작년도
1998
장비위치
Etten Leur, Noord-Brabant
국가
네덜란드
일반 등급
1
2
3
4
5
마스쿠스 ID
3E85A9F3

가격

화폐 선택

세부정보

최근검사
2024-10-14
기존 차주 수
1
운반 중량
8500 kg
장비크기
5500 x 740 x 1110 mm
상태 정보/보증
warranty expired
제품 국가
영국
운송 조건
EXW
어태치먼트

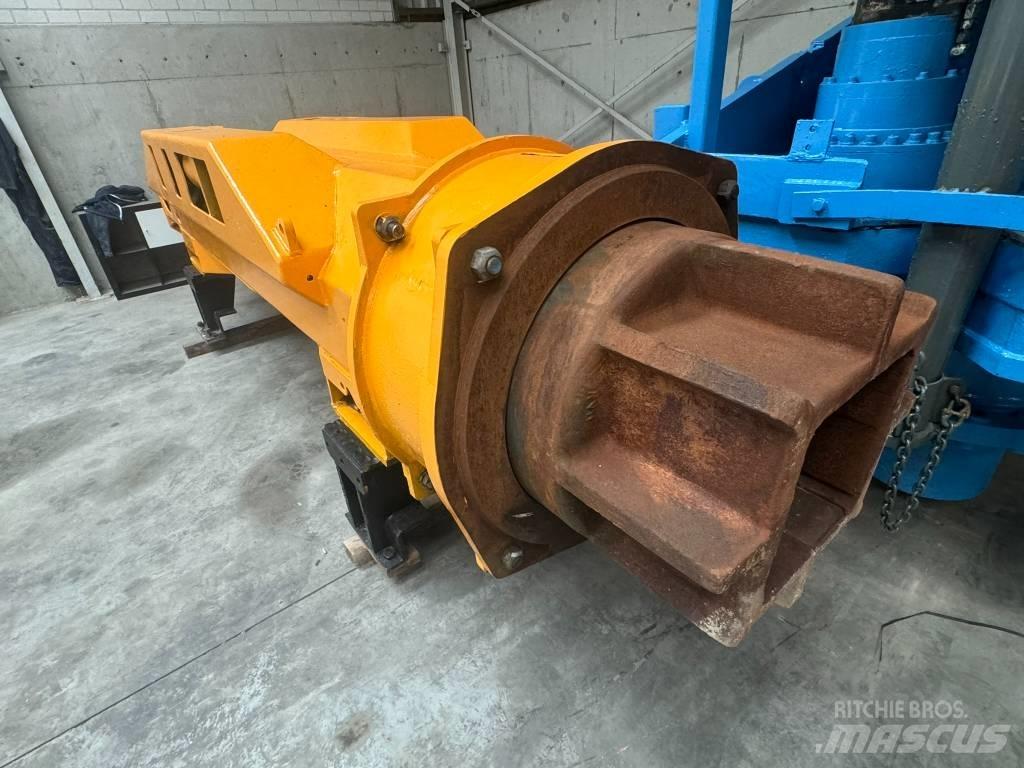

Leader guides for 720mm wide leader mast Hydraulic hose bundle Hoisting device for lifting the hammer Electronic cable Control box Drive cap for 30x30cm precast pile No manifold included
기타 정보
The BSP HH 6LH is a hydraulic impact hammer which was especially designed for leader guided pile driving. The hammer has a very smart design which makes it short and therefor makes it suitable to drive longer piles than with most other hammers. This hammer is suitable to be used with the drive cap system of van Hattem. It can be used to drive steel tubes but the hammer is also suitable for driving precast concrete piles. Specifications: Max. energy 71 kNm Max. stroke 1200 mm Length is 5500 mm Max. blow rate at 1.200mm stroke is 40 blows/min. Max. oil flow 180 ltr/min Max. pressure: 250 bar Operational weight 8500 kg더 보기

Foundiz

Kroonstraat 1 4879 AV Etten-Leur Noord-Brabant 네덜란드
