Maeda MC285CB-3

부가세 제외가격

Compnay LOGO
Images6Videos1

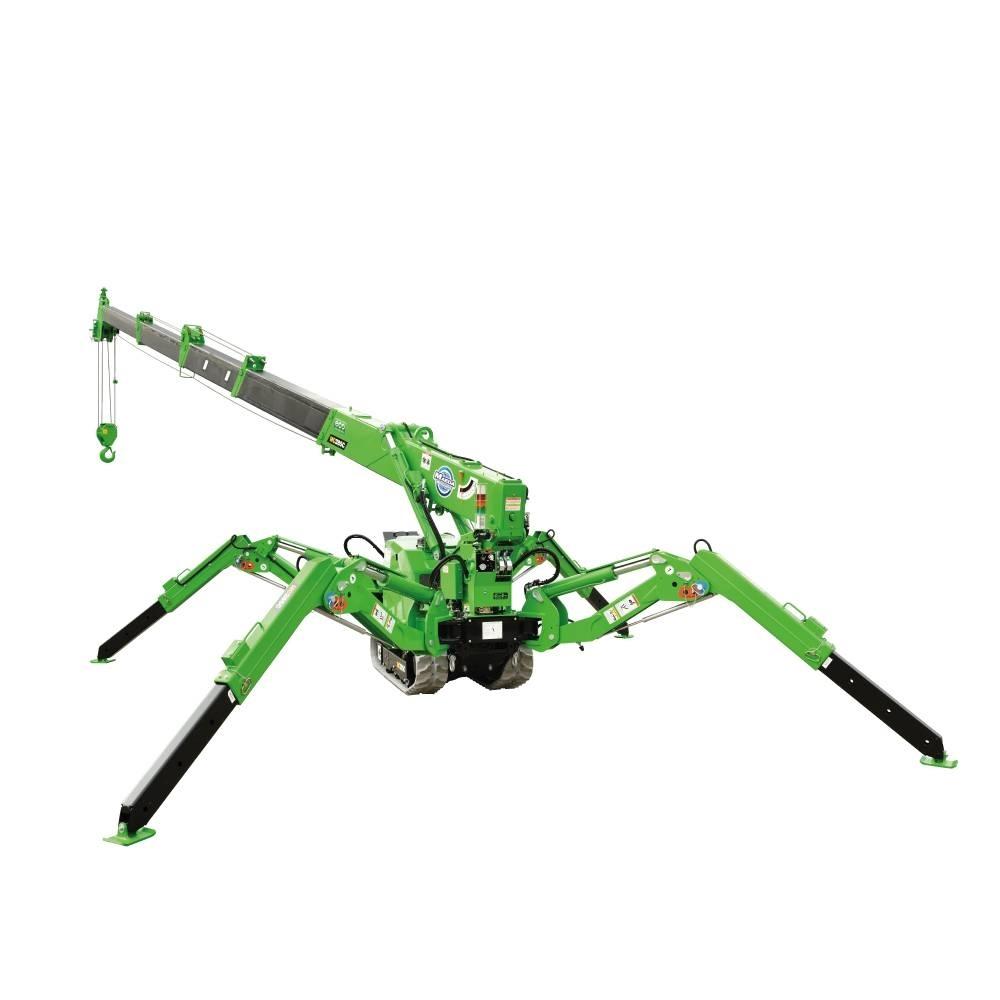

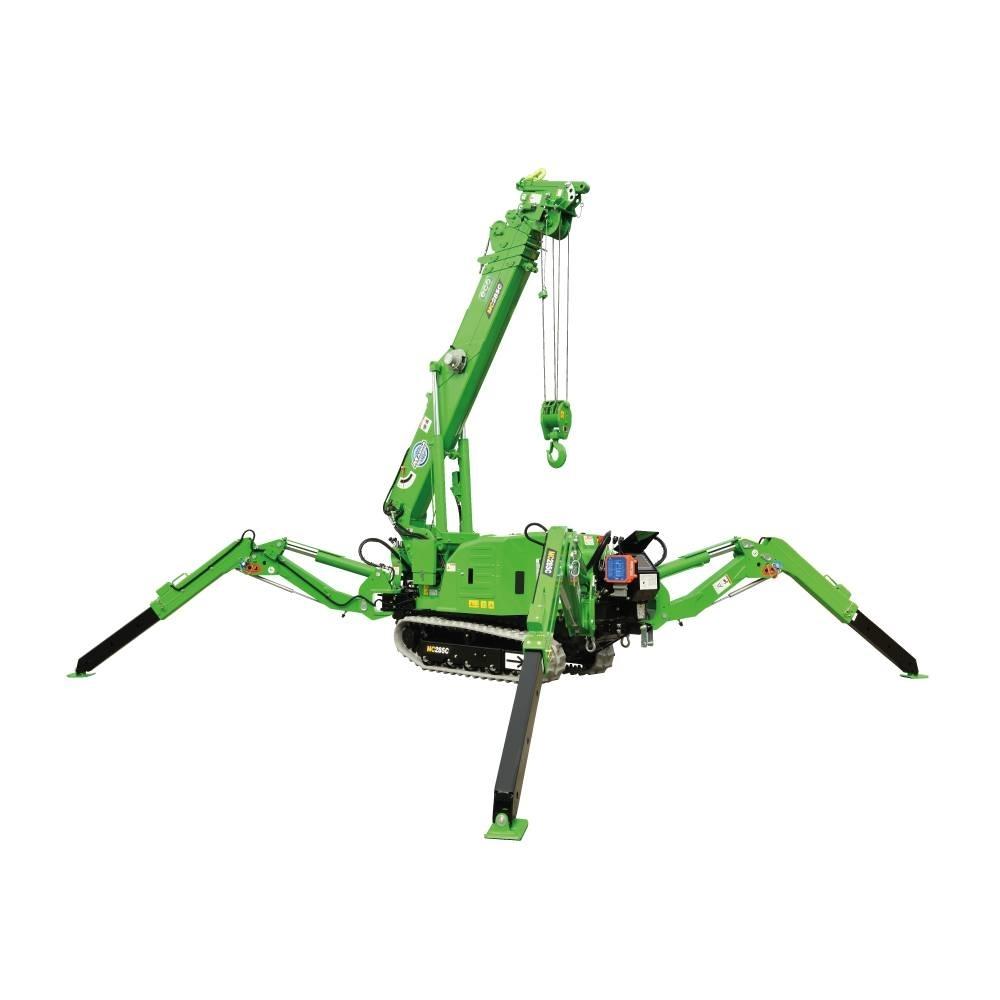

Maeda MC285CB-3 미니 크레인
Maeda MC285CB-3 미니 크레인
Favorite즐겨찾기
share공유
Save search검색 저장
출력

INFO

제품군
미니 크레인
제작사/모델
Maeda MC285CB-3
제작년도
2021
컨디션
새제품
장비위치
MÖLNLYCKE, Västra Götalands län
국가
스웨덴
일반 등급
1
2
3
4
5
마스쿠스 ID
CA2FBCA2

가격

화폐 선택

세부정보

서비스 내역 전체
예
총 중량
1995 kg
인양력
2820 kg
매연 등급
Stage V / Tier V
지브 끝 쪽의 최대 리프팅 용량
150 kg
엔진 제조사
Toshiba
인양 높이
870 cm
크레인 후크 높이 - 수평 지브
820500 cm
장비크기
2800 x 750 x 1470 mm
상태 정보/보증
Yes, 2 year
앞 타이어 잔존수명
100
뒷 타이어 잔존수명
100
제품 국가
일본
증명서
미국 환경 보호국(EPA), 유럽 위원회(CE), 미국 규격 협회(ANSI)
기타 정보
The MC285CB-3 is the very first fully electric powered mini crane from Maeda. With absolute zero emissions it can safely be used in sensitive indoor environments, and when regulations need to be achieved. Improved energy efficiency and productivity as well as reduced ventilation needs and maintenance costs are some of the benefits beyond the clear environmental aspect. With a lithium-ion battery, this crane can be operated continuously for over 9 hours, and be fully charged in only 3.5 hours. On top of that, continuous operation is possible while charging which facilitates use. The crane capacity and operating speeds have not been compromised since it equals the regular MC285C-3. The battery-operated MC285CB-3 has a maximum capacity of 2.82 ton x 1.4m. Maximum lifting height on the ground is 8.7m and the maximum working radius is 8.205m x 0.15t. All this is packed in this innovative piece of engineering that only weighs in at 1995kg. As always with products from Maeda we can expect the highest quality and reliability together with great guarantees. Crane Capacity – 2.82t x 1.4m Max. Working Radius – 8.205m x 0.15t Max. Lifting Height – 8.7m Max. Reach Below Ground – 10.1m (4 falls) / 40.4m (single fall) Max. Reach Below Ground (Aux Winch) – 100m (single fall) Outrigger Max. Extended Width – (Lat.) 4,782mm x (Fr.) 4,718mm x (Re.) 3,990mm Travel Speed – 0-2.0km/h Travel Ground Pressure – 50.2kpa (0.512kgf/cm2) Battery Type – Lithium Titanate Battery 5-hour rate capacity – DC55V – 135Ah Input Voltage / current – Single phase AC200V / 16A, AC100V / 15A Charging time (with AC-200V) – 80% : 2h 20min / 100% : 3h 30min Continuous operating time (crane) – 9h 30 min (based on Maeda’s assumed cycle) Charging during operation – Available Options – Black rubber tracks, Single fall hook, 850kg searcher hook. Dimensions – 2,800mm (L) x 750mm (W) x 1,470mm (H) Machine Weight – 1,995kg더 보기

Kranlyft Group

Fibervägen 1 43533 MÖLNLYCKE Västra Götalands län 스웨덴
