Maeda CC1908S-1

부가세 제외가격

POA

Compnay LOGO
Images4Videos1

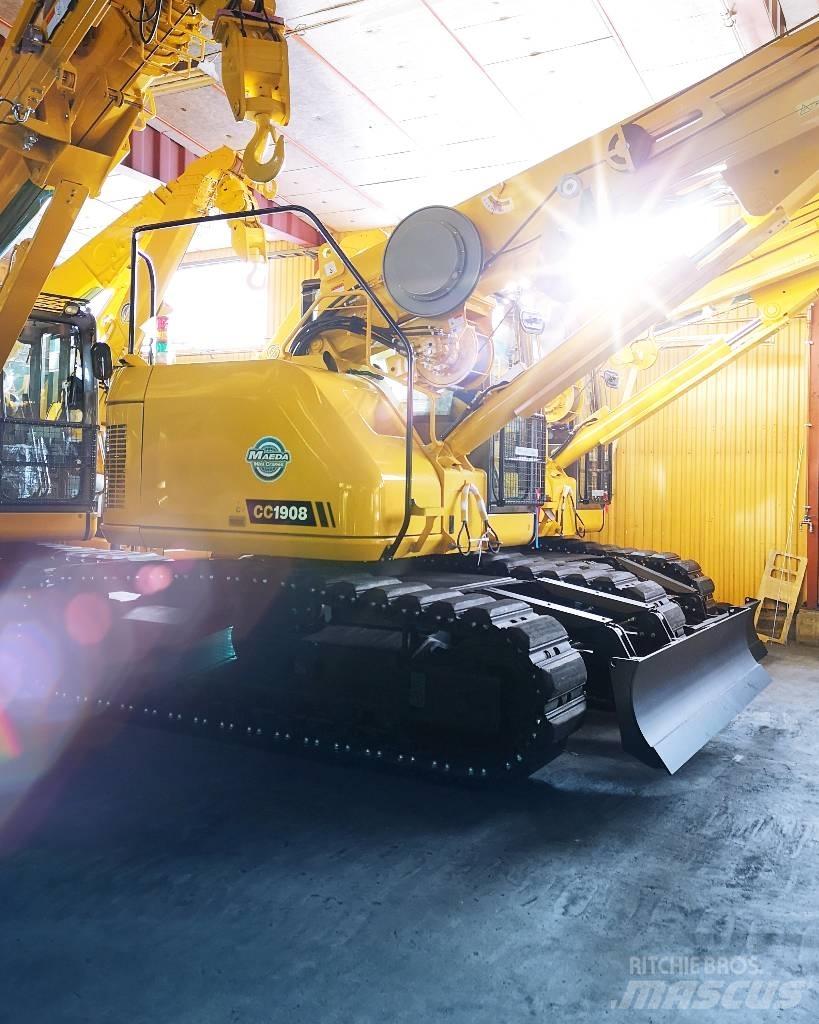

Maeda CC1908S-1 미니 크레인
Maeda CC1908S-1 미니 크레인
Favorite즐겨찾기
share공유
Save search검색 저장
출력

INFO

제품군
미니 크레인
제작사/모델
Maeda CC1908S-1
제작년도
2023
컨디션
새제품
장비위치
MÖLNLYCKE, Västra Götalands län
국가
스웨덴
일반 등급
1
2
3
4
5
마스쿠스 ID
3980835A

세부정보

총 중량
20350 kg
인양력
8100 kg
매연 등급
Stage V / Tier V
크레인 지브 길이
2010 cm
엔진 제조사
YANMAR
인양 높이
2010 cm
장비크기
7380 x 2490 x 3020 mm
상태 정보/보증
2 year
앞 타이어 잔존수명
100
뒷 타이어 잔존수명
100
제품 국가
일본
문서
Maeda-CC1908S-1-ENG-2020.pdf
기타 정보

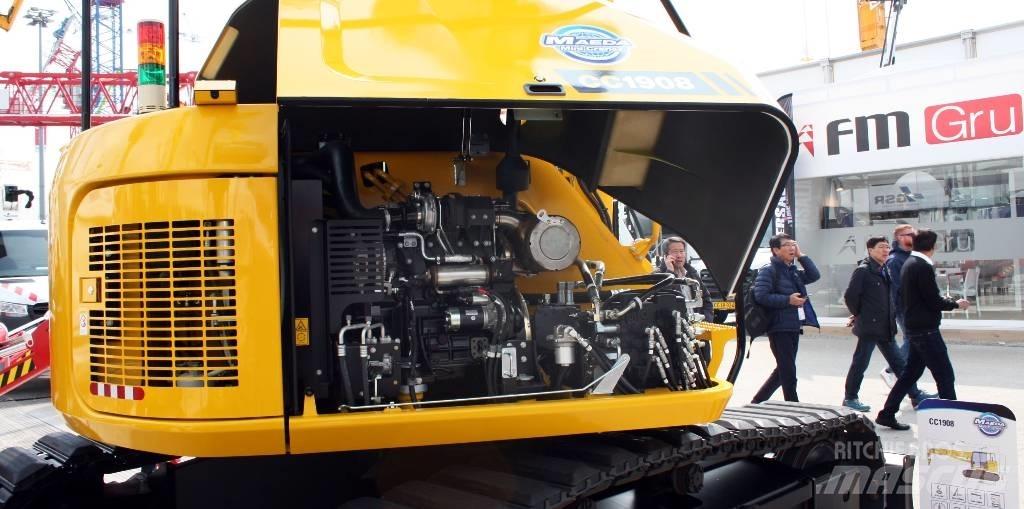

The CC1908 model boasts many market-leading qualities including a massive 8.1 ton lifting capacity, a 20.1m lifting height and 3.5 ton pick and carry capacity. Features of this model include a touchscreen 10.4″ monitor display, boom slew limit setting, 360° surround-view camera and monitor, wide view roof window and a sun shade and visor as standard. No outriggers mean an extremely slim working footprint and this model has a class-leading short tail swing and slew radius for work in restricted areas. In addition this environmentally-friendly machine is equipped with a Yanmar Diesel engine that is EU Stage V and EPA Final Tier 4 compliant making it more fuel efficient. Other highlights of this crane include a fully enclosed air-conditioned cab with link slide door, powerful two speed hi/lo winch, hydrostatic transmission, 6/4/2 fall hook block, tilt sensor/alarm, anti slack device and automatic heptagonal 5-section boom. Optional features are a 1.5 ton Hydraulic Fly Jib, a new 2 ton Searcher Hook and Blade. 8.1 ton Max Capacity 20.1m Max Working Height (26m with Optional Fly Jib Attachment) 3500kg Pick & Carry Duty 10.4 inch Multi Monitor Powerful Two Speed Winch with Hydraulic Disc Brake 360 degrees slew angle Slew Restriction Device Hydrostatic Transmission 6 Fall / 4 Fall / 2 Fall Hook Block Tilt Sensor/Alarm 360° Surround-View Camera Automatic Pentagonal 5-Section Boom Data Logger 2 Year Warranty더 보기

Kranlyft Group

Fibervägen 1 43533 MÖLNLYCKE Västra Götalands län 스웨덴
