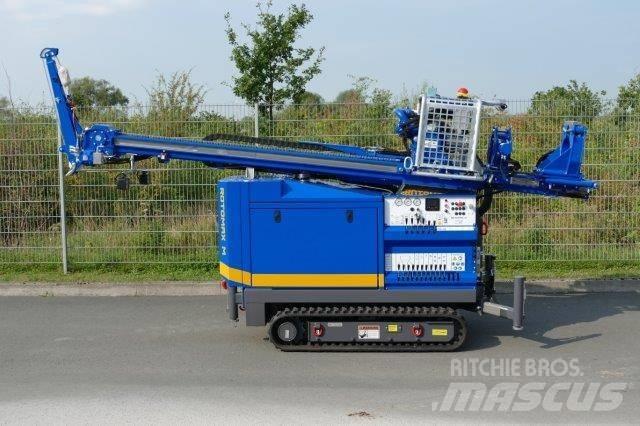

Geotec ROTOMAX M

Name: Geotec ROTOMAX M
Brand: Geotec
SKU: 4B7FFF6E
Availability: InStock

부가세 제외가격

POA

즐겨찾기

검색 저장

출력

INFO

제품군

우물 굴착기

제작사/모델

Geotec ROTOMAX M

제작년도

2022

컨디션

새제품

장비위치

Nordkirchen

국가

독일

일반 등급

마스쿠스 ID

4B7FFF6E

세부정보

서비스 내역 전체

예

엔진

44kW

엔진 제조사

PERKINS

드릴 제작사

Geotec

매연 등급

Stage V / Tier V

냉각 장치

물

피드 메커니즘

원통형

로드 핸들러 제작사

GEOTEC

구멍 반지름

"115-203 mm 4 1/2""-8""

트랙 제작사

GEOTEC

로드/파이프 반경

"140 mm 5 1/2"""

캐리어 유형

궤도식

상태 정보/보증

1000 Motogodzin - 1 rok

운반 중량

3000 kg

장비크기

4970 x 1200 x 2150 mm

증명서

TUV

기타 정보

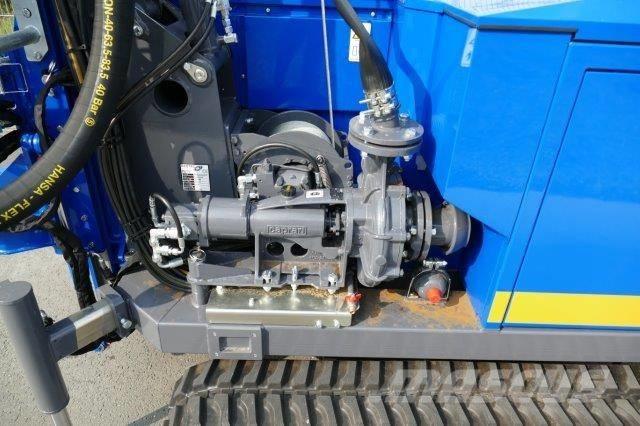

Base frame: Sandwich main base frame with integrated fuel / hydraulic oil tank for about 70 l diesel and about 150 l hydraulic oil (HLP 46) 4 pieces hydraulic cylinder for alignment of the machine; rubber crawler track with 250 mm as ridgid undercarriage 1200 mm. Note: Undercarriage with extendable track against surcharge. Drive unit: 4-cylinder diesel engine 50 kw / 68 hp, water cooled with direct drive axial piston pump, oil cooler, oil supply / return line filters, sound cannon, emission standard according to EU Directive EU Stufe V / US EPA Tier 4 Basic hydraulic system: Single circuit load sensing system, proportional, directly or by remote control. Maximum pump capacity 105 l at 2400 U / min, max. System pressure: 190 bar 3 manometer, (system pressure, mud pressure, pull down) Mast Standard: Feeding slide out in track rollers, with release plate to accommodate different power swivel; Movement length: see drawing; pull up – pull down force 4000 kg; pull down pressure throttled to about 1000 kg so that it can not liftig the maschine mast side. Hand control functions "main group" Power swivel; feed; mud pump; winch; crawler track right; crawler track left, a total of 6 valves depending on the equipment Crawler track control via cable remote control, drilling operation manually via control valves. Note: Drilling operation alternative with cable remote control for against surcharge Hand control function "auxiliary function" Supports clinder up / down; crawler track with sliding; Mast erection; Mast extension; power swivel tillt; bracing clamp (casing); drill pipe Press / pul upl clamp a total of 10 valves depending on the equipment Mast-sided support: Support cylinder of 850 mm to 1400 mm telescopic to increase the stability of the rig during the drilling operation Power swivel to direct flush drilling: hydraulic switchable 3-speed gearbox with directly flow passage, torque Nm 4400/2200/1100; rotation speed 0-50 / 0-100 / 0-200 rpm; mud pressure 25 bar and tilt device to 65 ° Power swivel folding and power swivel tilting device: Manual unfold for pipe diameter 219 mm Swivel mechanism of the power swivel incl. check valve, lowering brake valve and control valves. Swing-out angle with mud goseneck 65 ° Note: Hydraulic sideshift against surcharge. Flood lights on mast head 2 pluggable headlamp mounted Incl. cable and electric Training for 2-3 members for customer’s staff at our site in Nordkichen for 2 days (travel expensens not included)더 보기

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen 독일
