커민스 QSB6.7-C220

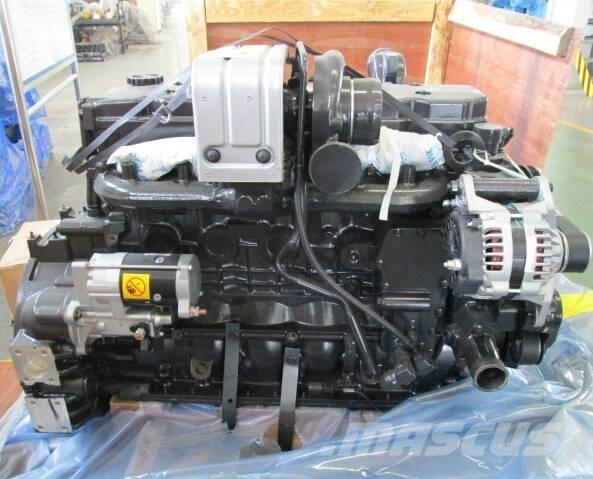

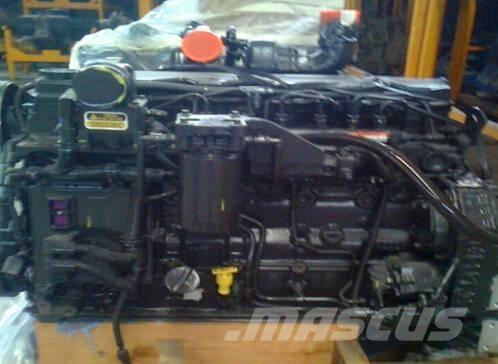

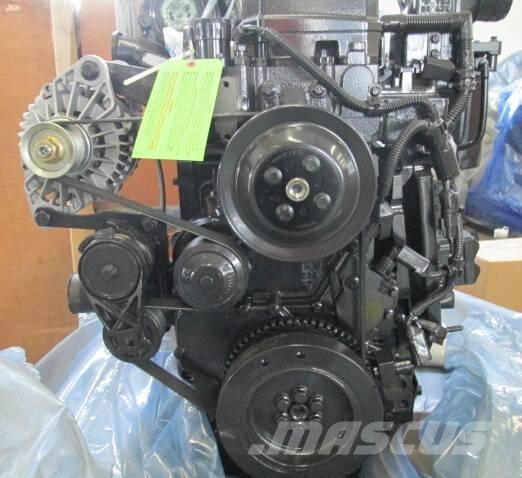

Cummins QSB6.7-C220 Diesel Engine for Industrial General Information of Cummins QSB6.7-C220 Diesel Engine for Industrial Engine Model QSB6.7-C220 Engine Type 6 Cylinders in Line Displacement 6.7 L Bore*Stroke(mm) 107 * 124 Compression Ratio 17.3:1 CPL Number 43862 Net Weight (with flywleel & alternator) 520 Kg Overall Diemension(L*W*H) 1111mm*716mm*960mm Technical Specification of Cummins QSB6.7-C220 Diesel Engine for Industrial Certification Euro III Aspiration Turbocharged & Intercooled Fuel System Wuxi weihu Pump Electrical System(Starter Motor/Alternator) 12V/500A; 24V/250A Lowest Starting Temp.(with/without auxiliary system) -12℃/-24℃ Engine Cooling Fluid Volume 7.0 L Performance Data of Cummins QSB6.7-C220 Diesel Engine for Industrial Rated Power/Speed 164kW/220HP / 2000rpm Max.Torque/Speed 949 N.m/1500 rpm Fuel Consumption/ Rated Power 29 l/hr Idel Speed 750 rpm Max. Continuous Running Altitude 2000 m
