커민스 NTA855-P360
부가세 제외가격
출력
INFO
제품군
엔진
제작사/모델
커민스 NTA855-P360
제작년도
2018
컨디션
새제품
장비위치
Jining, Shandong, China
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
31F03B9F
가격
화폐 선택
세부정보
재고번호
NTA855-P360
최근검사
yes
엔진 출력
269 kW (366 마력)
부품 ID
NTA855-P360
서비스 내역 전체
예
제조번호
NTA855-P360
운반 중량
1400 kg
장비크기
1700 x 1100 x 1900 mm
RPM
2100
매연 등급
Stage II / Tier II
상태 정보/보증
ISO9001
제품 국가
중국
운송 조건
FCA, CPT, FOB, CFR, CIF, EXW
기타 정보

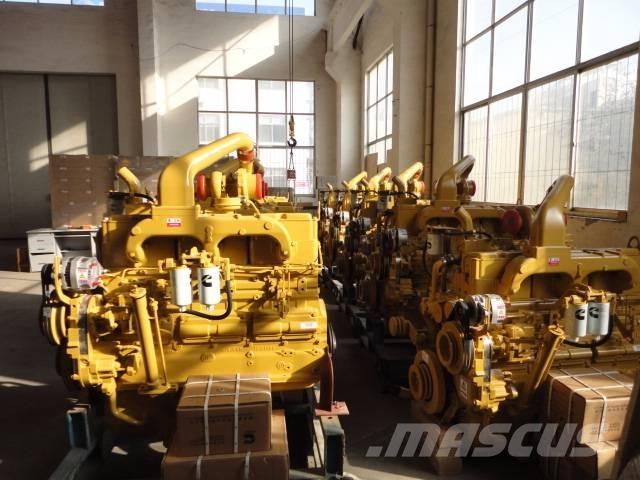

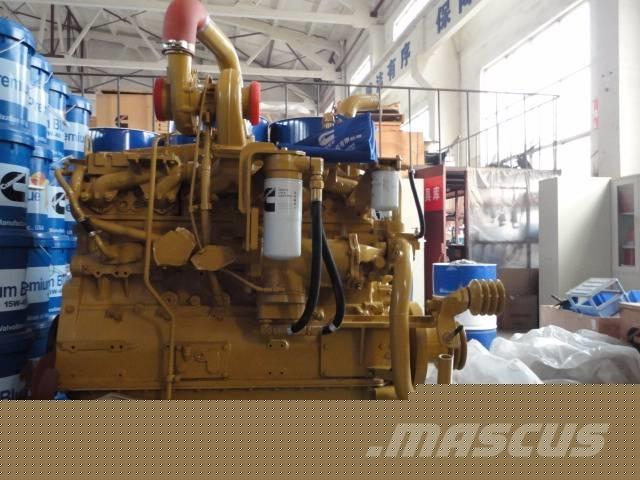

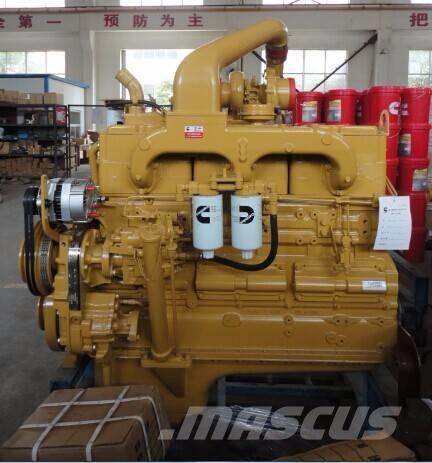

Cummins NTA855-P360 Industrial Diesel Engine
General Information of Cummins NTA855-P360 Industrial Diesel Engine
Engine Model NTA855-P360
Engine Type 6 Cylinders, in Line
Displacement 14 L
Bore*Stroke(mm) 140*152
Compression Ratio 14 : 1
Net Weight (with flywleel & alternator) 1345Kg
Overall Diemension(L*W*H) 1389mm*914mm*1298mm
Technical Specification of Cummins NTA855-P360 Industrial Diesel Engine
Certification Euro Ⅱ
Aspiration Turbocharged-Intercooled
Fuel System Direct Injection Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Cooling Method Water Cooled
Performance Data of Cummins NTA855-P360 Industrial Diesel Engine
Rated Power 269 KW(360HP)
Rated Speed 1800 rpm
Max.Torque/Speed 1536 N.m @ 1300 rpm
Fuel Consumption 206 g/Kw.h
Max. Continuous Running Altitude 2000 m
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 중국
