커민스 NTA855-M380

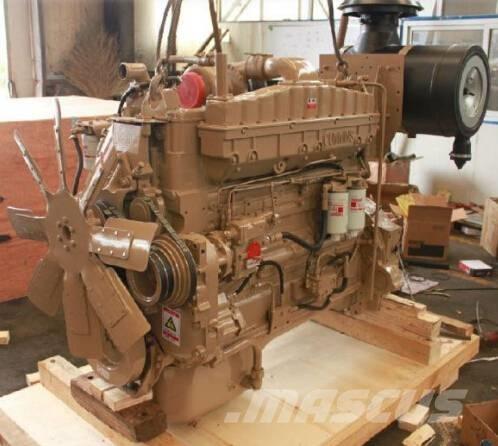

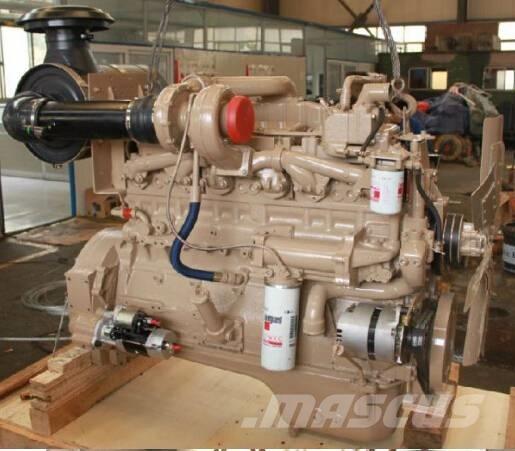

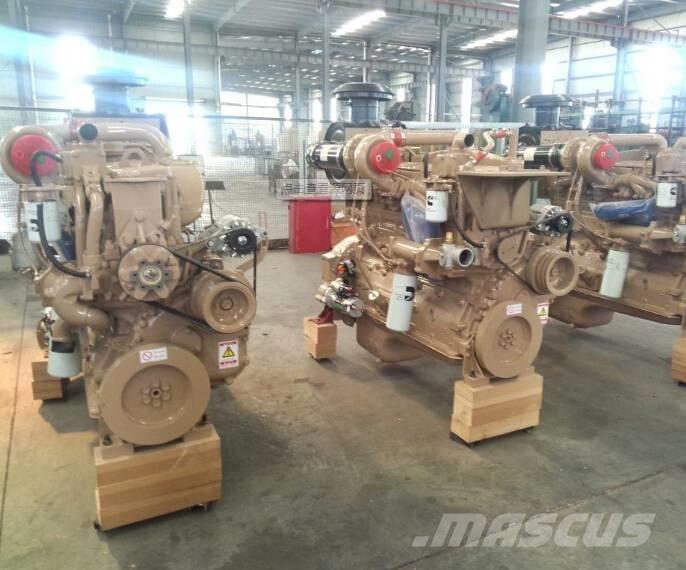

Cummins NTA855-M380 Marine Propulsion Diesel Engine General Information of Cummins NTA855-M380 Marine Propulsion Diesel Engine Engine Model NTA855-M380 Engine Type 6 Cylinders in Line Displacement 14 L Bore*Stroke(mm) 140 * 152 CPL Number 0700 Net Weight (with flywleel & alternator) 1303 Kg Overall Diemension(L*W*H) 1809mm*881mm*1598mm Technical Specification of Cummins NTA855-M380 Marine Propulsion Diesel Engine Marine Certification CCS Aspiration Turbocharged & Inter-cooled Fuel System PT Pump Electrical System(Starter Motor/Alternator) 12V/24V Standard Thermostat Operating Range (Open) 180 °C Standard Thermostat Operating Range (Full Open) 201 °C Performance Data of Cummins NT855-M380 Marine Propulsion Diesel Engine Rated Power/Speed 283 kW/350HP @ 1800rpm Fuel Consumption @ Rated Power 66 l/hr Compression Ratio 14.5:1 Rating Type Continuous Idel Speed 575±675 rpm
