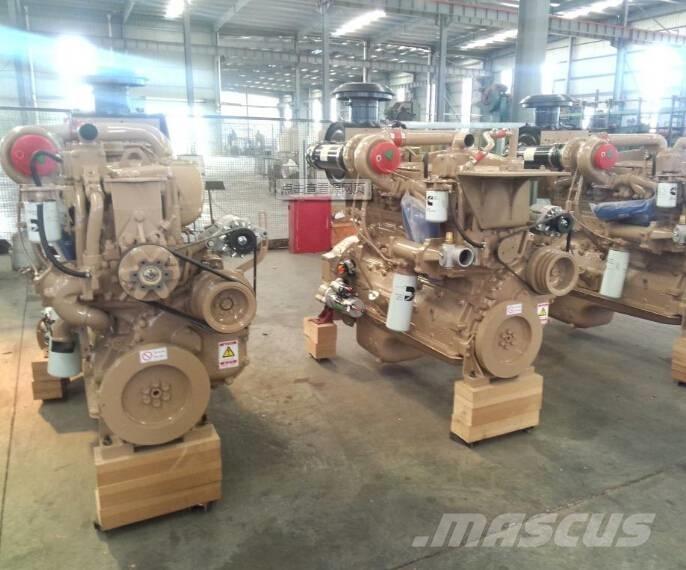

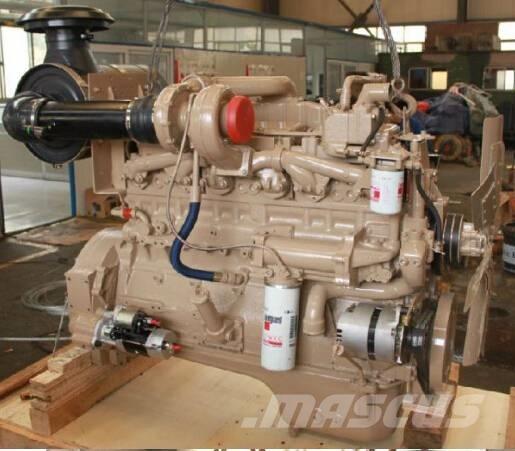

커민스 NTA855-G4(M)

Cummins NTA855-G4(M) Marine G-Drive Diesel Engine General Information of Cummins NTA855-G4(M) Marine G-Drive Diesel Engine Engine Model NTA855-G4(M) Engine Type 6 Cylinders in Line Displacement 14 L Bore*Stroke(mm) 140 * 152 CPL Number CQ126 Net Weight (with Heatexchange) 1420 Kg Overall Diemension(L*W*H) 1460mm*950mm*1300mm Technical Specification of Cummins NTA855-G4(M) Marine G-Drive Diesel Engine Marine Certification CCS/IMO Aspiration Turbocharged & Inter-Cooled Fuel System PT Pump Electrical System(Starter Motor/Alternator) 12V/24V Rated HP Production Tolerance ±2% Fuel Rail Pressure 1605KPa Performance Data of Cummins NTA855-G4(M) Marine G-Drive Diesel Engine Rated Power/Speed 317 kW/425HP @ 1500rpm Standby Power/Speed 351 kW/470HP @ 1500rpm Fuel Consumption @ Rated Power 210g/Kw.h Fuel Consumption @ Standby Power 209g/Kw.h Idel Speed 575~650 rpm
