커민스 L270 30

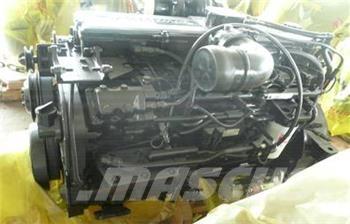

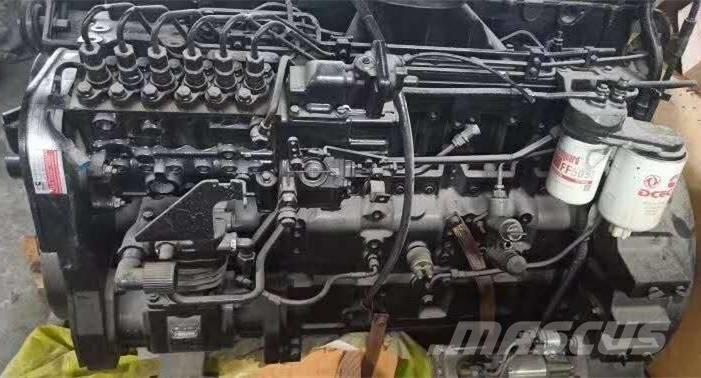

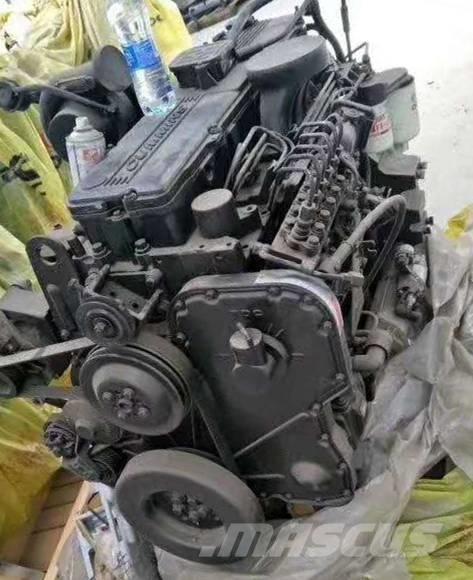

Cummins L270 30 Diesel Engine for Vehicle General Information of Cummins L270 30 Diesel Engine for Vehicle Engine Model L270 30 Engine Type 6 Cylinders, in Line Displacement 8.9 L Bore*Stroke(mm) 114 * 145 Compression Ratio 16.6 : 1 Net Weight (with flywleel & alternator) 680 Kg Overall Diemension(L*W*H) 1149mm*799mm*1022mm Technical Specification of Cummins L270 30 Diesel Engine for Vehicle Certification Euro Ⅲ Aspiration Turbocharged & Inter-cooled Fuel System Direct Injection Pump Electrical System(Starter Motor/Alternator) 24V/750A Lowest Starting Temp.(with/without auxiliary system) -10℃/-25℃ Engine Cooling Fluid Volume 11.1 L Performance Data of Cummins L270 30 Diesel Engine for Vehicle Rated Power/Speed 199kW/270HP @ 2200rpm Max.Torque/Speed 1150N.m @ 1400 rpm Fuel Consumption @ Rated Power 215 g/kW.h Idel Speed 700±100 rpm Max. Continuous Running Altitude 2000 m
