커민스 KTA38-P980
부가세 제외가격
출력
INFO
제품군
엔진
제작사/모델
커민스 KTA38-P980
제작년도
2018
컨디션
새제품
장비위치
Jining, Shandong, China
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
4955D831
가격
화폐 선택
세부정보
재고번호
KTA38-P980
최근검사
yes
엔진 출력
731 kW (994 마력)
부품 ID
KTA38-P980
서비스 내역 전체
예
제조번호
KTA38-P980
운반 중량
3670 kg
장비크기
2300 x 1700 x 2000 mm
RPM
1500
매연 등급
Stage II / Tier II
상태 정보/보증
ISO9001
제품 국가
중국
운송 조건
FOB, CFR, CIF, EXW
기타 정보

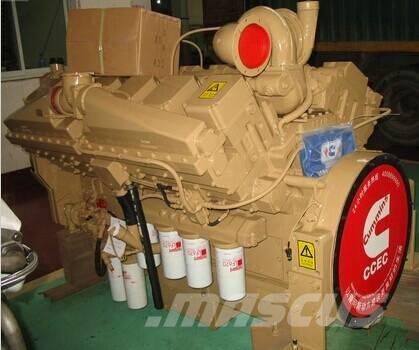

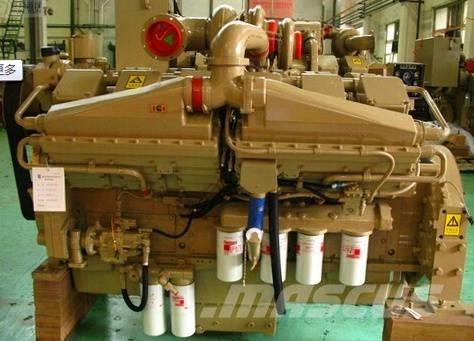

Cummins KTA38-P980 Industrial Diesel Engine
General Information of Cummins KTA38-P980 Industrial Diesel Engine
Engine Model KTA38-P980
Engine Type 12 Cylinders, V Type
Displacement 38 L
Bore*Stroke(mm) 159*159
Compression Ratio 13.9 : 1
Net Weight (with flywleel & alternator) 3606 Kg
Overall Diemension(L*W*H) 2003mm*1362mm*1661mm
Technical Specification of Cummins KTA38-P980 Industrial Diesel Engine
Certification Euro Ⅱ
Aspiration Turbocharged-Intercooled
Fuel System Direct Injection Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Cooling Method Intercooled
Performance Data of Cummins KTA38-P980 Industrial Diesel Engine
Max Power 731 kW(980 HP)
Max Speed 1500 rpm
Max.Torque/Speed 6293 N.m @1500 rpm
Fuel Consumption 203 g/Kw.h
Max. Continuous Running Altitude 2000 m
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 중국
