커민스 KTA38-M1100
부가세 제외가격
POA
출력
INFO
제품군
엔진
제작사/모델
커민스 KTA38-M1100
제작년도
2018
컨디션
새제품
장비위치
Jining, Shandong, China
국가
중국
일반 등급
마스쿠스 ID
0710F16C
세부정보
재고번호
KTA38-M1100
최근검사
yes
엔진 출력
820 kW (1115 마력)
부품 ID
KTA38-M1100
서비스 내역 전체
예
제조번호
KTA38-M1100
운반 중량
3800 kg
장비크기
2000 x 1200 x 2000 mm
RPM
1800
매연 등급
Stage II / Tier II
상태 정보/보증
ISO9001
제품 국가
중국
운송 조건
FCA, CPT, FOB, CFR, CIF, EXW
기타 정보

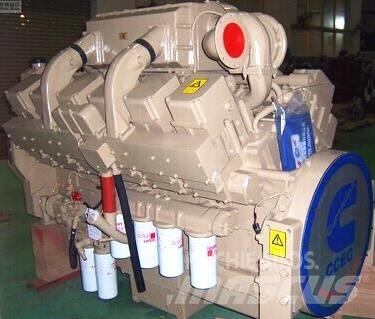

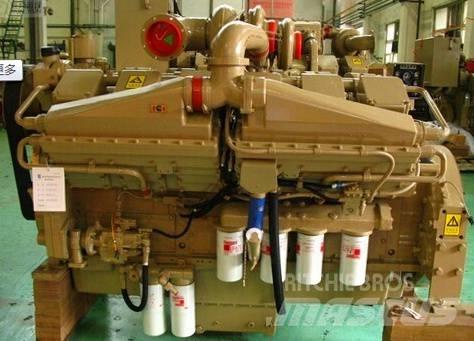

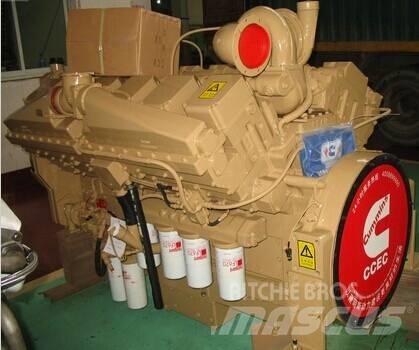

Cummins KTA38-M1100 Marine Propulsion Diesel Engine
General Information of Cummins KTA38-M1100 Marine Propulsion Diesel Engine
Engine Model KTA38-M1100
Engine Type 12 Cylinders in Line
Displacement 38 L
Bore*Stroke(mm) 159 * 159
CPL Number 2163
Net Weight (Engine only) 4218 Kg
Overall Diemension(L*W*H) 2003mm*1362mm*1661mm
Technical Specification of Cummins KTA38-M1100 Marine Propulsion Diesel Engine
Marine Certification CCS/IMO
Aspiration Turbocharged & Water-Air Inter-Cooled
Fuel System PT Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Rated HP Production Tolerance ±2%
Fuel Rail pressure 1047
Performance Data of Cummins KTA38-M1100 Marine Propulsion Diesel Engine
Rated Power/Speed 820 kW/1100HP @ 1800rpm
Fuel Consumption @ Rated Power 220g/Kw.h
Fuel Consumption @ Standby Power 216g/Kw.h
Idel Speed 725~775 rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 중국
