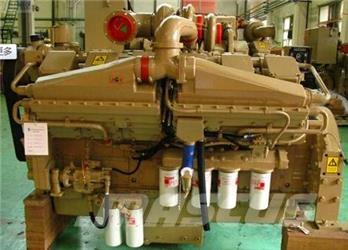

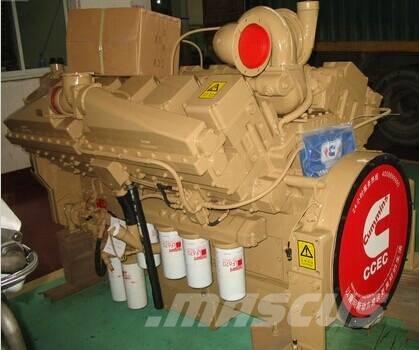

커민스 KT38-M600

Cummins KTA19-D(M)600 Marine G-Drive Diesel Engine General Information of Cummins KTA19-D(M)600 Marine G-Drive Diesel Engine Engine Model KTA19-D(M)600 Engine Type 6 Cylinders in Line Displacement 19 L Bore*Stroke(mm) 159 * 159 CPL Number CQ412 Net Weight (Engine only) 1814 Kg Overall Diemension(L*W*H) 1666mm*874mm*1377mm     Technical Specification of Cummins KTA19-D(M)600 Marine G-Drive Diesel Engine Marine Certification CCS/IMO Aspiration Turbocharged & Intercooled Fuel System PT Pump Electrical System(Starter Motor/Alternator) 12V/24V Rated HP Production Tolerance ±2% Fuel Rail pressure 779     Performance Data of Cummins KTA19-D(M)600 Marine G-Drive Diesel Engine Rated Power/Speed 463 kW/620HP @ 1500rpm Standby Power/Speed 504 kW/675HP @ 1500rpm Fuel Consumption @ Rated Power 213g/Kw.h Fuel Consumption @ Standby Power 209g/Kw.h Idel Speed 625~700rpm
