커민스 ISMe340

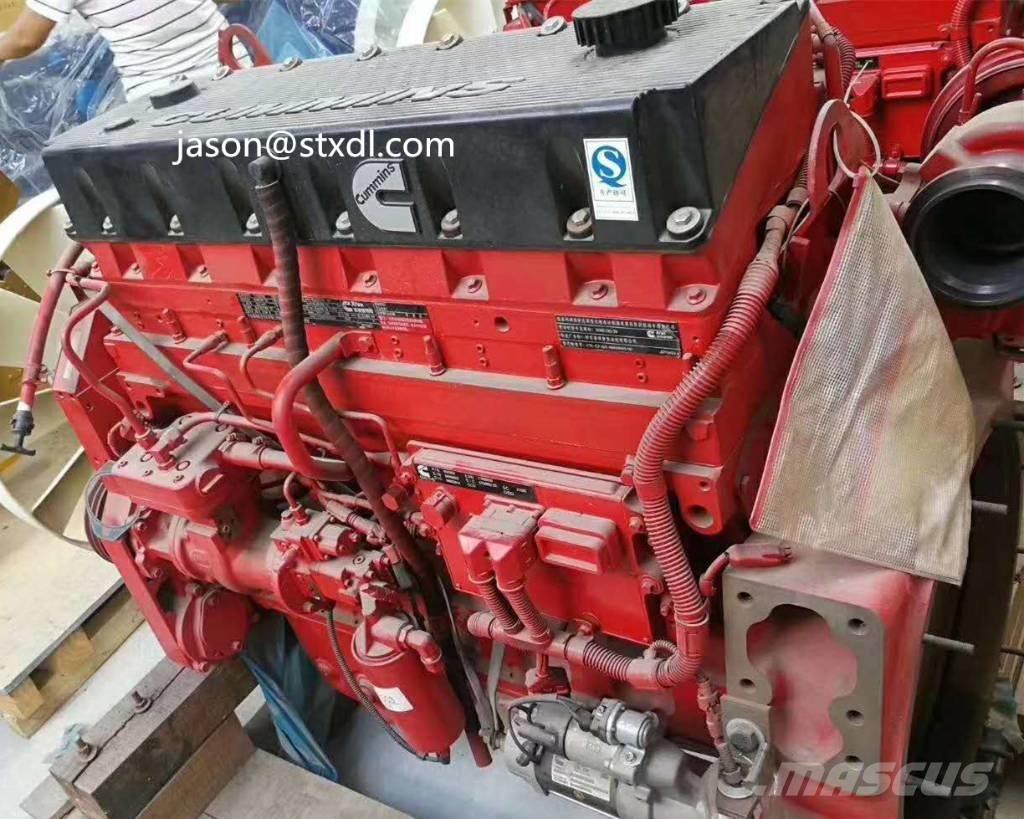

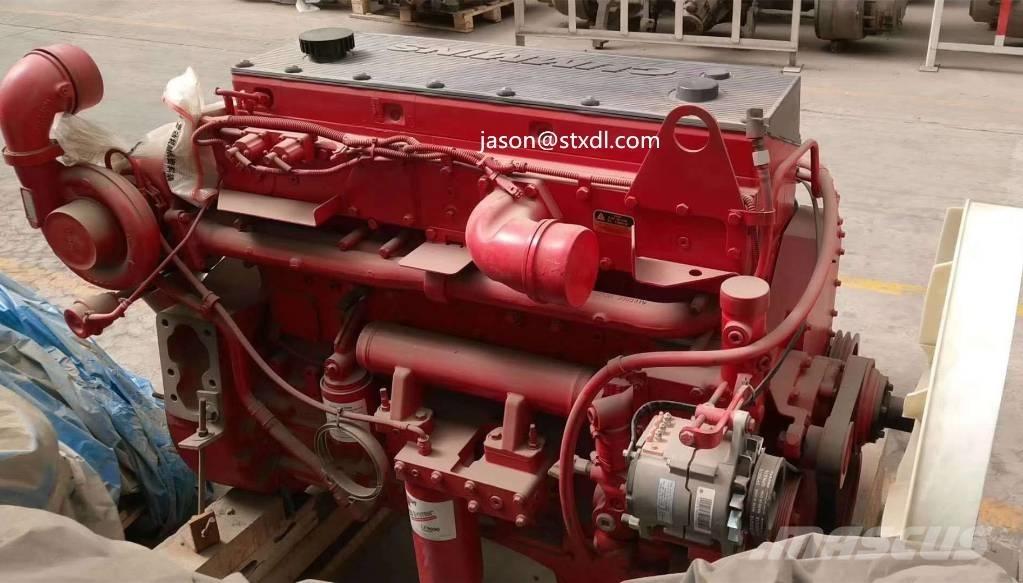

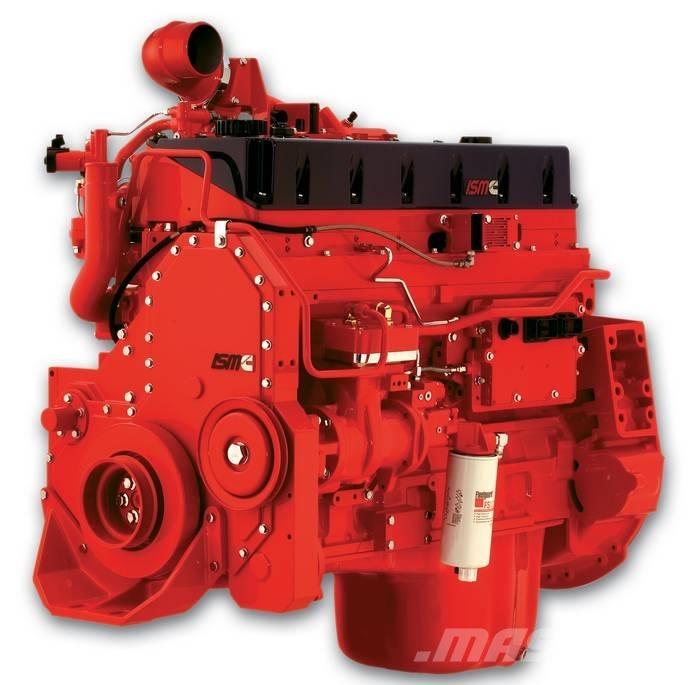

Cummins ISME340 Diesel Engine for Vehicle General Information of Cummins ISME340 Diesel Engine for Vehicle Engine Model ISME340 Engine Type 6 Cylinders, in Line Displacement 10.8 L Bore*Stroke(mm) 125 * 147 Compression Ratio 16.2:1 CPL Number - Net Weight (with flywleel & alternator) 940 Kg Overall Diemension(L*W*H) 1335mm*825mm*1159mm Technical Specification of Cummins ISME340 Diesel Engine for Vehicle Certification Euro II, III, VI or V Aspiration Turbocharged & Intercooled Fuel System Direct Injection Pump Starting Method Electric Start Cooling Method Water Cooled Ignition Sequence 1-5-3-6-2-4 Performance Data of Cummins ISME340 Diesel Engine for Vehicle Rated Power/Speed 250kW/340HP @ 1900rpm Max.Torque/Speed 1669 N.m @ 1200 rpm Fuel Consumption @ Rated Power - Idel Speed 600~800 rpm Overhaul Mileage Over 1,000,000 kilometers
